Trail Gear Rock Defense Front Bumper – 303941-1-KIT

Trail Gear

Shop Trail Gear Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear Rock Defense front bumper for the Land Cruiser FJ80, bare steel, 303941-1-KIT
  • 1020 DOM tubing (1.75″ X .120 wall) with a .25 CNC formed steel plate winch mount
  • Winch plate drilled for most 5000-9500 model low-profile winches
  • Not rated for towing

Description

Overview

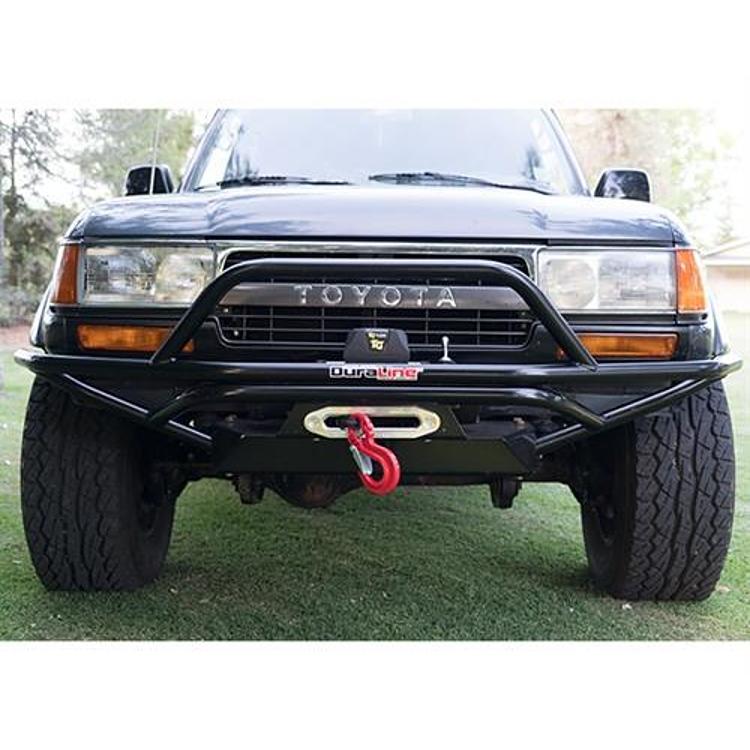

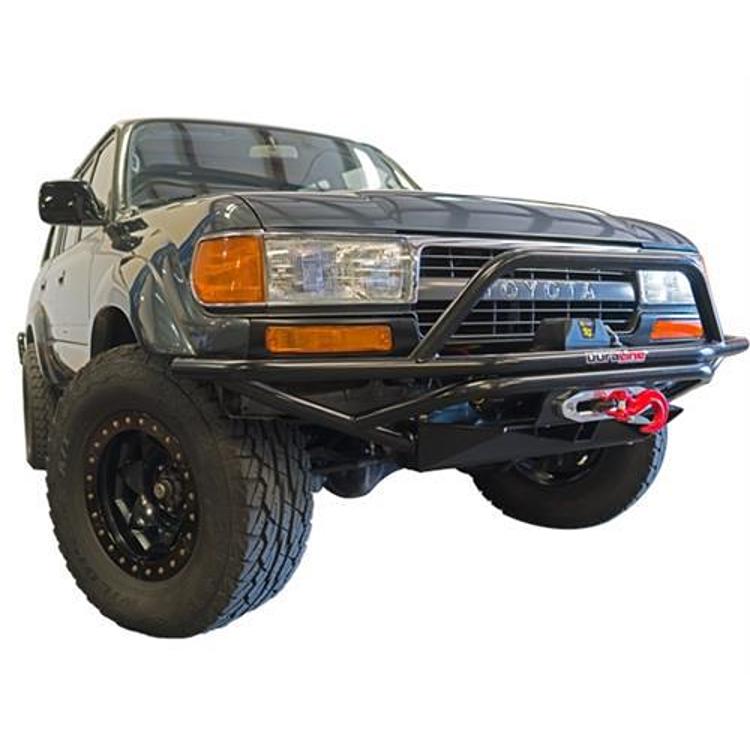

The Trail Gear Rock Defense 303941-1-KIT is a front bumper for the Toyota Land Cruiser FJ80, supplied in bare steel. Trail-Gear builds it from 1020 DOM tubing (1.75″ X .120 wall) with a .25 CNC formed steel plate winch mount.

Trail-Gear says 1020 DOM is more dent resistant than HREW tubing and does not split along the seam. The winch plate is drilled for most 5000-9500 model low-profile winches and the smaller 9.0R Warn competition winches. Larger winches may need minor trimming of the grill, and a shackle receiver mount gives a recovery anchor point. The bumper is not rated for towing.

Key features

  • 1020 DOM tubing, 1.75″ X .120 wall
  • .25 CNC formed steel plate winch mount
  • Winch plate drilled for 5000-9500 model low-profile winches and 9.0R Warn competition winches
  • Shackle receiver mount for winch or strap recoveries
  • Bare steel finish
  • Built for the Land Cruiser FJ80

Painting and protection

Bare steel bumpers need a finish before they see trail use. Clean all welds and seams, remove mill scale and oil, then apply a rust-inhibiting primer followed by paint or powder coat. Pay attention to the inside of tubing and the winch plate edges, since moisture collects there and rust often starts in those spots.

Recovery gear should match the bumper’s mounts. Check that the shackle receiver and winch plate are tight after each season of use, and inspect welds for cracks after any hard impact. Use a winch and fairlead rated for your vehicle’s weight, and check the cable and hook regularly.

  • Prime and seal welds soon after fitting
  • Inspect the winch plate bolts after rough trails
  • Keep the shackle receiver for recovery use only

Specifications

Brand Trail Gear
Part number 303941-1-KIT
UPC 700007890871
Type Rock Defense front bumper
Vehicle named Land Cruiser FJ80
Tubing 1020 DOM, 1.75″ X .120 wall
Winch mount .25 CNC formed steel plate
Finish Bare steel
Winch plate Drilled for 5000-9500 low-profile winches and 9.0R Warn competition winches
Towing Not rated

Vehicle fitment

This bumper is built for the Land Cruiser FJ80. Confirm your vehicle’s model year and trim before ordering.

It is built for the FJ80 only, so other Land Cruiser generations need a different bumper. Confirm your model year and trim before ordering.

Installation notes

Larger winches than the drilled patterns cover may need minor trimming of the grill. The bumper is bare steel and needs paint or powder coat for protection. Do not use the shackle receiver as a towing point, since the bumper is not rated for towing.

What’s included

  • Front bumper with winch mount
  • Shackle receiver mount

Not included: a winch and fairlead.

SKU: TGI303941-1-KIT Category:

Specification

Shipping weight 86.00 lbs
Package dimensions 73.00 × 20.00 × 14.00 in
brands

Questions & Answers

Is the 303941-1-KIT made for the Land Cruiser FJ80?

Yes. This bumper is built for the Land Cruiser FJ80. Confirm the model year and trim of your truck before installing, since the fit depends on your specific vehicle.

What winches fit the 303941-1-KIT?

The winch plate is drilled for most 5000-9500 model low-profile winches and smaller 9.0R Warn competition winches. Larger winches may need minor grill trimming.

Can I tow with the 303941-1-KIT?

No. The bumper is not rated for towing, so do not use it as a tow point. The shackle receiver mount is an anchor point for winch or strap recoveries and is intended for that use.

What is the bumper made of?

Trail-Gear builds it from 1020 DOM tubing, 1.75" X .120 wall, with a .25 CNC formed steel plate winch mount, and supplies it in bare steel.

Can a stubby bumper be used with a winch of any size?

Not always. The winch plate is drilled for specific low-profile patterns, so check that your winch's mounting pattern matches before buying. Larger winches may need trimming of the grill, and that work should be planned before installation.

Is the shackle receiver mount the same as a tow hitch?

No. A shackle receiver is a recovery anchor point for winch or strap work, not a towing point. The bumper is not rated for towing, so use the receiver only for recovery loads and avoid pulling a trailer with it.
