Overview

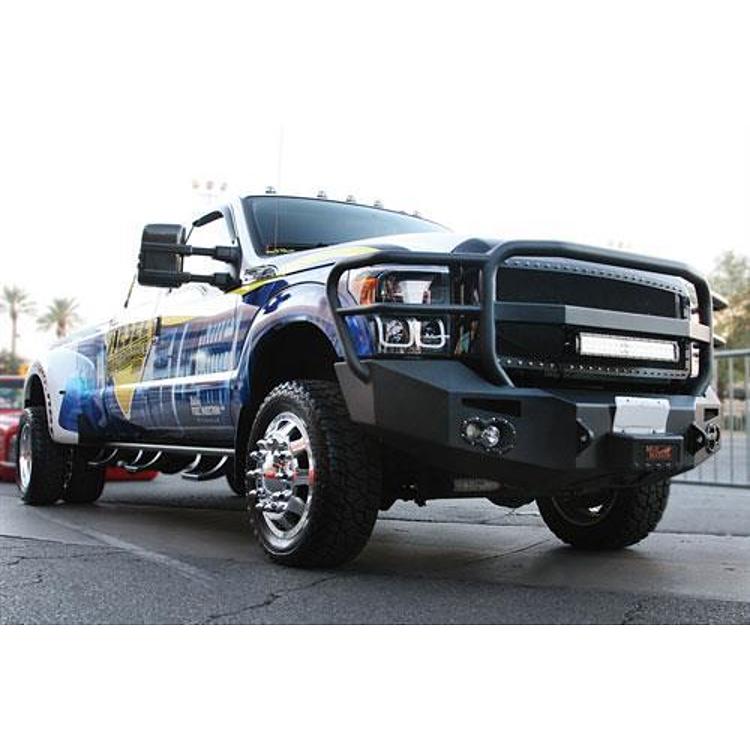

The Fab Fours FS11-A2550-1 is a heavy duty winch front bumper with a full grille guard for the 2011 to 2016 Ford F-250 Super Duty and F-350 Super Duty. It is made from steel with a black powder coat and is winch ready.
Fab Fours describes its Premium winch bumper as focused on strength and durability, providing more tire clearance to eliminate rubbing. The bumper accepts winches of 16,500 lb or smaller, has 3/4-inch D-ring mounts, and includes integrated fog and turn lights with air ducts.
A 1/4-inch boxed mounting system with adjustability allows a custom fit, and the light housings are injection molded.
Key features
- Full grille guard winch bumper for 2011 to 2016 Ford F-250 and F-350 Super Duty
- Winch ready for winches up to 16,500 lb
- 3/4-inch D-ring mounts included
- 90mm fog lights and 60mm turn indicator lights included
- Injection molded light housings and air ducts
- Adjustable 1/4-inch boxed mounting system
- Combination of 1/4-inch and 3/16-inch steel
- Matte black powder coat; a -B suffix on the part number means bare steel instead
- Made in the USA
Winch and load considerations
A front winch bumper changes how the truck carries weight at the front end and how it handles approach angles, so the winch and the bumper should be considered together. Match the winch to the rated capacity of the mount and keep the cable, fairlead and hook in good condition. Inspect the cable for fraying or kinks after every recovery, and replace it when the strands are damaged.
Fog and turn lights wired into the bumper depend on clean connections and a sealed harness. Check the connectors each season for corrosion and confirm the lights still switch on with the truck’s controls. Re-check the mounting bolts after rough trail use, since bumpers under winch loads can loosen over time. A grille guard also helps protect the radiator and headlights from brush and rock contact.
- Match winch capacity to the mount
- Inspect the cable after every recovery
- Check light connectors each season
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS11-A2550-1 |
| UPC | 5810100612 |
| Product type | Heavy duty winch front bumper with full grille guard |
| Position | Front |
| Width | Full |
| Material | Steel, 1/4-inch and 3/16-inch combination |
| Finish | 2 stage matte black powder coat |
| Winch capacity | 16,500 lb winch or smaller |
| D-ring mounts | 3/4-inch, included |
| Lights | 90mm fog lights and 60mm turn indicators, included |
| Winch mount | Included |
Vehicle fitment
It fits the 2011 to 2016 Ford F-250 Super Duty and 2011 to 2016 Ford F-350 Super Duty.
Earlier and later Super Duty generations are not covered by this part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The boxed mounting system can be adjusted to get a custom fit on the truck. The winch bolts to the built-in mount, and the supplied lights need wiring.
What’s included
- Front winch bumper with full grille guard
- D-ring mounts
- 90mm fog lights
- 60mm turn indicator lights
- Winch mount
Not included: The winch and its wiring.
