Overview

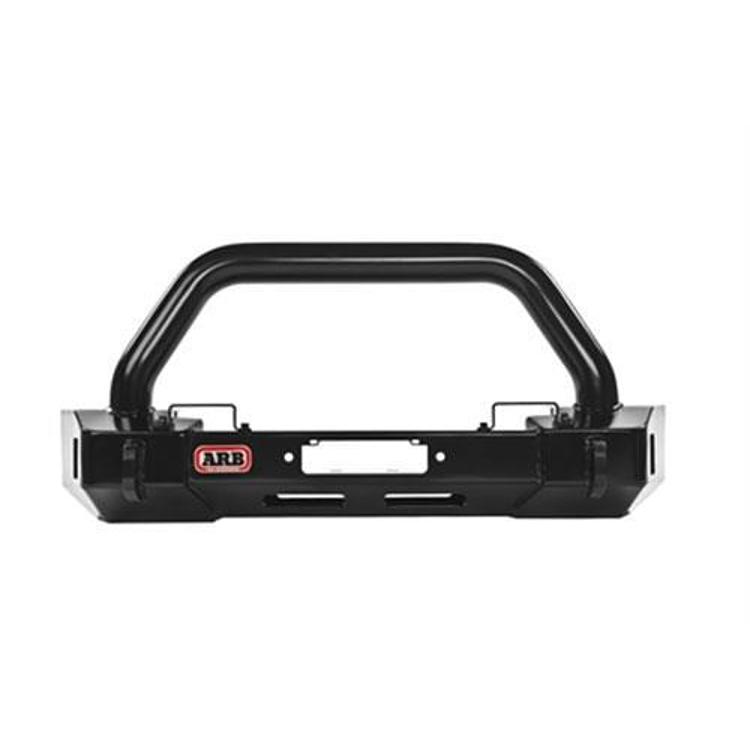

The ARB Jeep Wrangler JK Stubby Bar 3450430 is a textured black powder-coated steel winch bumper for the Jeep JK Wrangler, the 2007–2018 generation, in 2-door and 4-door models. ARB developed it for off-roaders who want a winch platform while keeping maximum clearance for larger tires.
ARB says vehicles running tires larger than 35 inches may rub on the wings of a traditional ARB Deluxe bar. The Stubby Bar avoids that because it is only as wide as the vehicle’s grille panel, yet it keeps full SRS air bag compatibility.

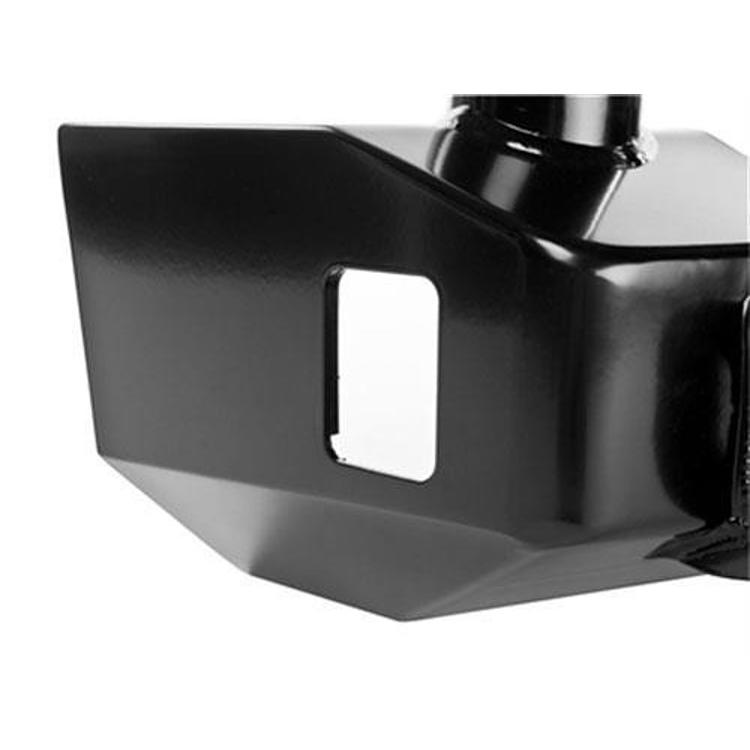

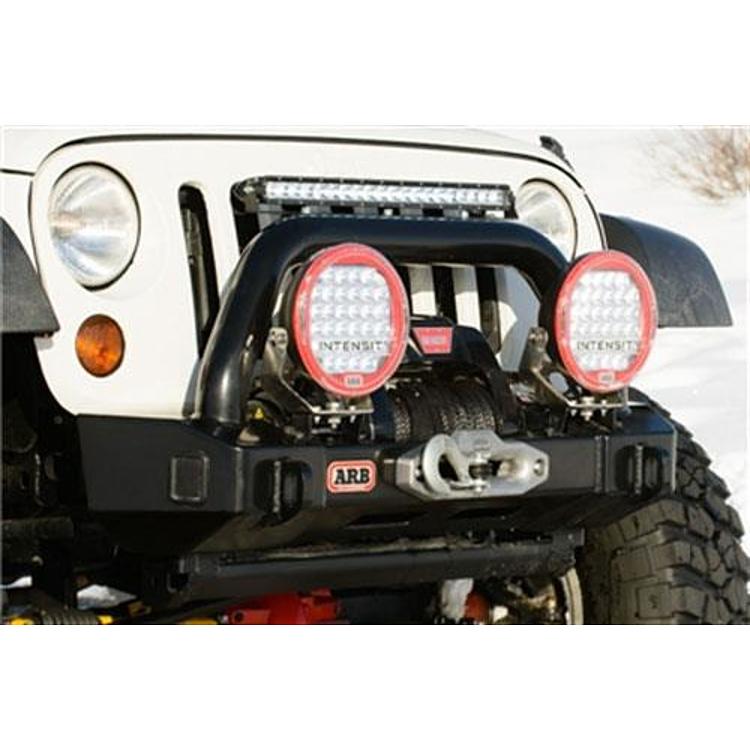

Each outer wing has high lift jacking points, and ARB provides brackets for driving lights. A mount on top of the 3 inch main tube suits LED light bars or communication antennas.
Key features
- Textured black powdercoat on steel
- Made from 4mm laser cut and folded steel sheet

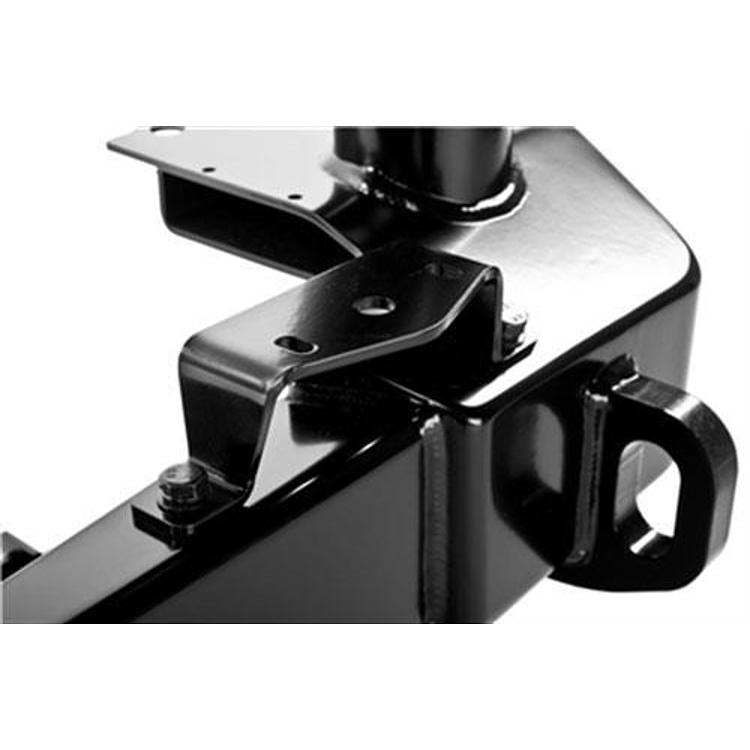

- 20mm thick, 350 grade steel recovery points tied into the chassis mounts
- 76mm x 2mm ERW center frame tube
- All hardware zinc plated for corrosion resistance
- All exterior surfaces CMT pulse welded, with a 5 stage anti corrosion pre-treatment
- Winch platform for low mount and narrow mount pattern winches
- Bracket to relocate the vacuum pump on later model vehicles
- Two flip up license plate mounts, one for roller fairleads and one for Hawse fairleads
- Fully illustrated fitting instructions
Front-end impacts and mounts
A front bumper is one of the parts most likely to be involved in a front impact, and its mounts influence how the vehicle’s sensors and restraints respond. Any aftermarket bumper should be fitted using the mounts shown in its instructions, and the bolts should be checked periodically. After a collision, a damaged bumper should be inspected before it goes back in service, including its brackets and any sensors nearby.
Grille-width bumpers leave the sides of the vehicle exposed to trail brush and rock contact, so the lower edges and corners see the most wear. Inspect the grille panel attachment points and the wing areas after rough trips. A narrow profile helps clearance, but the mounts carry the load through a smaller area, so keep the hardware tight and the welds in view.
- Inspect the bumper brackets after any front impact
- Check the wing and corner areas after rough trail use
- Keep fasteners tight, especially at the grille panel
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | 3450430 |
| UPC | 9332018035240 |
| Product type | Front bumper (Stubby Bar) |
| Width | Stubby, as wide as the grille panel |
| Material | Steel, 4mm laser cut and folded sheet |
| Finish | Textured black powder coat |
| Center frame tube | 76mm x 2mm ERW |
| Recovery points | 20mm thick, 350 grade steel |
| Hardware | Zinc plated |
| Welding | CMT pulse welded exterior surfaces |
| Pre-treatment | 5 stage anti corrosion |
| Winch mount | Integrated platform, included |
| D-ring mount | Included |
| Body styles | 2-door and 4-door |
| Fit type | Direct fit |
Vehicle fitment
This bar is made for the Jeep JK Wrangler, the 2007–2018 generation. Verify model year and trim before ordering.
Other Wrangler generations such as the TJ and JL are not covered by this JK bar. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
ARB includes fully illustrated fitting instructions. Later model vehicles use the supplied bracket to relocate the vacuum pump.
What’s included
- Stubby Bar front bumper, textured black
- Winch platform with control box bracket
- Light mounts and D-ring mount
- Vacuum pump relocation bracket for later model vehicles
- Two flip up license plate mounts
- Fully illustrated fitting instructions
Not included: A winch and driving lights.
