TIS Offroad 544BM Series Wheel, 24x14 with 6 on 5.5 Bolt Pattern – Black/Milled – 544BM-2446876

TIS Offroad

Shop TIS Offroad Wheels 24x14 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TIS Offroad 544BM Series wheel, 24×14 inches, 6 on 5.5 bolt pattern
  • Part number TIS544BM-2446876 with Black/Milled finish
  • Second listed bolt pattern 6 on 135, offset -76, center bore 108
  • Backspacing 4.51, directional style, aluminum construction
  • Fitment is labeled Universal Fit with no vehicles named

Description

Overview

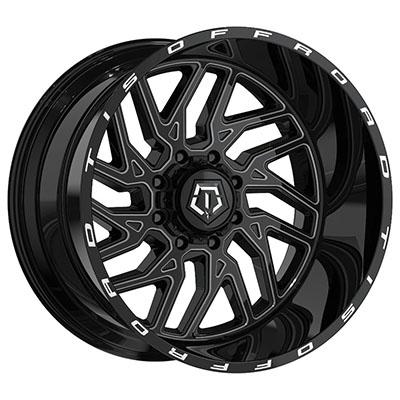

The TIS Offroad 544BM Series 24×14 wheel, part number TIS544BM-2446876, is an aluminum directional wheel with a 6 on 5.5 bolt pattern and a Black/Milled finish. At 14 inches wide on a 24-inch diameter, it is a styled wheel for offroad vehicles.

An offset of -76 and backspacing of 4.51 place the face well outboard of the hub, so these numbers drive tire clearance and suspension fit. Check them against your vehicle’s measurements before mounting.

Key features

  • 24-inch diameter and 14-inch width
  • 6 on 5.5 bolt pattern, with 6 on 135 also listed
  • Directional style
  • Black/Milled finish
  • Aluminum construction
  • Part of the 544 Series

Clearance for a wide wheel

A 14-inch width with a strongly negative offset moves the tire face outward, which changes how the wheel sits against the fender lip and the steering components. Before buying, measure the distance from the hub face to the fender edge and compare it with the wheel’s backspacing. This gives a useful starting point for the test fit.

Tire size and sidewall height also affect clearance. A wide tire on a wide wheel can contact the frame, control arms or shock bodies at full compression. Check the tire at full steering lock and at full suspension travel, since the closest contact often happens in those positions.

Once the wheel is mounted, recheck the lug nut torque after the first drive and watch for rubbing. Wide wheels also load the hub bearings differently, so listen for noise and feel for play at the wheel after the first few trips.

  • Fender lip distance from the hub face
  • Steering lock clearance
  • Tire contact at full suspension travel
  • Lug nut torque after the first drive

Specifications

Brand TIS Offroad
Part number TIS544BM-2446876
Wheel diameter 24 inches
Wheel width 14 inches
Bolt pattern 6 on 5.5
Second bolt pattern 6 on 135
Offset -76
Center bore 108
Backspacing 4.51
Series 544
Style Directional
Finish Black/Milled
Construction Aluminum

Vehicle fitment

This wheel is sold as universal fit, so match the 6 on 5.5 pattern (or 6 on 135), -76 offset, 108 center bore and 4.51 backspacing to your vehicle before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 14-inch width with a -76 offset moves the face well outward, so check fender, suspension and brake clearance with a test fit before mounting.

What’s included

Lug nuts, center caps and tires are not included with the wheel.

SKU: TIS544BM-2446876 Categories: ,

Questions & Answers

What is the TIS Offroad TIS544BM-2446876?

It is a 24x14 inch aluminum wheel from TIS Offroad's 544BM Series, with a 6 on 5.5 bolt pattern, a second listed pattern of 6 on 135, and a Black/Milled finish. Part number TIS544BM-2446876.

Will this 24x14 wheel fit my vehicle?

Confirm fit first. This wheel is sold as universal fit, so check the 6 on 5.5 bolt pattern, -76 offset, 108 center bore and 4.51 backspacing against your vehicle before mounting.

How wide is this wheel and what is its offset?

It is 14 inches wide with a 24-inch diameter and an offset of -76. Measure fender and suspension clearance before fitting, since a wide wheel with this offset sits well outboard.

Will a wide wheel need a wheel spacer?

Sometimes. Tire rub on the fender or suspension is the usual sign that clearance is short. Test-fit the wheel and check steering lock before driving, then decide whether a spacer is needed.
