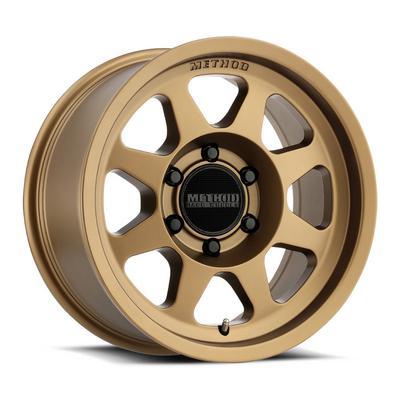

Method Race Wheels 701 Trail Series, 17x7.5 with 5 on 160 Bolt Pattern – Bronze – MR70177556950

Method Race Wheels

Shop Method Race Wheels 17x7.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 701 Trail Series 17×7.5 bronze wheel, part number MRWMR70177556950
  • Universal Fit, which names no particular vehicle
  • Bolt pattern 5 on 160, center bore 65, offset 50, backspacing 6.2
  • Windowed style, bronze finish, aluminum construction
  • Patent pending Bead Grip design for grip at lower air pressures

Description

Overview

This bronze 17×7.5 wheel has part number MRWMR70177556950 and a 5 on 160 bolt pattern. It is aimed at off-road trail and racing use, and it is Universal Fit, so no vehicle is named.

The wheel is one-piece cast from 356 aluminum, then T6 heat treated. Bead Grip technology is patent pending and works with the tire bead seat for added grip at reduced air pressures. A reinforced inner lip uses race wheel design, and field testing and Finite Element Analysis were part of development.

The 65 center bore, 50 offset and 6.2 backspacing define how the wheel seats on the hub and where it sits in the wheel opening. Those three figures are the first things to check before you commit.

Key features

  • Bead Grip technology that works with the tire bead seat at lower air pressures
  • Reinforced inner lip based on race wheel design
  • Safety humps on the inner and outer bead seats that help stabilize the tire
  • Cast 356 aluminum with T6 heat treatment
  • Windowed style with a bronze finish and 17 inch by 7.5 inch size

Hardware and mounting prep

Mounting hardware should match the wheel’s seat type and thread size. Lug nuts for steel or aluminum wheels differ in seat shape, and using the wrong seat can loosen the wheel over time. Check the hardware against the wheel before you start mounting.

Hub-centric rings can center a wheel on a hub when the center bore is larger than the hub. Use the correct ring size and avoid stacking rings. Spacers change the wheel’s position and should be checked against brake and suspension clearance.

After the first few drives, re-torque the lug nuts and inspect the wheel for cracks, bent lips and bead damage. Keep a log of torque checks so you know when the last inspection happened. Bronze finishes can scuff, so use a soft cloth and mild soap for cleaning.

Specifications

Brand Method Race Wheels
Part number MRWMR70177556950
Series MR701 Bead Grip
Style Windowed
Finish Bronze
Construction Aluminum
Wheel diameter 17 Inches
Wheel width 7.5 Inches
Bolt pattern 5 on 160
Center bore 65
Offset 50
Backspacing 6.2
Fitment Universal Fit

Vehicle fitment

Method lists Universal Fit, which means the wheel is not tied to a particular year, make, model or trim. The 5 on 160 bolt pattern and 65 center bore need to match your hub, and the 50 offset with 6.2 backspacing should clear brakes and suspension.

Compare the listed measurements against your vehicle before ordering. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the 5 on 160 bolt pattern and 65 center bore against your hub before mounting. Check that the 50 offset and 6.2 backspacing leave enough room for brake calipers.

What’s included

The wheel is the only item covered here, so verify lug nuts, center caps and tires before mounting.

SKU: MRWMR70177556950 Categories: ,

Questions & Answers

Does this bronze 17x7.5 Method wheel fit a particular vehicle?

The wheel is Universal Fit, so no vehicle is named. Before buying, confirm that the 5 on 160 bolt pattern, 65 center bore and 50 offset suit your hub.

Which Method 701 is part MRWMR70177556950?

It is the Method Race Wheels 701 Trail Series in 17x7.5, Bronze finish, Windowed style, aluminum construction, with a 5 on 160 bolt pattern and 65 center bore.

Does the 5 on 160 wheel include lug nuts?

Lug nuts, center caps and tires are not covered here, so confirm what comes with part MRWMR70177556950 before ordering. Plan to buy any missing hardware separately, matched to the 5 on 160 pattern.

How do I tell if the wheel needs replacement?

Replace the wheel if it shows cracks, bends that affect the bead seat, or damage around the spokes that a shop cannot repair. Any sign of air loss at the bead also calls for inspection before further use.
