TIS Offroad 549MB Series Wheel, 18x9 with 5 on 5/5 on 4.50 Bolt Pattern – Black/Machined – 549MB-8900512

TIS Offroad

Shop TIS Offroad Wheels 18x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 18 x 9 inch aluminum webbed wheel, part TIS549MB-8900512
  • 5 on 5/5 on 4.5 bolt pattern, offset -12, center bore 78
  • Black/Machined finish
  • Fitment is universal; no specific vehicle is named

Description

Overview

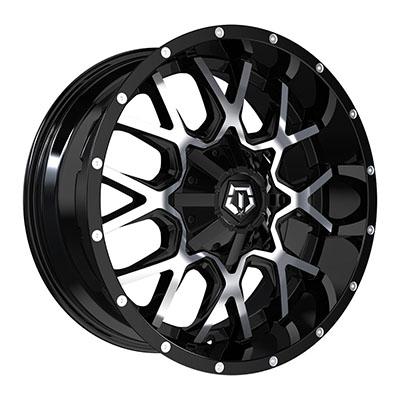

The TIS Offroad 549MB is an 18 by 9 inch aluminum wheel in the Series 549 webbed style, with a Black/Machined finish and part number TIS549MB-8900512. It is listed with a 5 on 5/5 on 4.5 bolt pattern and a second listed pattern, 5 on 4.5/114.3.

The -12 offset, 78 center bore and 4.53 backspacing shape how the wheel sits in the wheel well, so compare them with current wheels before ordering. The bolt pattern is written as 5 on 5/5 on 4.5, so match the 4.5 pattern to the hub before ordering.

Key features

  • 18-inch diameter and 9-inch width
  • Webbed style
  • Black/Machined finish
  • Bolt pattern 5 on 5/5 on 4.5
  • Second listed pattern 5 on 4.5/114.3
  • Offset -12, center bore 78, backspacing 4.53

Choosing a bolt pattern

Some wheels are drilled to accept more than one bolt pattern, but a given hub uses only one of them. The second pattern is an alternative for other vehicles, so the pattern that matches the stud spacing on the hub is the one to use. Measuring the studs directly is more reliable than relying on a written label, especially when two patterns appear together.

A webbed style with a machined face keeps the wheel open enough to see the brake assembly, and the machined areas need regular cleaning to stay bright. A negative offset moves the mounting face outward, which changes how the tire sits relative to suspension parts. Check inner and outer clearance before driving, and keep the lug seat style consistent across the set.

  • Measure stud spacing with a caliper before choosing a pattern
  • Confirm the hub bore matches the center bore
  • Check negative offset against inner suspension parts
  • Keep the lug seat style consistent across the set

Specifications

Brand TIS Offroad
Part number TIS549MB-8900512
Series 549
Wheel diameter 18 inches
Wheel width 9 inches
Bolt pattern 5 on 5/5 on 4.5
Second bolt pattern 5 on 4.5/114.3
Offset -12
Center bore 78
Backspacing 4.53
Style Webbed
Finish Black/Machined
Construction Aluminum

Vehicle fitment

The fitment for this wheel is universal, and no year, make or model is given. Match the bolt pattern, the negative offset and the center bore to the hub you plan to use.

The second listed bolt pattern is an alternative, not an addition, so check which one your hub uses. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A negative offset pushes the mounting face outward, so confirm inner and outer clearance to the suspension and brakes before mounting. No spacers or adapters are described with this wheel.

What’s included

Only the wheel is included. Lug nuts and caps are not part of this item.

SKU: TIS549MB-8900512 Categories: ,

Questions & Answers

Is the TIS549MB-8900512 made for a specific vehicle?

No. Universal Fit applies and no year, make or model is attached. Match the 5 on 5/5 on 4.5 bolt pattern, the -12 offset and the 78 center bore to your vehicle before ordering.

What finish and size is this wheel?

It is an 18-inch wheel, 9 inches wide, in a Black/Machined finish with a webbed style. The construction is aluminum, and the part number is TIS549MB-8900512.

What is the backspacing on this TIS Offroad wheel?

The backspacing is 4.53 and the offset is -12. Both affect tire and brake clearance, so check them against your current setup before mounting. Lug nuts and caps need to be sourced separately.

How do I measure a bolt pattern?

For an even stud count, measure from the center of one stud to the center of the stud directly across. For an odd count, measure from the center of one stud to the outside edge of the stud two positions away, then convert it with a bolt pattern chart. Compare the result with the hub before ordering.

Does a negative offset need extra care?

Yes. Negative offset moves the mounting face outward, which can bring the tire closer to suspension parts or change steering loads. Check inner and outer clearance at full steering lock and over bumps before driving.
