Overview

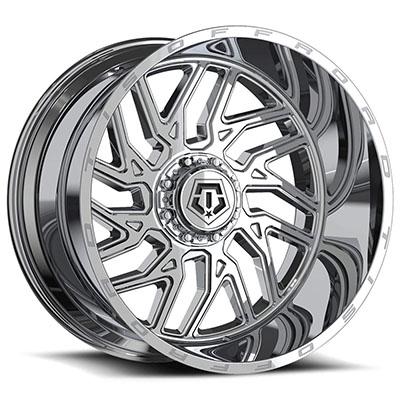

The TIS Offroad 544C is a 20×12-inch chrome aluminum directional wheel with an 8 on 6.5 bolt pattern, part number TIS544C-2128144. It is part of the 544 Series and is listed with a center bore of 125.2.
Confirm the 8 on 6.5 bolt pattern and 125.2 center bore against your hub before fitting. The -44 offset and 4.77 backspacing determine how the face sits in the wheel well.
Key features
- Chrome finish
- 8 on 6.5 bolt pattern, eight lug holes
- 20-inch diameter and 12-inch width
- Directional style in aluminum construction
Before you mount a wheel
A directional wheel works in only one orientation, so set the rotation to match the side marked for it before the tire goes on. Mismatched rotation can change how the tread channels water and complicate balancing. Hub-centric fit matters just as much: the center bore should sit snugly on the hub, and a ring can close a gap if the bore is larger than the hub.
Chrome faces show marks, road grit and brake dust more readily than painted finishes. Clean with mild soap and a soft cloth, and avoid abrasive pads that dull the plating. After the first drives, re-check lug nut torque and look at the bead area of the tire for any shift.
- Inspect the chrome for chips before mounting
- Clean the hub face and mating surface
- Re-torque lug nuts after the first drive
- Check valve stem clearance against the brake caliper
Specifications
| Brand | TIS Offroad |
|---|---|
| Part number | TIS544C-2128144 |
| Series | 544 |
| Diameter | 20 inches |
| Width | 12 inches |
| Offset | -44 |
| Center bore | 125.2 |
| Backspacing | 4.77 |
| Bolt pattern | 8 on 6.5 |
| Style | Directional |
| Finish | Chrome |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named for this wheel. Its fitment field reads Universal Fit, which is not a make, model or year and does not confirm the hub match.
Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Because the design is directional, the rotation side must match the mounting side marked for it. Verify that the 125.2 center bore seats correctly on your hub.
What’s included
This item is a single wheel. Check the package contents against your installation before starting.
Not included: Tires, lug nuts and center caps: check the package contents against your installation before starting.
