Overview

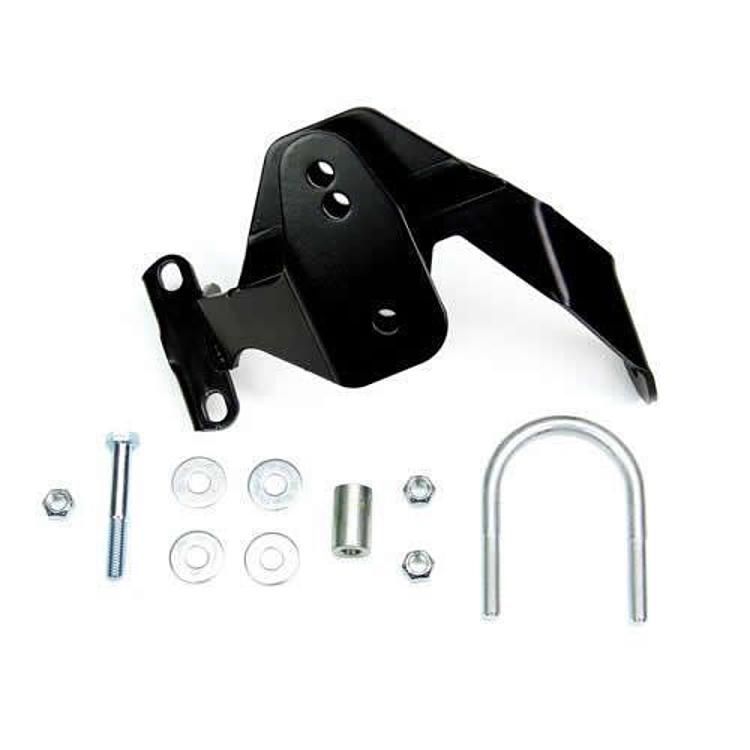

The TeraFlex 1954888 is a rear trackbar axle bracket kit for Jeep Wrangler JK models, built for 3 to 6 inch lifts. It bolts to the rear axle and offers multiple mounting locations so the rear axle can be set to neutral lateral alignment after a lift.
This bracket restores the factory handling and the correct roll center for a lifted JK. It is recommended for better drivability and to reduce rear body roll. The kit is for 2 and 4-door models.
Key features
- Multiple mounting locations for 3 to 6 inch lifts
- Bolt-on bracket mounts to the rear axle
- Restores factory handling and the correct roll center
- Designed for 2 and 4-door models
- Right hand drive models are covered.
Choosing a rear lift setup
Rear track bar brackets are part of a larger lift setup that includes springs, shocks and the track bar itself. Choosing the bracket is easier when you know how far the axle has moved, because the mounting location needs to match the lift height.
On a higher lift the track bar angle changes more, so the correct bracket position becomes more important for handling. Treat the bracket as one piece of the geometry and compare the axle centering with the vehicle at ride height. Write down your lift height and axle position before you start so the next adjustment is easier.
Inspect the bracket, mounts and track bar every time the tires or suspension change. Loose hardware and worn bushings are common causes of rear end wander, so check them before blaming the steering.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1954888 |
| UPC | 843885025016 |
| Mounting location | Rear axle |
| Type | Axle side |
| Lift height | 3 to 6 inches |
| Body style | 2 and 4-door models |
| Installation | Bolt-on, welding recommended |
Vehicle fitment
The manufacturer fitment list covers 2007 to 2015 Jeep Wrangler (JK) models in several trims, including Rubicon, Sahara, Sport, Unlimited and X versions.
2016 to 2018 JK Wranglers are not in that list, and TJ, LJ and JL models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Welding is recommended for final installation, so have welding equipment ready before you finish the bracket. Pick the mounting location that matches your 3 to 6 inch lift before final assembly. Secure the axle on stands while you mount the bracket.
