Overview

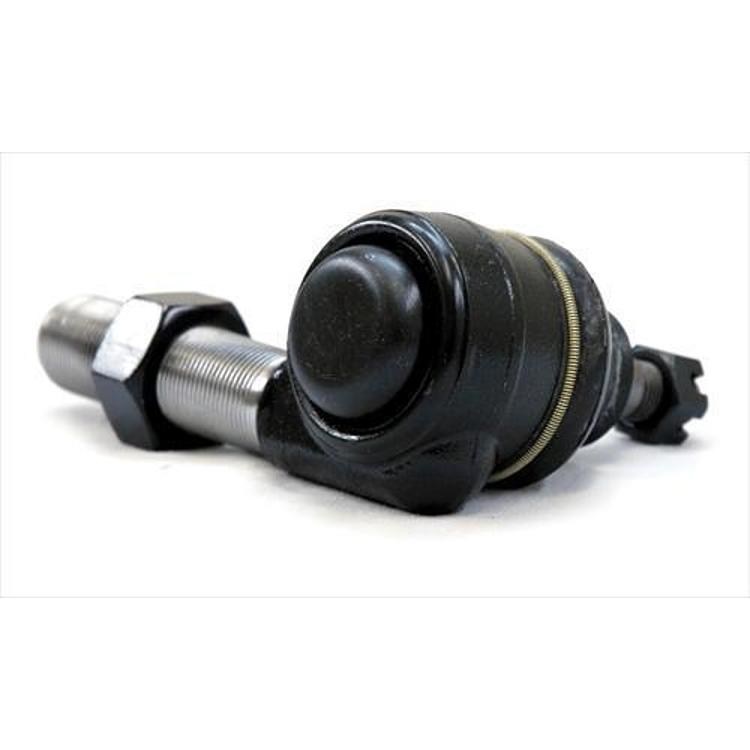

The TeraFlex 4920232 is a heavy-duty offset tie rod end with a right hand thread, a small taper and 7/8 inch x 18 TPI thread. It is listed alongside the left hand TeraFlex 4920231.
The joint end is a one-ton design. TeraFlex makes this line in a stock Jeep taper or a large one-ton taper for standard Dana 60 knuckles. The small taper fits Dana 30 knuckle holes.
Key features
- Right hand thread
- Small taper for Dana 30 knuckle holes
- One-ton joint end
- Offset design
Thread direction and installation
Thread direction determines which side of the linkage the tie rod end can be installed on, so confirm the thread before threading the joint onto the tube. A right hand thread end is used where the linkage calls for it, and it should never be forced onto the opposite thread. Taper, thread and offset should all be checked before assembly.
After installing, set the tie rod length, then tighten the jam nut to hold it. Recheck toe alignment because length changes affect steering geometry. Inspect the boot and joint at each service for cracks, leaks or play.
- Confirm thread direction before threading on
- Set rod length before tightening the jam nut
- Recheck toe alignment after adjusting
- Inspect boots at each service
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 4920232 |
| UPC | 843885026372 |
| Thread direction | Right hand |
| Thread size | 7/8 inch x 18 TPI |
| Taper | Small |
| Joint | One-ton joint end |
| Design | Offset |
| Quantity | Individually |
Vehicle fitment
Match the taper and thread to your axle knuckles before ordering. The Dana 30 and Dana 60 references are axle types, not vehicles.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
A single right hand thread tie rod end.
