Overview

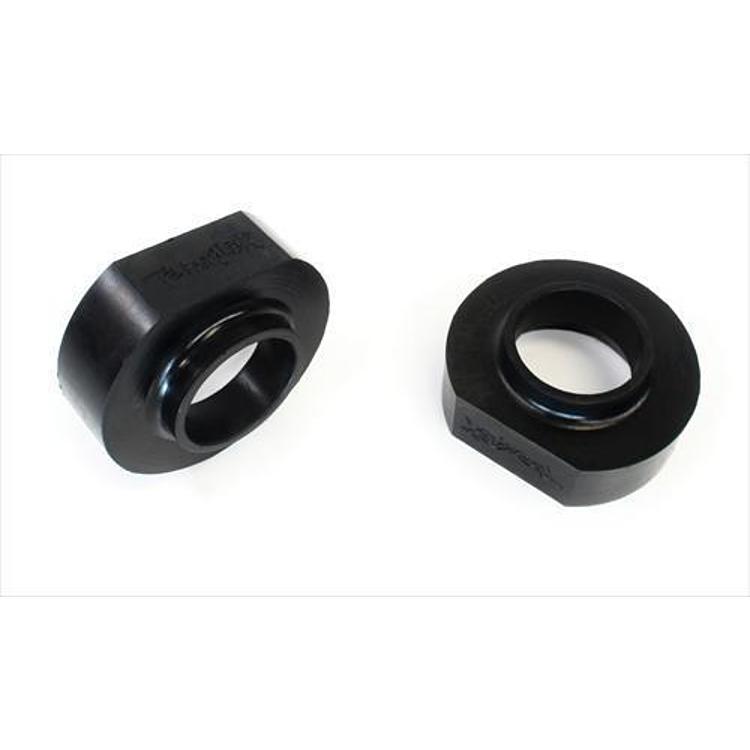

The TeraFlex 1905172 is a coil spring spacer for the 2004–2006 Jeep Wrangler LJ and the 1997–2006 Jeep Wrangler TJ. It gives 1-1/4 inch of lift with the factory rubber spring isolator and 3/4 inch without it.
TeraFlex describes its coil spring spacers as a way to level a Jeep that sags from heavy loads or accessories. The lift height field on the product lists 1 inch, which differs from the note, so check the setup you plan to run.
Key features
- 1-1/4 inch lift with the factory rubber spring isolator
- 3/4 inch lift without the isolator
- Skin packed
- Intended to level a Jeep sagging under load
Before you install a spacer
A coil spring spacer adds height by sitting between the coil spring and its seat, so the body rides higher without changing the shocks or control arms. Many owners add one when the front or rear sags under a heavy bumper, winch or spare tire. The added height changes suspension geometry, so driveline angles and steering geometry should be checked after the change, and the shocks may need to be extended to match.
Spacers on the TJ and LJ are often installed alongside a new set of shocks, sway bar links or a brake line extension, since the taller ride puts more length on those parts. Inspect the coil springs for cracks or a sagging coil before adding height, because a worn spring will not hold a spacer’s lift evenly. Retorque the spring seat hardware after the first drive.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1905172 |
| UPC | 843885024200 |
| Lift height | 1-1/4 inch with the factory rubber spring isolator; 3/4 inch without it |
| Listed lift height | 1 inch |
| Packaging | Skin packed |
| Quantity | Each |
| Installation | Direct Fit |
Vehicle fitment
The manufacturer fitment list covers the 2004–2006 Jeep Wrangler (LJ) with the Unlimited and Unlimited Rubicon trims, and the 1997–2006 Jeep Wrangler (TJ) with the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
It fits the 2004–2006 Jeep Wrangler LJ and the 1997–2006 Jeep Wrangler TJ. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The factory rubber isolator is the difference between 1-1/4 inch and 3/4 inch of lift, so decide whether it stays in place before installing. Check driveline angles and tire clearance after the change.
What’s included
One coil spring spacer per each. Check the package contents against your installation before starting.
