Overview

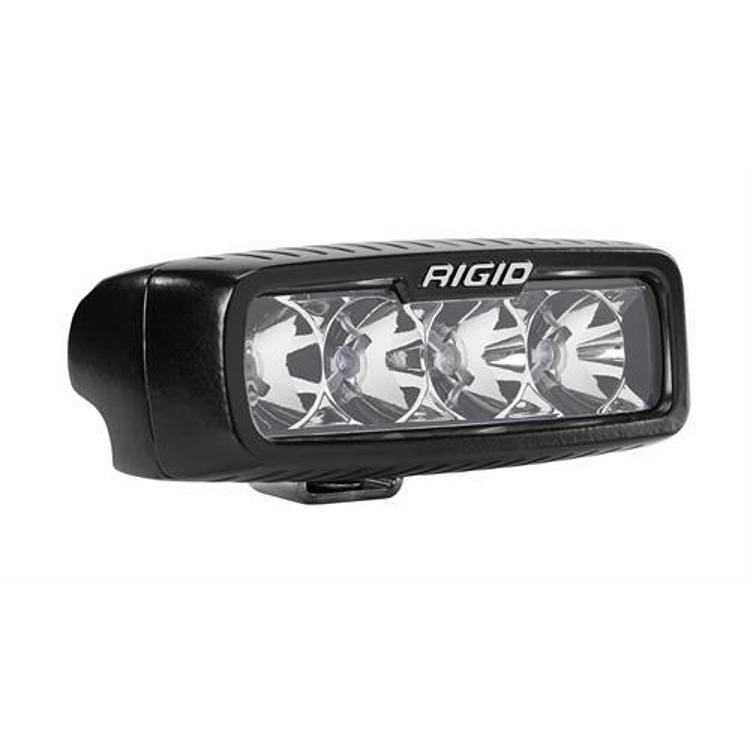

The SR-Q Single Row 20 Deg. Flood LED Light is a compact flood light that projects a 20 degree beam. It produces 1568 raw lumens from 20 watts, and it is built on the M-Series approach of high output with very low power use.
The SR-Q uses a patented Hybrid optic system that combines reflector and lens technology. The optic is more than 93% efficient, and a custom heat sink keeps the housing cool. The light suits any lighting application that needs a flood pattern and is a universal light rather than a vehicle-specific part.
Key features
- 20 degree flood beam pattern
- 1568 raw lumens at 20 watts
- Patented Hybrid optic reflector and lens
- Over 93% efficiency
- Custom designed heat sink to keep the temperature down
- Unbreakable polycarbonate lens
- Plug and play wire harness with switch included
Mounting a flood light safely
A flood light is most useful close to the work area, where its wide pattern covers the ground without needing long throw. Choose a mounting spot that points the lens where the light is needed and keeps the beam off passing drivers’ eyes. The lens should sit clear of mud, branches and other surfaces that could scratch or block it, and the bracket should hold the light firmly under vibration.
Think about the vehicle’s shape as well. Roof racks, bumpers and utility equipment each offer different angles and different vibration levels, so test the fit with the light held in place before drilling. Plan the wire route first, so the harness can be secured away from heat and moving parts.
- Test the bracket angle before drilling
- Secure the harness at short intervals
- Keep the switch within easy reach
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774027963 |
| Light type | LED, square lens, clear |
| Beam pattern | Flood, 20 degree |
| Output | 1568 raw lumens |
| Power | 20 watts |
| Optic | Hybrid, over 93% efficiency |
| Housing | Cast aluminum with powder-coated finish |
| Lens | Unbreakable polycarbonate, scratch resistant |
| Mounting | Bracket, single light |
| Included | Mounting hardware, plug and play harness with switch |
Vehicle fitment
The SR-Q is a universal flood light and is not designed for a particular vehicle. Its compact shape lets it fit almost anywhere, from roof racks to bumpers and utility equipment. Measure the mounting space before drilling, and make sure the lens clears any surface it is installed against.
Installation notes
The included plug and play harness and switch make it easy to wire the light. Use a fuse on the power feed and check local rules for auxiliary lights before mounting the light on a road vehicle.
What’s included
One SR-Q flood light with mounting hardware and a plug and play wire harness with switch.
