Overview

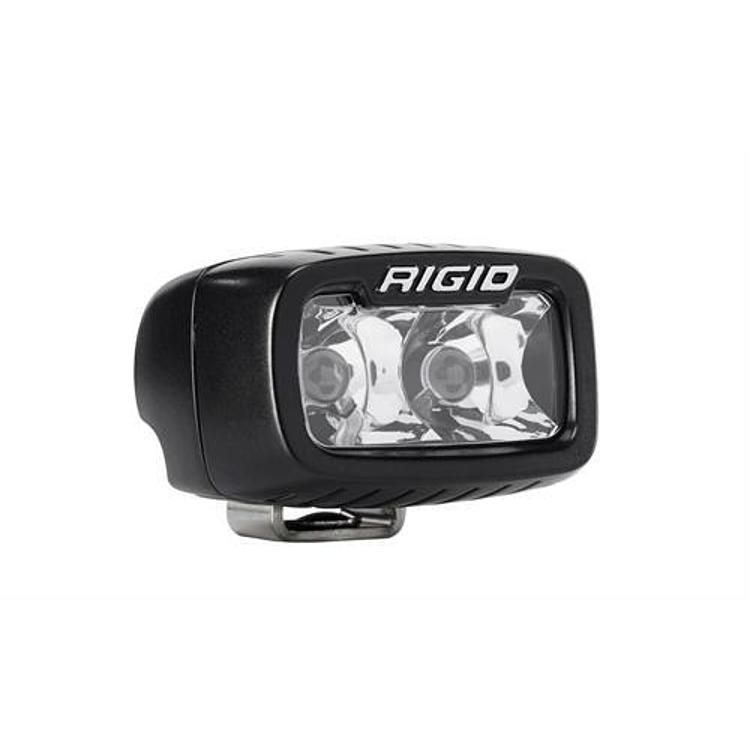

The Rigid Industries SR-Series SR-M Single Row Mini 10 Deg. Spot LED Light is a small square light with a 10-degree spot pattern. It has two white LEDs, and Rigid describes its patented optics as projecting almost 1000 feet of light in a mini housing.
The SR-M runs on ultra low power with a 7 to 36 VDC input. It has a 50,000-hour life, compared with about 1,000 hours for halogen and 5,000 hours for xenon, and it turns on and off instantly with no hot spots. The light is IP68 rated.
Key features
- 10-degree spot beam
- Projects almost 1000 feet of light with patented optics.
- Two white LEDs
- Small square mini housing
- Input from 7 to 36 VDC
- IP68 rating and 50,000-hour life
Aiming a narrow spot
A spot light concentrates its output into a tight beam, so small changes in aim make a large difference at distance. Set the aim on level ground with the vehicle loaded the way it will be driven. Pick a point well ahead of the vehicle, then adjust until the hot center falls where you need it, rather than trying to light the area directly in front of the bumper.
Narrow beams show dirt, dust and small obstacles well, but they leave the sides of the trail dark. Pair a spot with a wider light if you need peripheral view. Recheck aim after bumpy runs, since a bracket can shift and the beam will drift off target.
- Aim on level ground with the vehicle loaded
- Recheck aim after rough trail sections
- Pair with a wider light for side visibility
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774027772 |
| Series | SR-M Single Row Mini |
| Light type | LED spot light, sold as a single light |
| Light shape | Square |
| Beam pattern | Spot, 10-degree |
| LED count | 2 white LEDs |
| Input voltage | 7 to 36 VDC |
| Rated life | 50,000 hours |
| Ingress rating | IP68 |
| Mounting | Bracket |
Vehicle fitment
It works across many vehicles, not one specific model. The bracket mount lets you decide where it goes, and the spot should be aimed at the area it needs to light. Confirm fit for your vehicle’s year, model and trim before mounting.
Installation notes
Mount the bracket to a solid surface and wire the light with the included harness and switch. Keep the cable clear of moving parts, and check local rules on auxiliary lights before using the spot on a road vehicle.
What’s included
The package is one mini spot light, listed with a plug-and-play wiring harness, switch and cast bracket.
