Overview

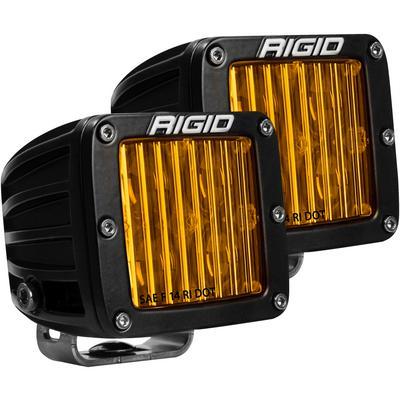

The Rigid Industries D-Series Pro SAE J583 Compliant Fog Light Pods, part number 504814, are a set of two square 3-inch LED pods with a selective yellow lens. They are SAE and DOT compliant and built for dust, fog and other low-visibility conditions on the street.
Selective yellow light is easier for the human eye to process than shorter wavelengths, which reduces glare, enhances definition and improves contrast. The pods draw 1.50 amps and are rated for up to 50,000 useful hours.
Each pod is rated at 22 watts and gives 1760 lumens with a fog beam pattern. Beam distances are 96 at 1 lux and 192 at 0.25 lux, with a peak beam intensity of 9296 candela and 92 lux at 10 meters.
Selective yellow lights are available for several RIGID lighting lines, including the D-Series, SR-Series and D-XL Series. This set is the D-Series Pro in the yellow selective color.
Key features
- SAE J583 compliant and DOT compliant for street use
- Selective yellow lens for low-visibility conditions
- Square 3-inch housing in black
- Surface mount design
- 22 watts per pod, 1760 lumens
- Fog beam pattern
- Up to 50,000 useful hours
Mounting and aim for fog pods

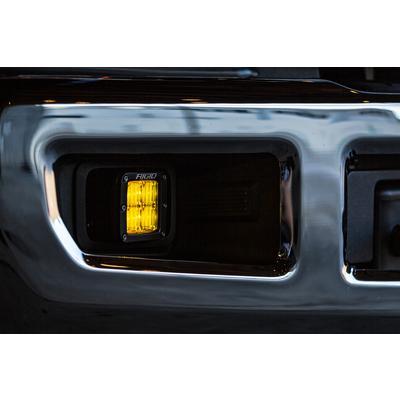

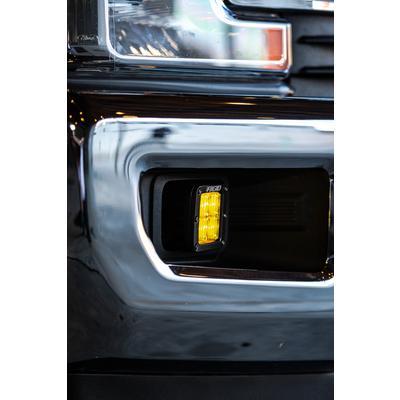

Surface mount pods need a clean, flat area that is solid enough to hold the bracket under vibration. Mark the mounting holes carefully and check that the pods clear the bumper, the hood edge and any grille bars before drilling. Seal the wire entry points so water and road spray stay out of the connections.

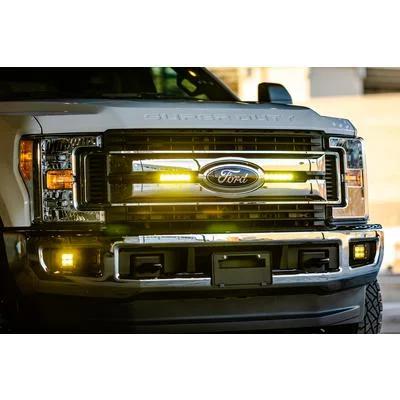

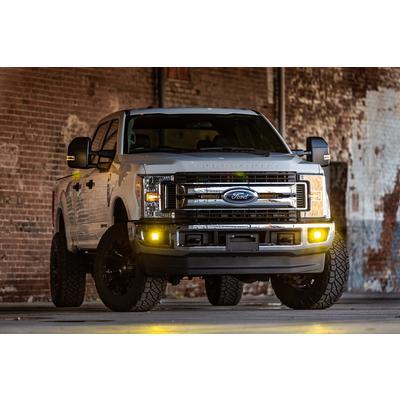

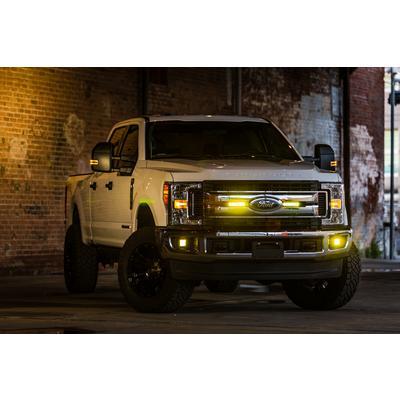

Fog pods are usually aimed low so the beam lights the road directly ahead without flooding the air in front of the vehicle. Recheck the aim after mounting and again after the first rough drive. Keep the lens clean, since a film of dirt or salt will reduce the light reaching the road.
- Choose a clean, flat, solid mounting area
- Seal wire entry points against water
- Aim low for fog use
- Clean the lens regularly to keep output steady
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 504814 |
| Light series | D-Series Pro |
| Light type | LED |
| Size | 3-inch square |
| Lens color | Yellow |
| Housing color | Black |
| Mounting location | Surface |
| Sold as | Set of two |
| Watts | 22 |
| Amp draw | 1.50 |
| Lumens | 1760 |
| Peak beam intensity | 9296 candela |
| Beam pattern | Fog |
Vehicle fitment
Universal fit. These are square surface mount pods for any vehicle with a suitable mounting spot, so the bracket location and wiring decide the placement.
Check the mounting surface and the wiring against your vehicle before installing.
Installation notes
The surface mount pods need a clean, flat mounting area and a relay sized for the 1.50 amp draw per pod. Aim the pods low for fog use to limit glare. Check the relay and switch against the 22 watt draw per pod before the two pods are wired together.
What’s included
A set of two D-Series Pro SAE J583 compliant yellow fog light pods.
