Overview

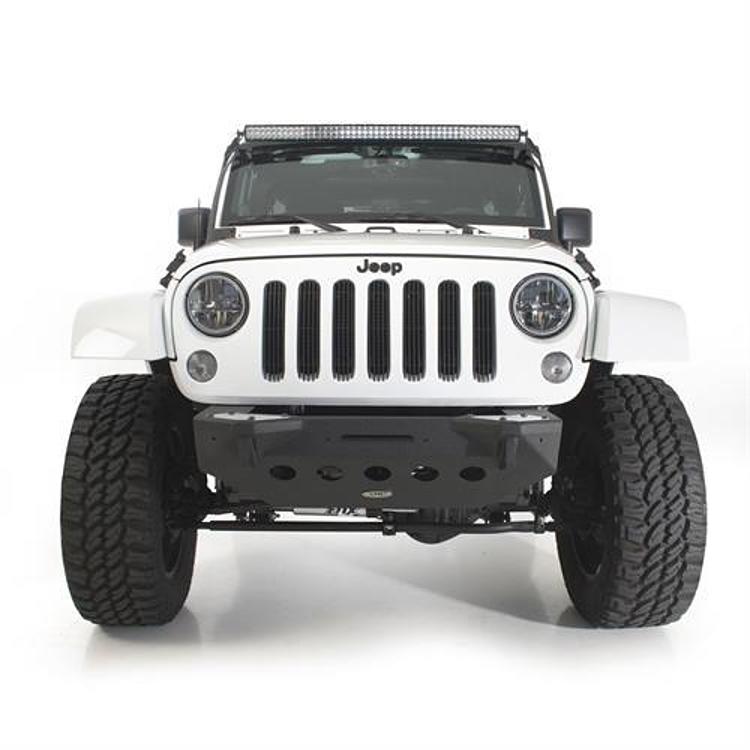

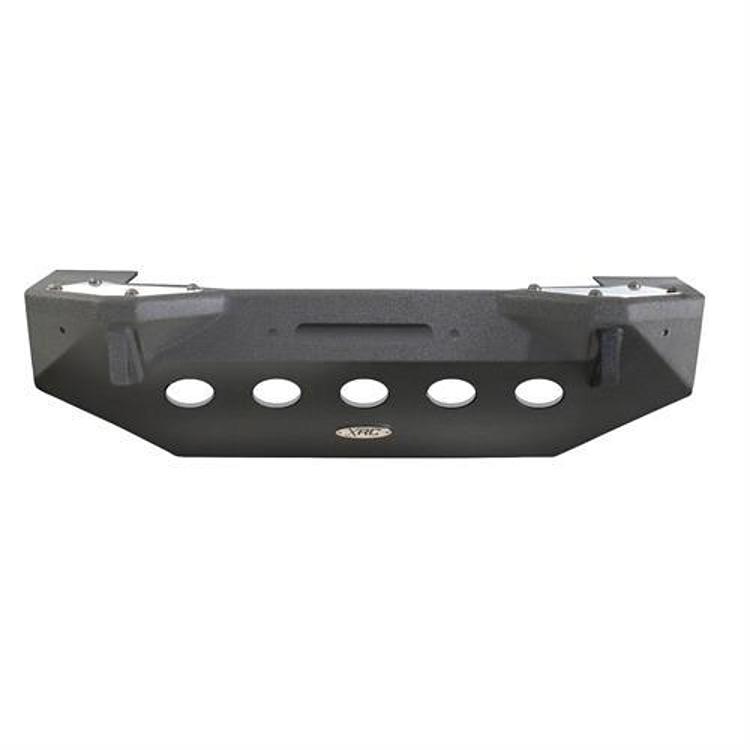

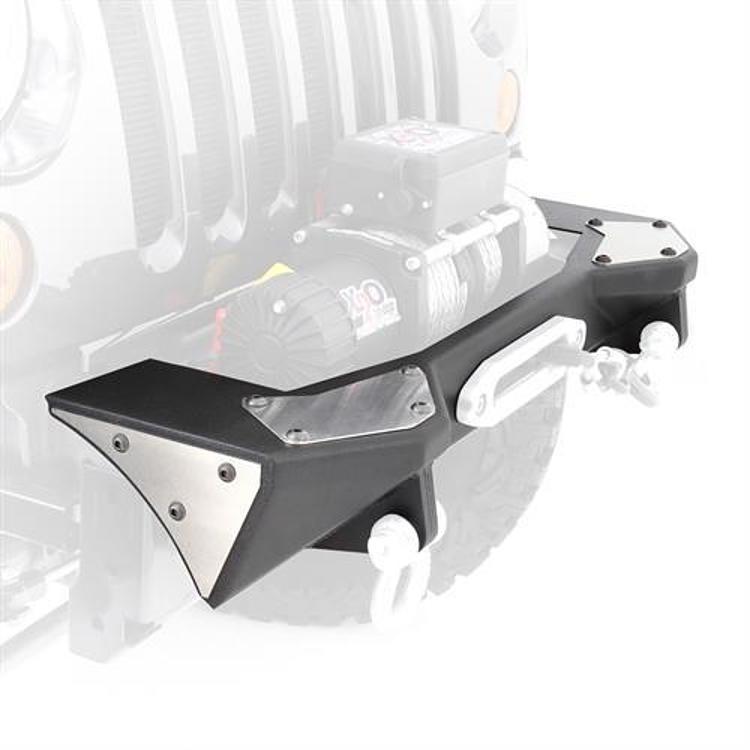

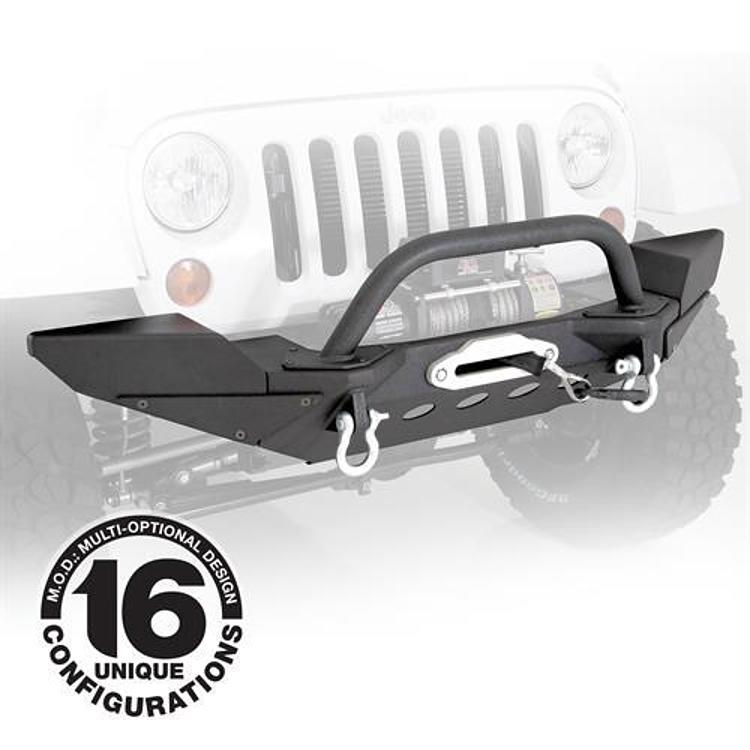

The Smittybilt XRC M.O.D. modular center section with winch plate and D-ring mounts, part number 76825, is the base unit of the JK XRC Multi Optional Design bumper system for the Jeep Wrangler JK. It is made from 3/16 inch cold rolled steel with a two-stage textured matte black powder coat.

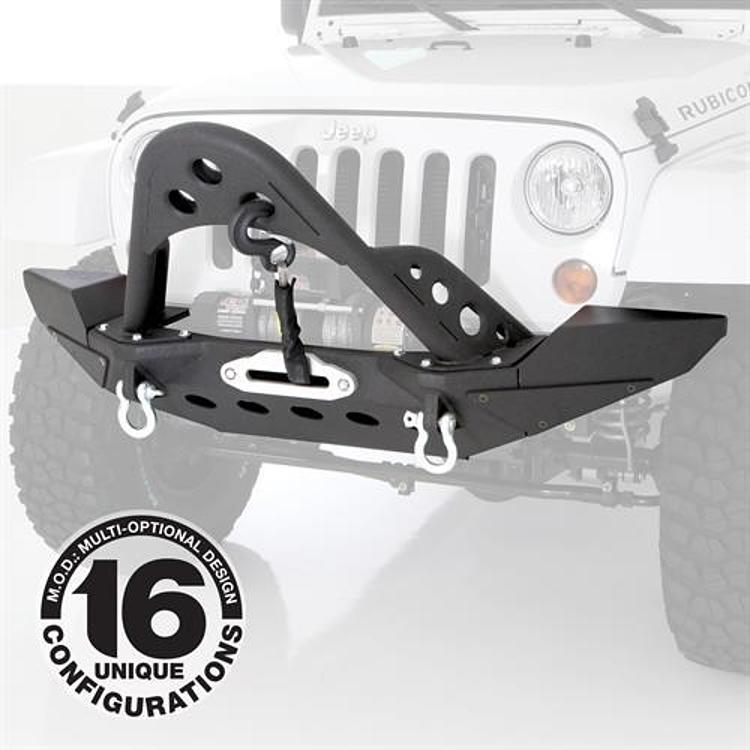

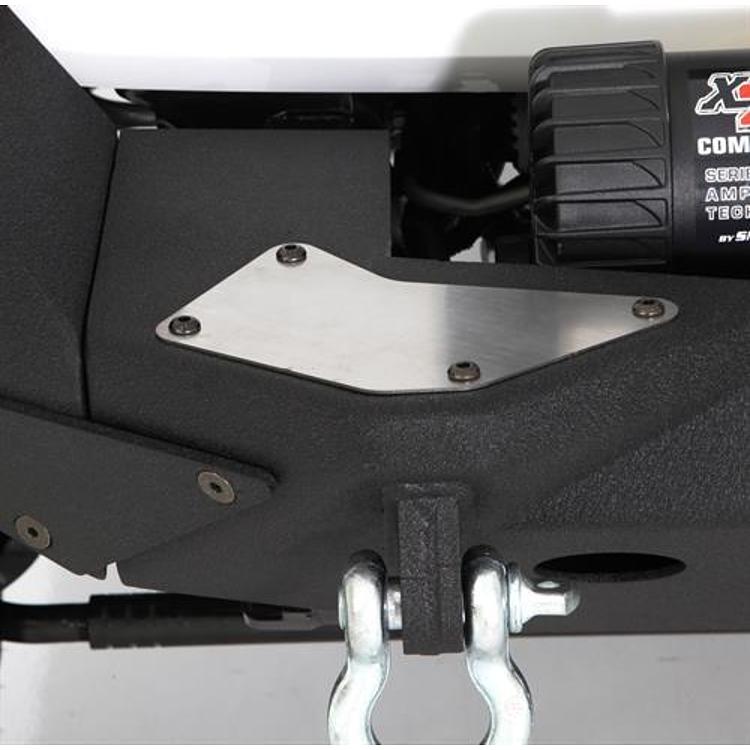

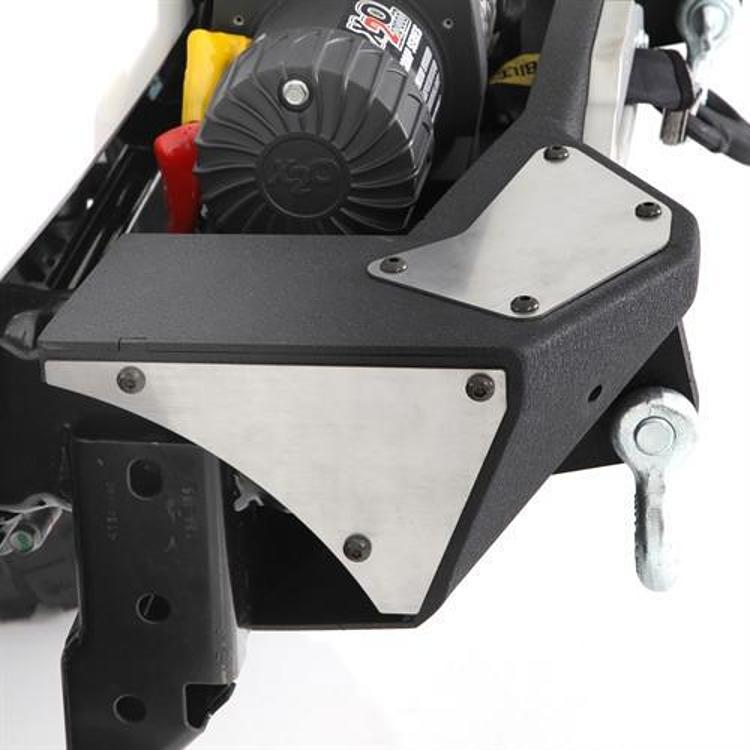

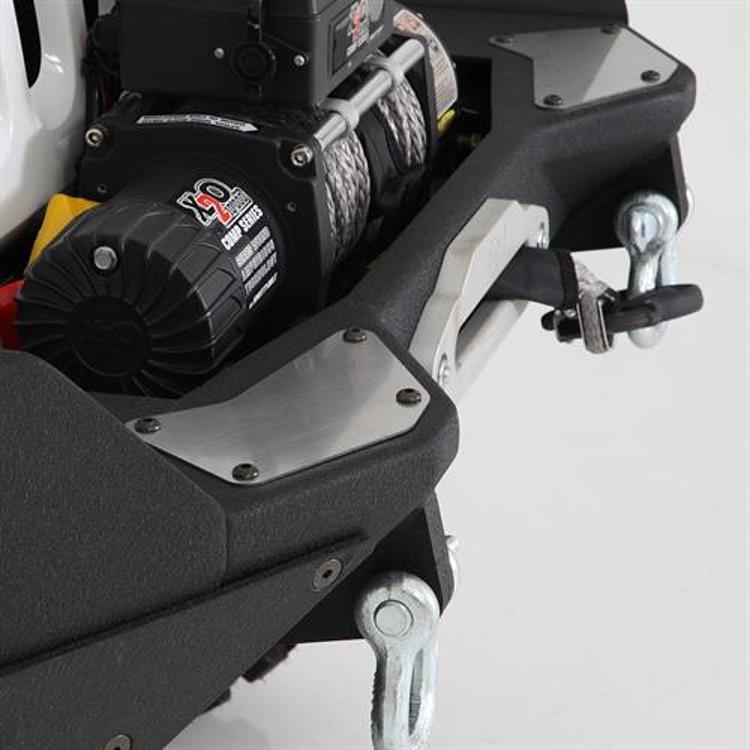

Smittybilt built the base unit around its XRC platform and gave it a winch cradle that supports a winch up to 15,000 lb. D-ring mounts are welded inside and out and provide a towable anchor. You then choose a mid or full width end plate, and an over rider in either a low profile bull bar or a high point stinger.
Key features
- Built-in winch plate for a winch up to 15k
- 3/16 inch cold rolled steel
- Two-stage textured matte black powder coat

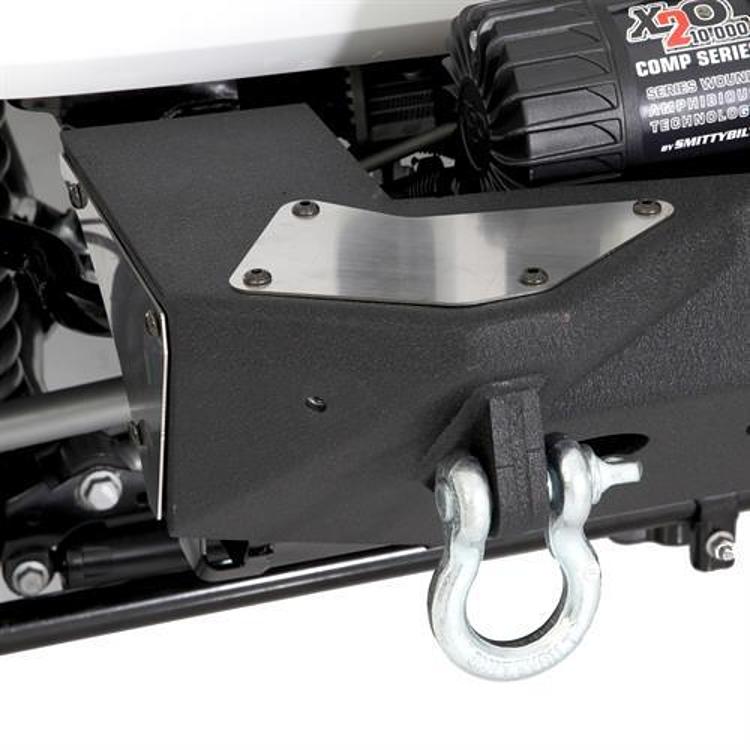

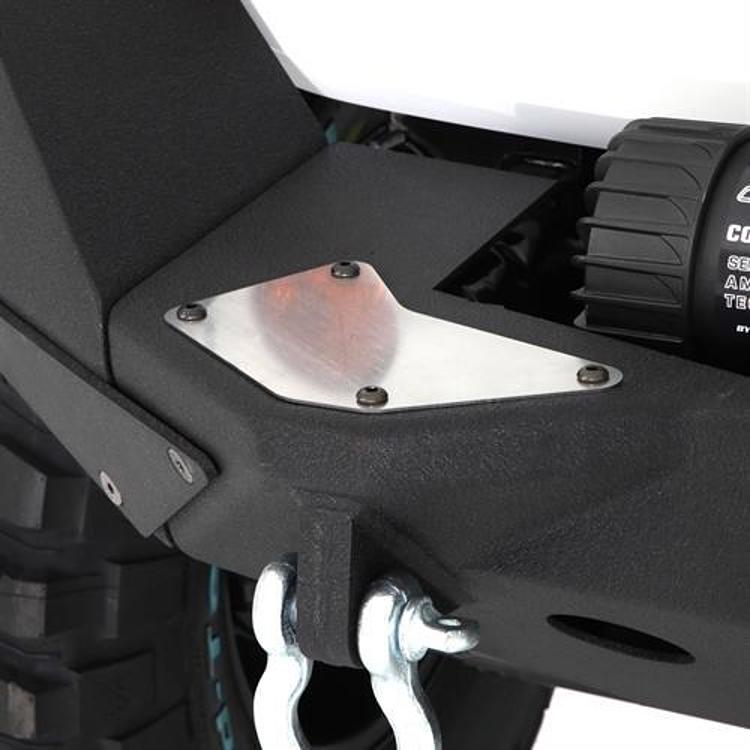

- Solid D-ring mounts welded on the inside and out, a towable anchor
- Mid or full width end plates to choose from
- Choice of low profile bull bar or high point stinger
- For 2-door and 4-door models
Choosing end plates and over riders

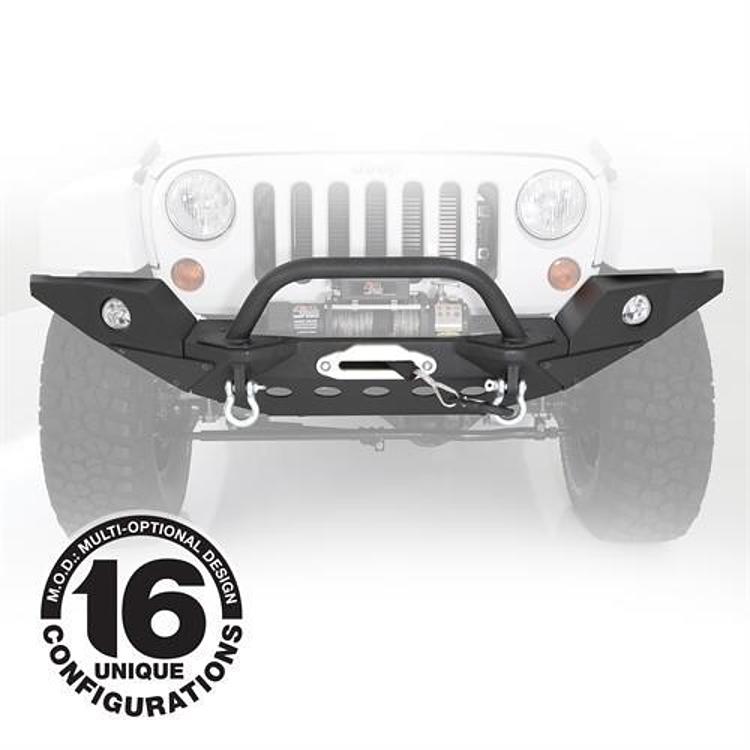

The center section is only one part of a modular front end, so the overall look and protection depend on the end plate and over rider you choose. Mid width end plates keep the front narrower and leave more fender exposed, while full width plates add coverage at the corners. A low profile bull bar suits trail use where clearance matters, and a high point stinger suits vehicles that need extra room for tall tires.
A winch plate on a center section sees heavy loads during recovery, so check the winch plate welds, D-ring anchors and frame mounts regularly. Use recovery-rated shackles and keep the winch line straight to the anchor point.
- Match end plate width to your fender openings
- Check welds on the winch cradle after heavy pulls
- Use recovery-rated shackles at the D-rings
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 76825 |
| UPC | 631410112160 |
| Product type | Modular center section, XRC M.O.D. bumper system |
| Position | Front |
| Width | Stubby (center section) |
| Material | Cold rolled steel, 3/16 inch |
| Finish | Two-stage textured matte black powder coat |
| Winch capacity | Up to 15,000 lb |
| Winch mount | Included |
| D-ring mounts | Included |
| Light mounts | Not included |
| Fit type | Direct fit |
Vehicle fitment

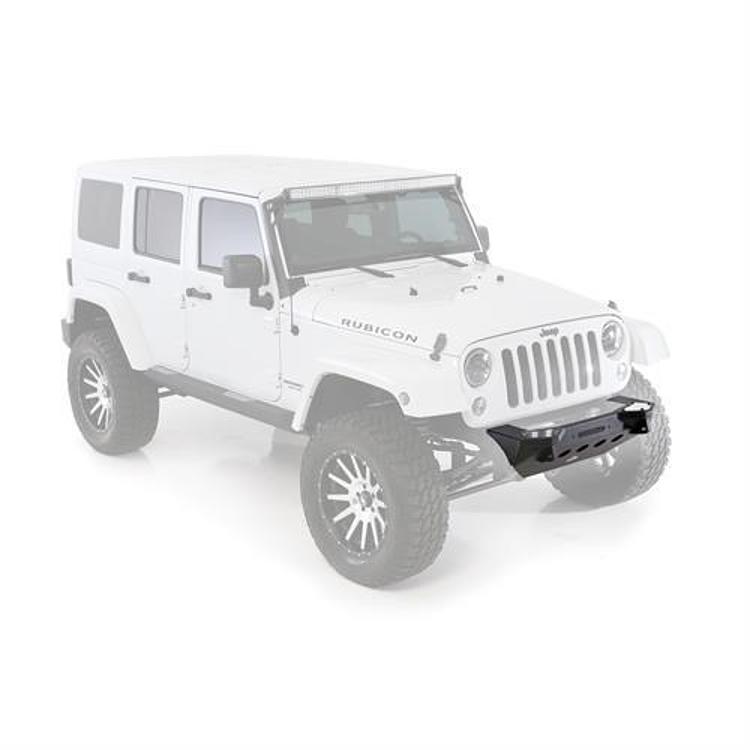

It is designed for the 2007-2018 Jeep Wrangler JK in 2-door and 4-door models.
The JK chassis code covers the 2007-2018 Wrangler. The TJ, LJ, YJ and the 2018 and later JL are different vehicles and are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

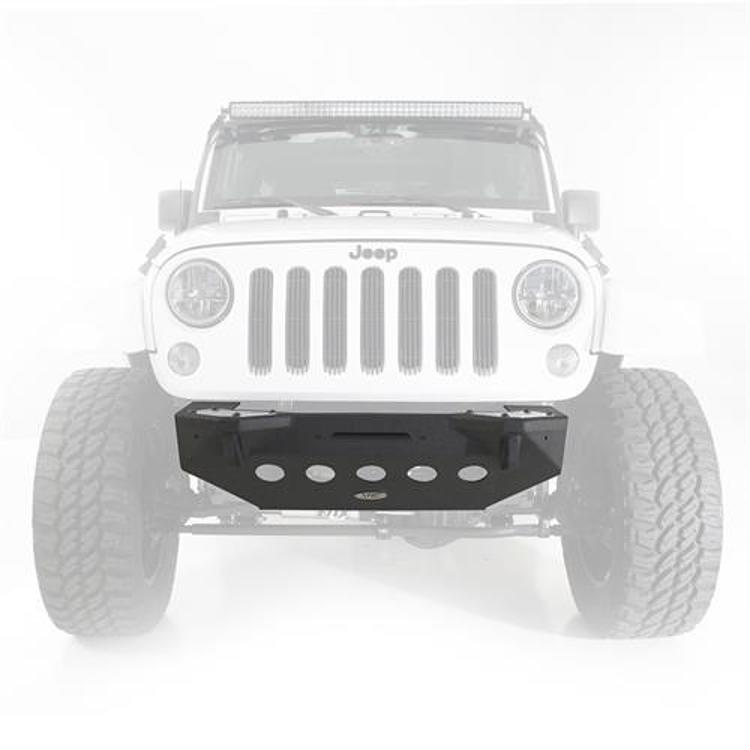

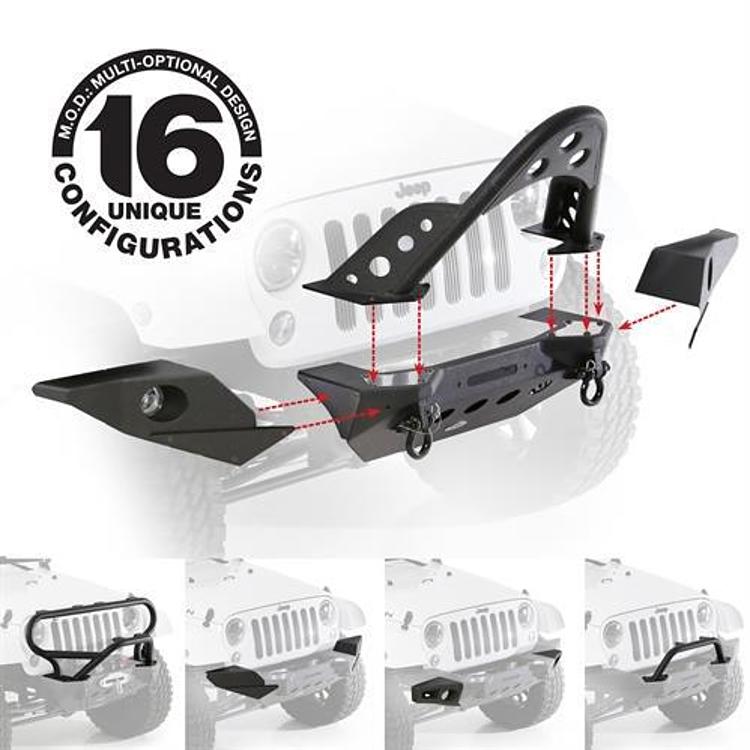

This part is the center section only. To complete the bumper you add an end plate in the width you want and an over rider, which can be the low profile bull bar (for example part 76821) or the high point stinger.
What’s included
- XRC M.O.D. modular center section with winch plate
- Solid D-ring mounts
Not included: the end plates, the over rider (bull bar or stinger), light mounts and the winch.
