Overview

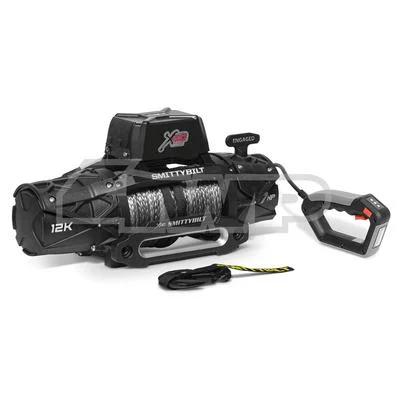

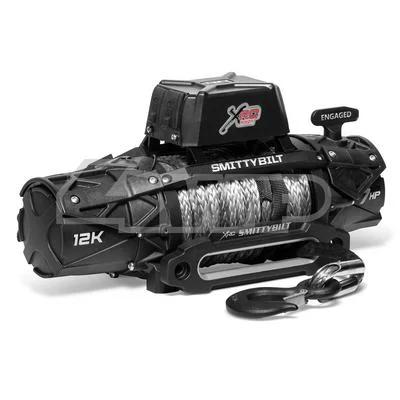

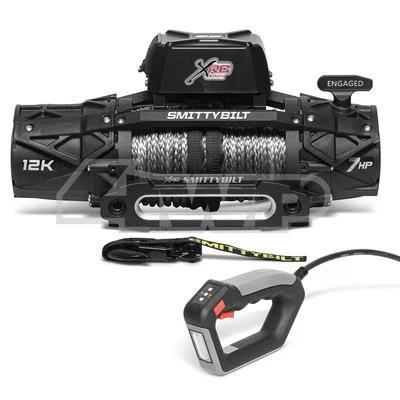

The Smittybilt 98612 is the XRC GEN3 12K Comp Series winch, rated for 12000 lb line pull and fitted with a synthetic cable. Smittybilt designed the GEN3 generation from the ground up around ease of use and power efficiency, and the Comp Series adds the synthetic line and an aluminum hawse fairlead.
The 7.0 hp motor draws less amperage under load and runs with a three-stage planetary gear system and forged gears. A silicon steel plate rotor is part of the drivetrain, and the winch is built to work in heavy rain.

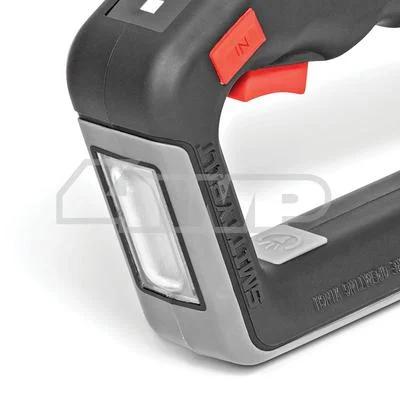

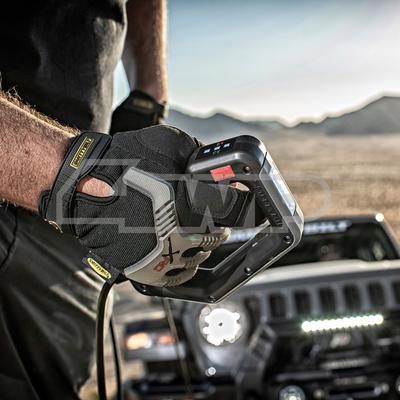

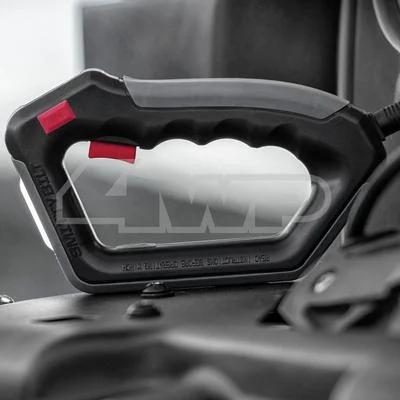

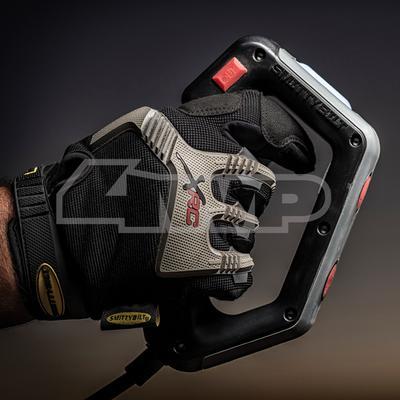

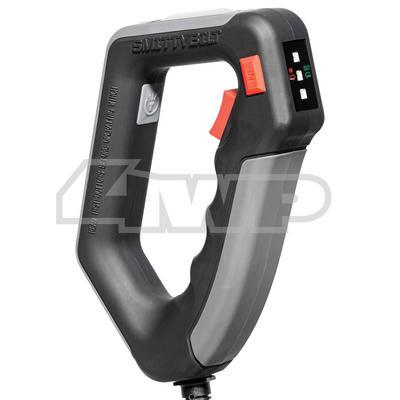

The remote control has a load indicator warning system, so the operator can see how much the equipment is carrying. Two magnets on the controller hold it to any metal surface when it is not in use, and a built-in flashlight helps when winching in the dark.
Key features
- 12000 lb line pull rating
- 7.0 hp motor, with a line speed increase of 12% over Gen2
- Three-stage planetary gear system with forged gears

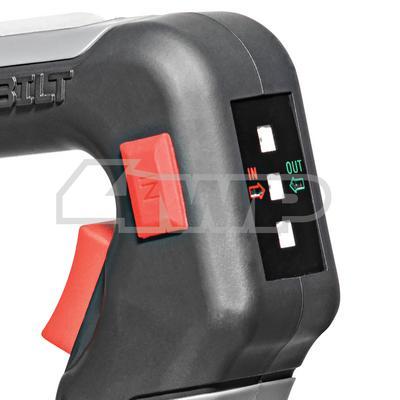

- Load indicator warning system on the remote
- Remote with a built-in flashlight and two magnets
- 12-volt power post on the control box

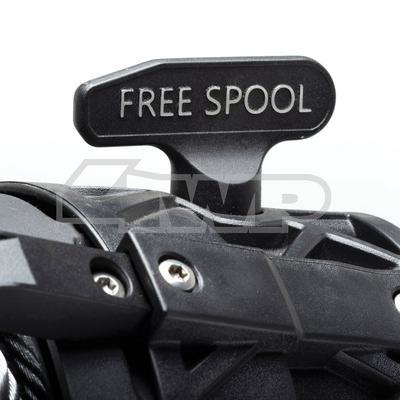

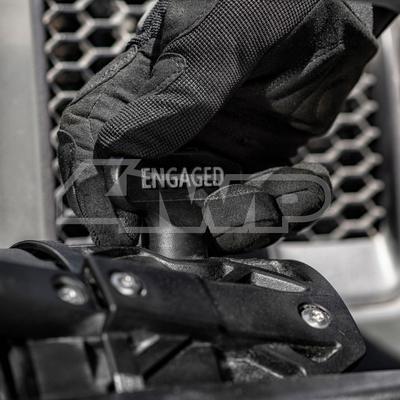

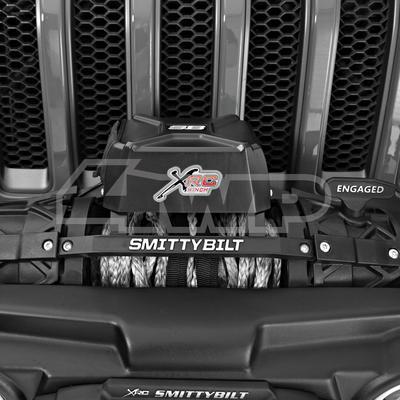

- High-visibility clutch lever showing engaged or free-spool status

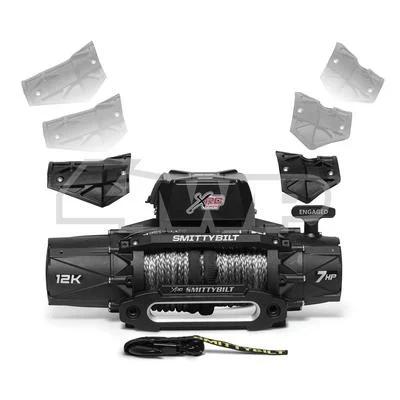

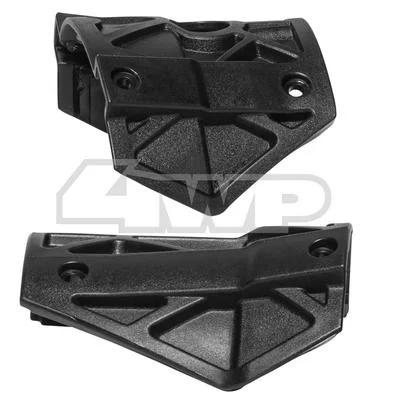

- Detachable body armor
Using a synthetic cable

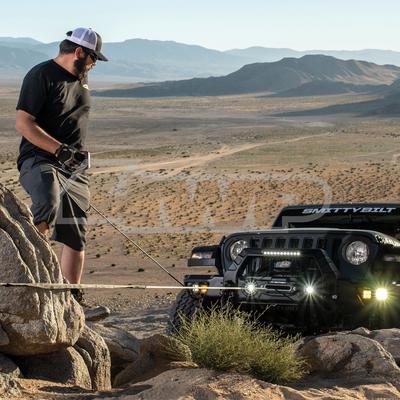

Synthetic cable is lighter than steel and easier to handle, but it needs careful use. It is sensitive to abrasion at the fairlead and at any sharp edge, so pad the line where it bends over a rock, bumper corner or stump. Keep the rope spooled under even tension to avoid crossovers that can nick the fibers.

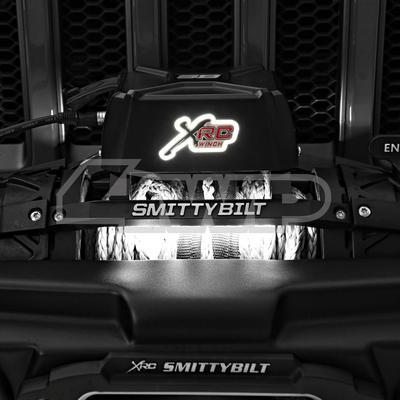

A hawse fairlead suits synthetic line because it has no moving parts to pinch the rope. Inspect the first few feet of line near the fairlead after each pull, since that section takes the most wear. Store the line dry and out of direct sun between trips.
If the winch is used often, consider a rated recovery strap and a snatch block so the pull can be redirected without putting side load on the cable.
- Pad the line over rocks and sharp edges
- Keep the rope under even tension when spooling
- Inspect the first few feet near the fairlead
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 98612 |
| UPC | 631410102505 |
| Line pull rating | 12000 lb |
| Motor | 7.0 hp |

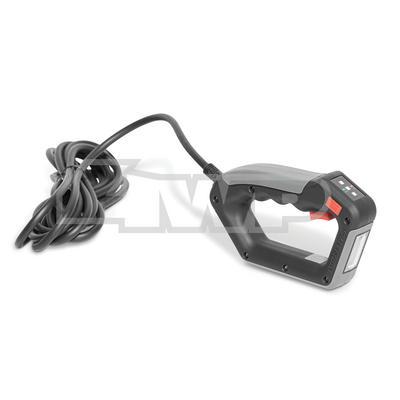

| Remote lead | 12 ft. |
| Fairlead | Aluminum hawse |
| Line type | Synthetic cable |
| Gear system | Three-stage planetary, forged gears |
| Rotor | Silicon steel plate |
| Power post | 12-volt on the control box |
| Warranty | Lifetime mechanical, 5 year electrical |
Vehicle fitment

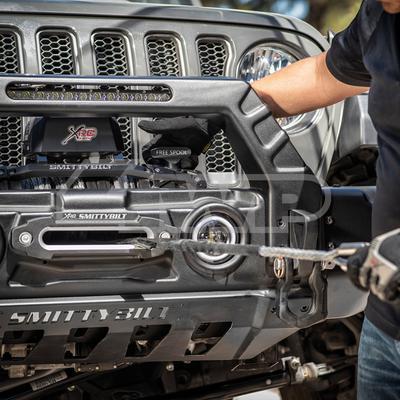

The winch is a universal-fit model, so the bumper, winch plate and mounting position on your vehicle decide whether it bolts on.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Route the remote’s leads and the 12-volt post away from the rope path and moving parts. Plan the control box position around the 12 ft. remote lead length.
What’s included
The remote control and the body armor are part of the package. Mounting hardware and the cable length aren’t itemized, so confirm them with Smittybilt before ordering.
