Overview

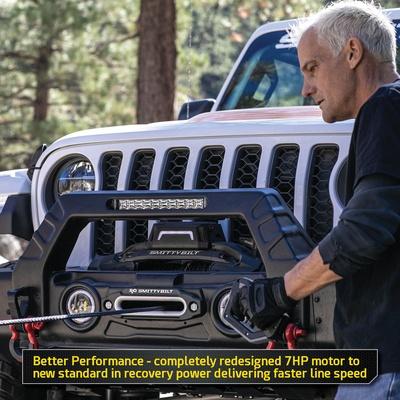

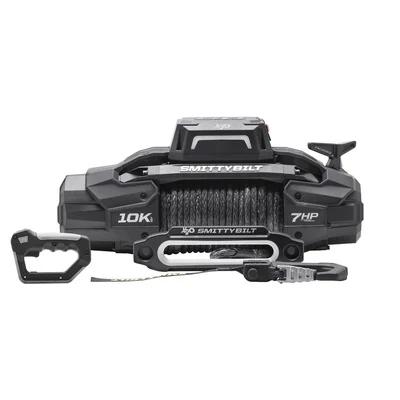

The Smittybilt 98810 is the X2O GEN3 10K winch, rated for 10000 lb line pull and supplied with synthetic rope. The GEN3 update adds a series-wound 7 hp motor, all-new forged gears and a waterproof 500 amp control box to the X2O line.

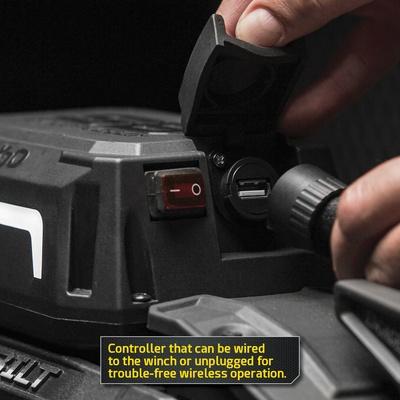

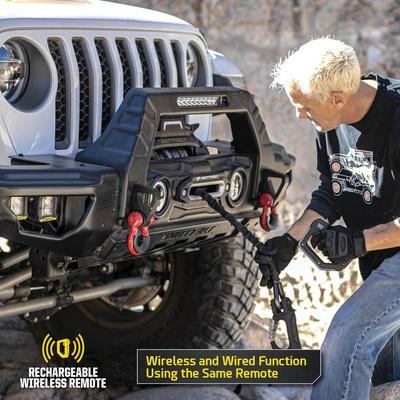

The winch is sealed to an IP68 rating and runs a 185:1 gear ratio. Its wireless controller has USB connectivity and can be wired to the winch or unplugged for wireless operation, with an 11 ft. remote lead.
The winch weighs 76 lb, so use that figure when choosing a mounting plate and checking the weight your bumper can carry.

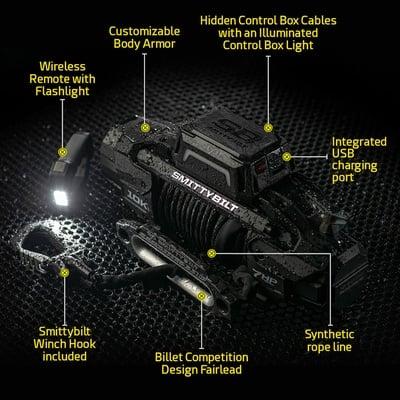

Key features
- IP68 waterproof rating
- Series-wound 7 hp motor, sealed
- All-new forged gears
- 500 amp control box, mountable in two locations

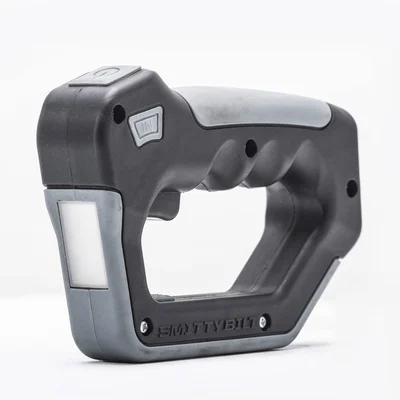

- Wireless controller with USB connectivity
- Synthetic rope standard, with a hawse fairlead
Choosing a mounting plate
The mounting plate is the link between the winch and the vehicle, so its choice matters as much as the winch itself. A plate has to carry the winch’s weight and the shock of a loaded pull, and it has to sit square against the bumper or frame. Measure the plate’s thickness and bolt pattern against the bumper before you commit to a mounting position.
Weight is the first thing to check. Add the winch’s weight to the weight of the controller, leads and any accessories, then confirm the bumper and mount can handle that load in front of the grille and radiator. A heavier front end changes steering and braking, so think about how the setup will feel on the trail as well as in the driveway.
Once the plate is chosen, plan the control box location and lead routing together. Keep the box clear of heat sources and out of the rope path, and leave enough slack at the leads that they do not pull on terminals when the vehicle flexes.
- Compare the winch weight with the bumper’s load rating
- Check the bolt pattern and plate thickness before buying
- Route leads so they do not pull on terminals
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 98810 |
| Line pull rating | 10000 lb |

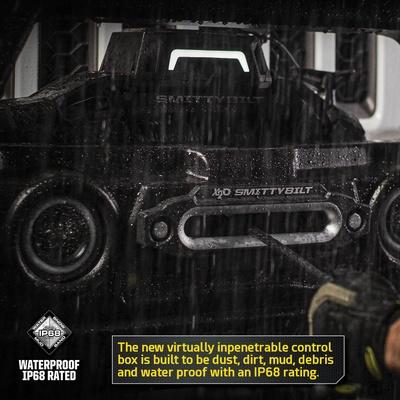

| Waterproof rating | IP68 |
| Motor | 7 hp, series wound, sealed |
| Gear ratio | 185:1 |
| Line type | Synthetic rope |

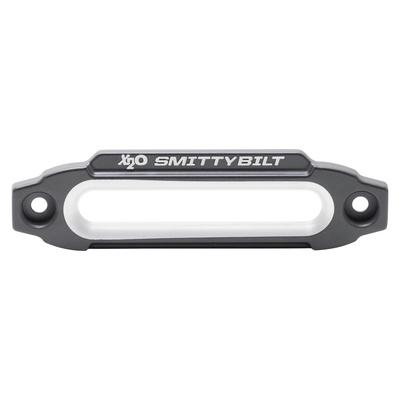

| Fairlead | Hawse |
| Remote lead | 11 ft. |
| Control box | 500 amp, completely waterproof, two mounting locations |
| Weight | 76 lb |
Vehicle fitment
The wireless controller is included. Confirm the mounting hardware and battery leads are on hand before starting the installation.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mount the 500 amp control box in one of its two mounting locations, and route the leads away from heat and moving parts. Keep hands and clothing clear of the rope whenever the winch is under load.
What’s included
The wireless controller is included. Mounting hardware and the battery leads aren’t itemized, so confirm them with Smittybilt before ordering.
