Overview

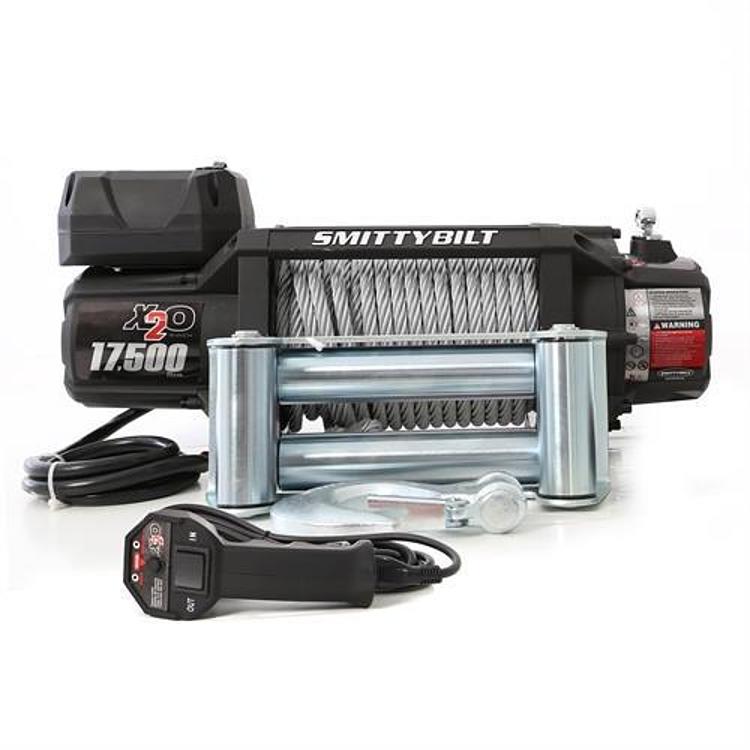

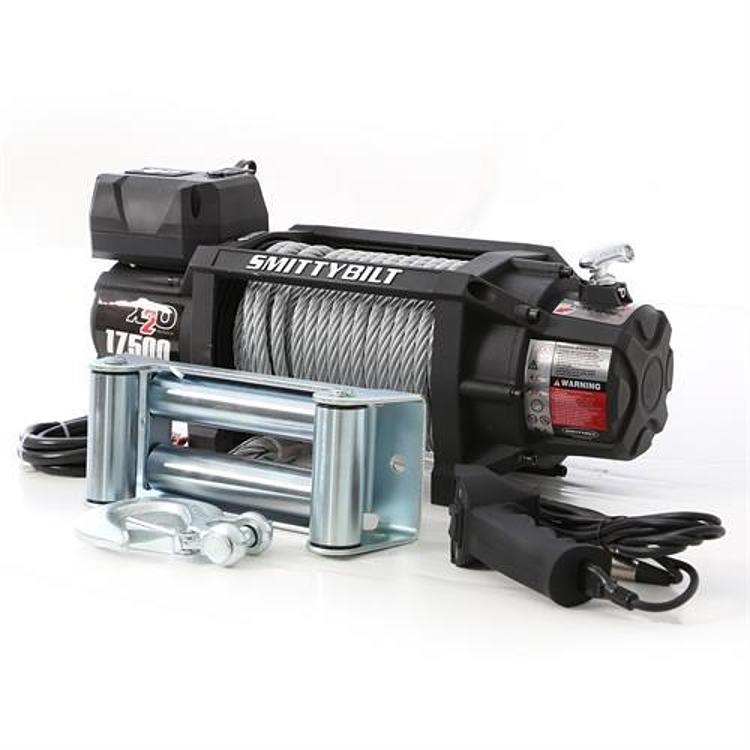

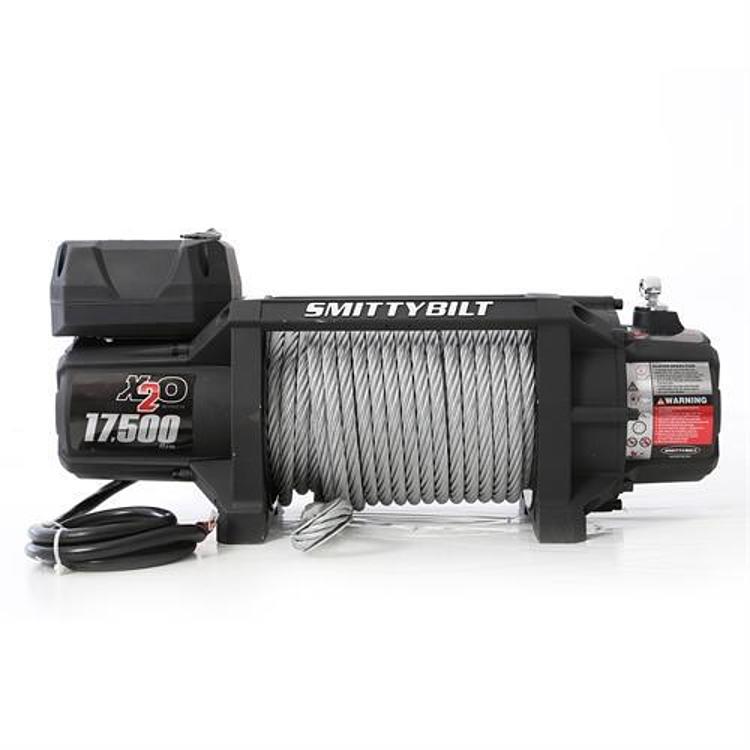

The Smittybilt X2O 17.5K GEN2, part number 97517, is a wireless electric winch with a 17500 lb single-line pull rating. It belongs to the GEN2 X2O line, which Smittybilt says has been enhanced in almost every area for increased performance and trouble-free operation.
The winch is built around a sealed, series-wound 6.6 hp motor and a three-stage planetary gear train. The 500 amp solenoid pack is completely waterproof and can be mounted in two locations, depending on the installation.
The controller can be wired to the winch or unplugged and used wirelessly. The winch carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty. A 17500 lb winch is heavy equipment, so check the mounting point and the cable’s condition before every recovery.
Key features
- 17500 lb rated line pull
- Sealed, series-wound 6.6 hp motor
- Three-stage planetary gear train
- Waterproof 500 amp solenoid pack, mountable in two locations

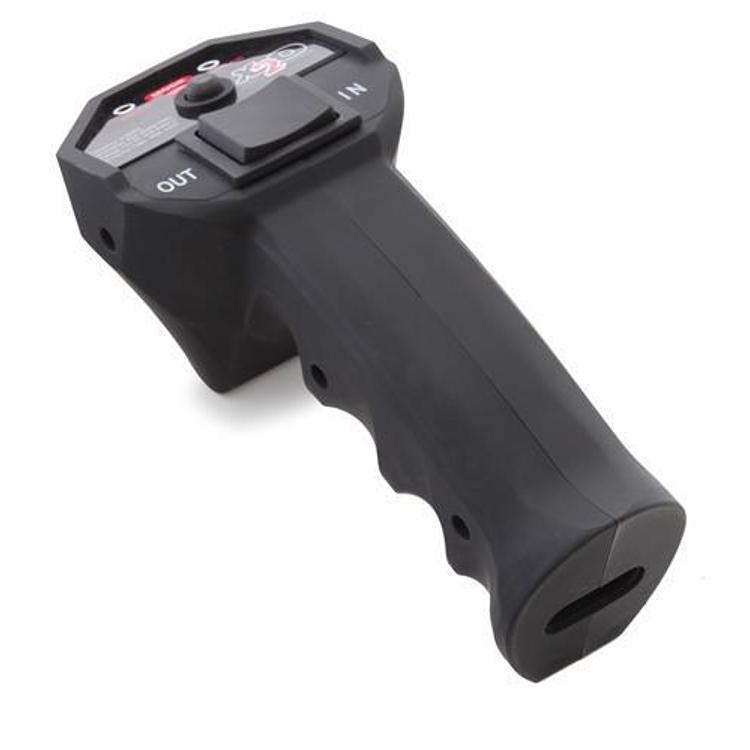

- Wired or wireless controller
- Roller fairlead
Mounting and load safety

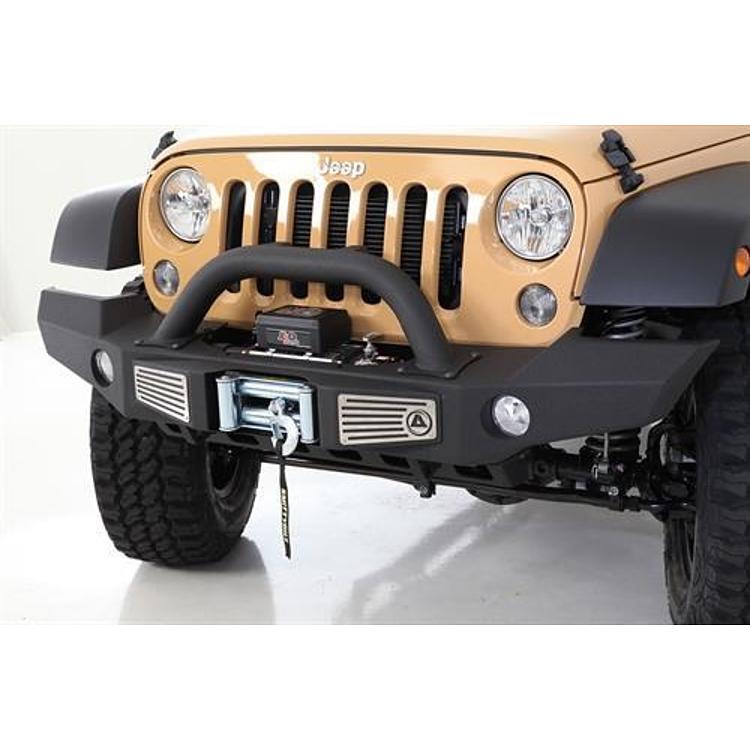

A winch of this class puts large forces into the mounting point, so the bumper or winch plate has to carry the load as well as the winch does. Use a mount that is designed for the winch’s rating, and never anchor the winch to a trailer hitch or a tow ball. Tighten all mounting bolts to the torque values in your service manual and recheck them after the first few recoveries.
Recovery practice matters as much as the hardware. Keep the cable under tension as it spools, and use a snatch block or tree strap only when the anchor point and shackles are rated for the load. Stand clear of the cable’s path and the rope or cable’s recoil zone whenever the winch is under load.
Inspect the mounting and the cable after each use. Look for loose bolts, cracked welds and a cable that has rubbed against a sharp edge. Replace worn parts before the next trip, since a failed anchor or cable can cause serious injury.
- Confirm the mounting point is rated for the winch
- Recheck mounting bolts after the first few recoveries
- Keep people out of the cable’s path under load
- Use rated shackles and anchor points
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 97517 |
| UPC | 631410119565 |
| Rated line pull | 17500 lb |
| Motor | 6.6 hp, series wound, sealed |
| Gear train | 3-stage planetary |
| Solenoid pack | 500 amp, waterproof, two mounting locations |
| Fairlead | Roller |
| Line type | Cable |
| Warranty | Lifetime mechanical, 3 year electrical |
Vehicle fitment
It is a universal fit winch. The bumper, winch plate and mounting position on your vehicle decide whether it bolts on.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The controller is part of the winch package. Confirm the mounting hardware and cable length before ordering.
