Smittybilt X2O 12K GEN2 12000lb Wireless Winch – 97512

Smittybilt

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 12,000 lb single-line pull, wireless electric winch
  • IP68 waterproofing, sealed 6.6 hp series wound motor, 265:1 gear ratio
  • 98.5 ft. of 3/8 in. braided steel cable with a 4-way roller fairlead
  • Part number 97512

Description

Overview

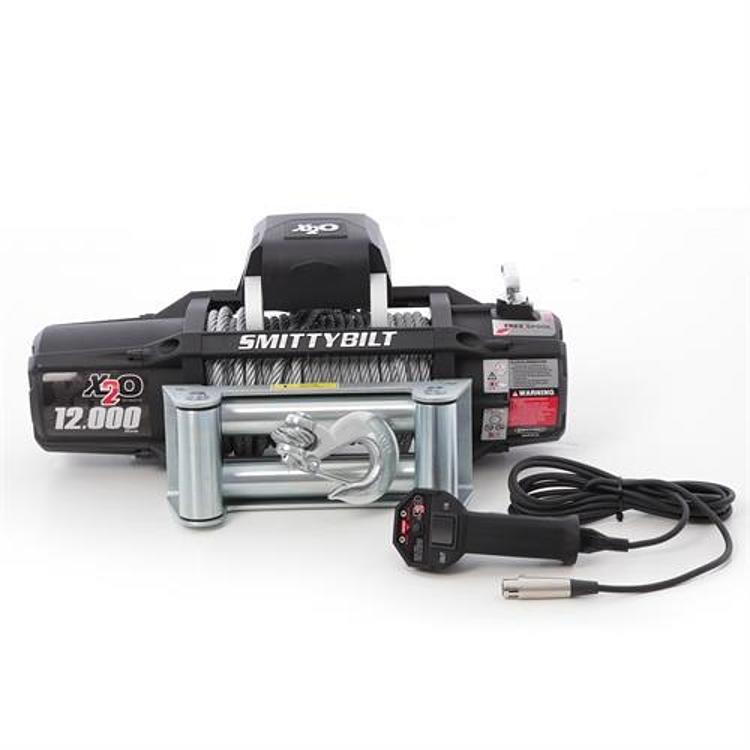

The Smittybilt X2O 12K GEN2, part number 97512, is a wireless electric winch rated for 12,000 lb single-line pull. It is part of Smittybilt’s X2O line, which Smittybilt says was updated for better performance and trouble-free operation in the GEN2 version.

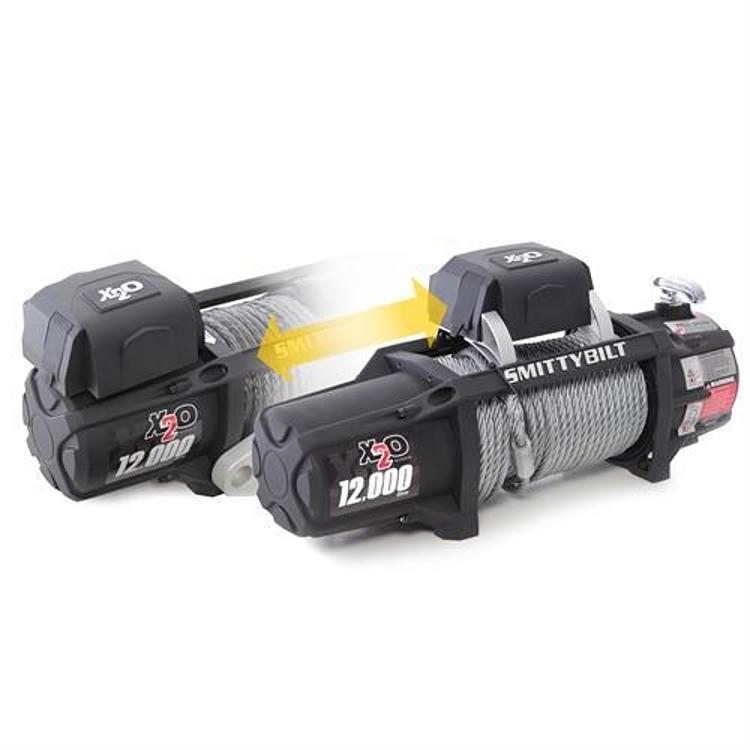

The winch uses a sealed 6.6 hp series-wound motor and a three-stage planetary gear train with a 265:1 ratio. The 500 amp solenoid pack is waterproof and can be mounted in two locations.

The controller can be wired to the winch or used wirelessly, so the same unit covers both setups. The winch carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty.

Key features

  • IP68 waterproofing rating
  • Sealed 6.6 hp series-wound motor
  • Three-stage planetary gear train with a 265:1 ratio
  • Sliding ring gear clutch and automatic out-of-drum brake

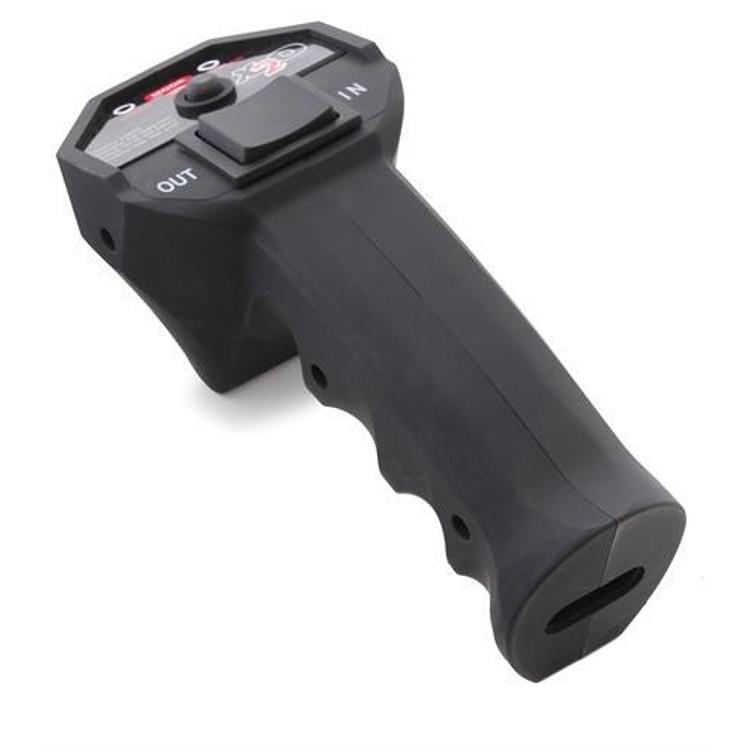

  • Integrated wireless remote, plus a 12 ft. wired lead

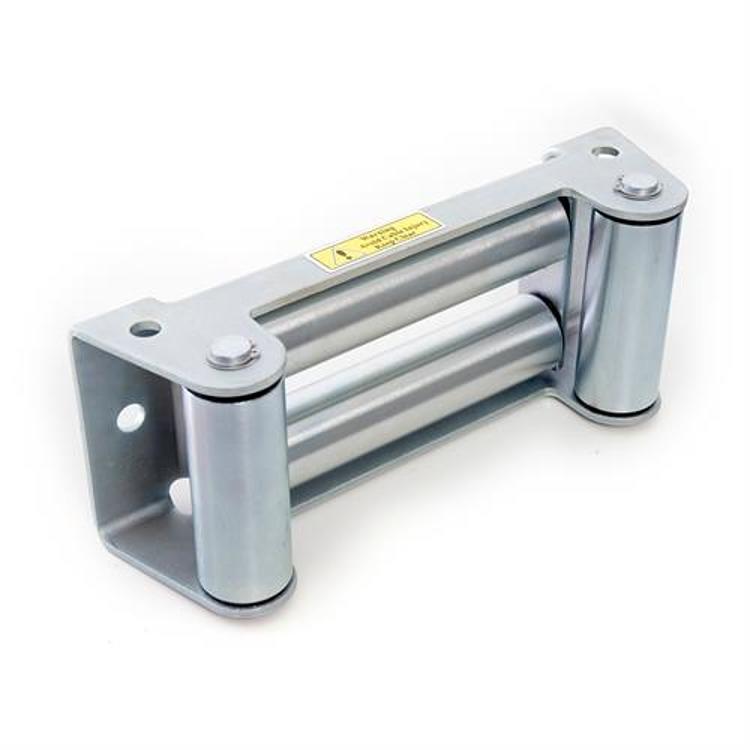

  • Four-way roller fairlead
  • Textured black finish

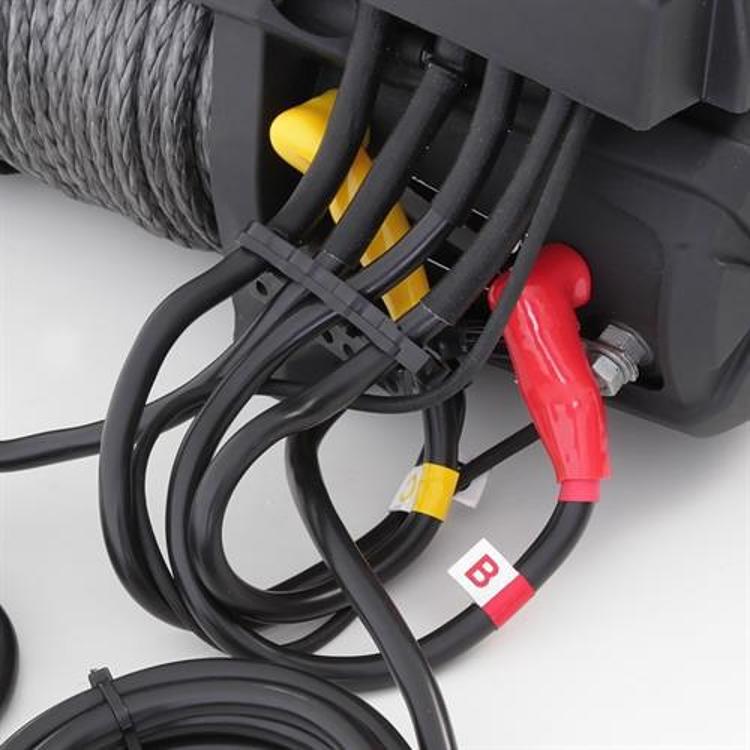

Electrical setup and wiring

A winch is only as dependable as the electrical path feeding it. Route the battery leads with clean, secure terminals and keep them clear of hot exhaust parts and moving suspension. Heavy current under load can heat up connections that were loose at install, so check torque on the terminals after the first few pulls.

The wired and wireless controls each have their place. Use the wired lead for setup and checks, and keep the wireless remote’s batteries fresh so it works when needed. Store spare fuses and a small kit of terminal cleaner in the vehicle, since corrosion is the most common cause of poor winch performance.

Inspect the cable and the drum at the same time you check the electrical connections. Look for kinks, broken strands and an uneven wrap, and make sure the fairlead is not rubbing the cable edge.

  • Check battery terminals after the first few pulls
  • Keep spare fuses and terminal cleaner in the vehicle
  • Look for uneven wraps and rubbing on the cable

Specifications

Brand Smittybilt
Part number 97512
UPC 631410119541
Rated line pull 12,000 lb (5,454 kg), single line
Motor 6.6 hp, series wound, sealed
Gear train 3-stage planetary, 265:1 ratio
Clutch Sliding ring gear
Brake Automatic out-of-drum
Drum diameter 2.5 in.
Cable 98.5 ft. of 3/8 in. diameter braided steel wire rope
Fairlead 4-way roller
Remote control Wired 12 ft. (3.7 m) lead, plus integrated wireless remote
Waterproofing IP68
Recommended battery 650 CCA minimum for winching
Battery leads 25 mm2, 72 in. (1.83 m)
Finish Textured black
Weight 99.0 lb (45.0 kg)
Mounting bolt pattern 10.0 in. x 4.50 in.
Overall dimensions (L x W x H) 22.3 in. x 5.4 in. x 9.4 in.

Vehicle fitment

It is a universal fit winch. The mounting bolt pattern and your bumper or winch plate determine whether it bolts on, so confirm those before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Smittybilt recommends a battery rated at 650 CCA minimum for winching, with battery leads listed at 25 mm2 and 72 in. long. Keep hands and clothing clear of the cable whenever the winch is under load.

What’s included

The remote control is included. Mounting hardware and winch plates aren’t itemized, so confirm what ships with the winch before ordering.

SKU: S/B97512 Category:

Specification

Shipping weight 99.00 lbs
Package dimensions 22.30 × 9.40 × 5.40 in
brands

Questions & Answers

What is the line pull rating of the Smittybilt X2O 12K GEN2?

The 97512 is rated for 12,000 lb (5,454 kg) single-line pull. It comes with 98.5 ft. of 3/8 in. braided steel wire rope, so check the rating against the heaviest load you expect to recover.

Is the Smittybilt 97512 waterproof?

Yes. It has an IP68 waterproofing rating and a sealed motor. The 500 amp solenoid pack is waterproof as well, which suits mud, water and wet conditions.

What battery does the 97512 need?

Smittybilt recommends a battery rated at 650 CCA minimum for winching. The battery leads are listed at 25 mm2 and 72 in. (1.83 m) long, so check the lead length against your battery location before installation.

How should the winch cable be maintained?

Keep the cable clean, spool it under tension, and inspect it for kinks, broken strands and fairlead wear before each use. Replace damaged cable promptly, since a damaged line can fail under load.
