Overview

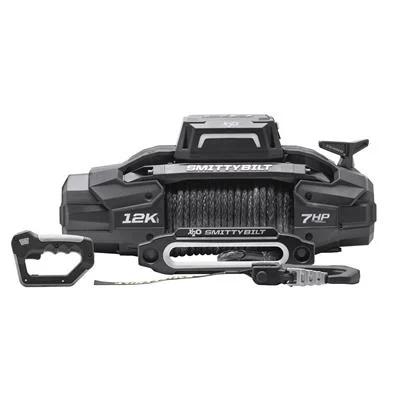

The Smittybilt 98812 is a GEN3 12K winch from the X2O line, rated for 12000 lb line pull and supplied with synthetic rope. It is the larger-capacity sibling of the 10K GEN3 model, using the same drivetrain features at a higher load rating.

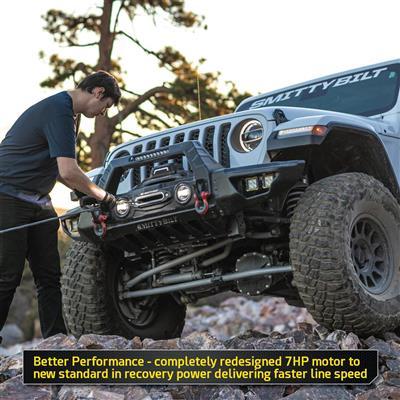

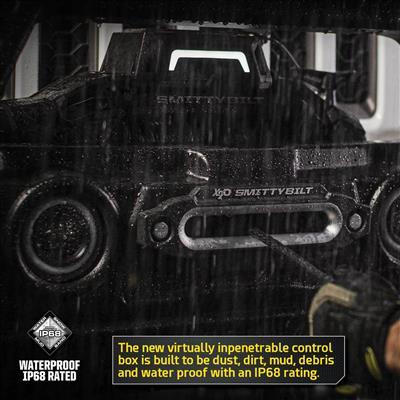

The GEN3 drivetrain uses a sealed, series-wound 7 hp motor with forged gears. The control box is waterproof at 500 amps and can be mounted in two locations, which gives flexibility in where the electrics sit.

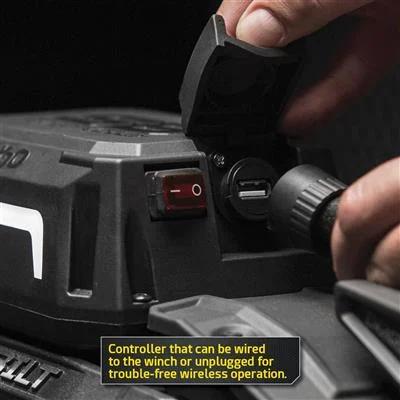

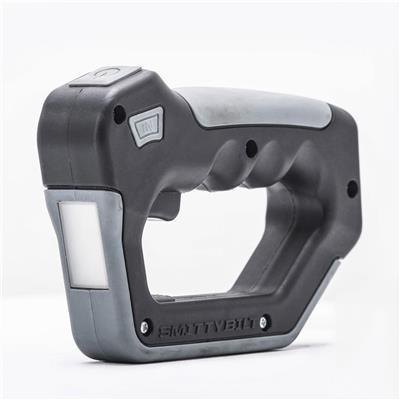

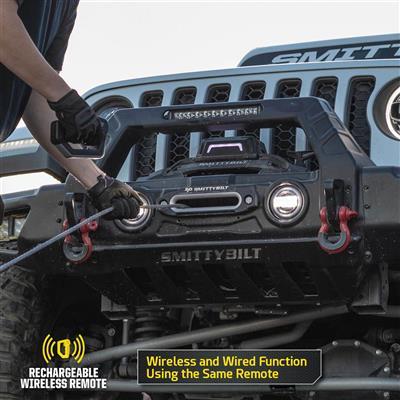

The controller is wireless and has USB connectivity. It can also be wired to the winch, and its listed lead is 11 ft. long.

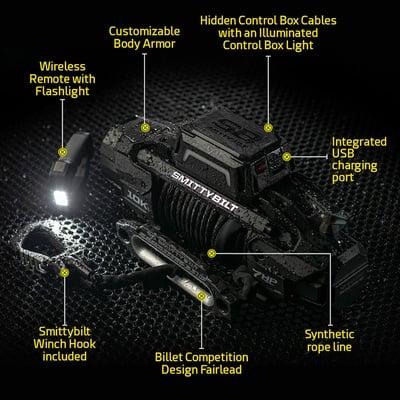

Key features
- 12000 lb line pull rating
- Series-wound 7 hp motor, sealed
- All-new forged gears
- Waterproof 500 amp control box

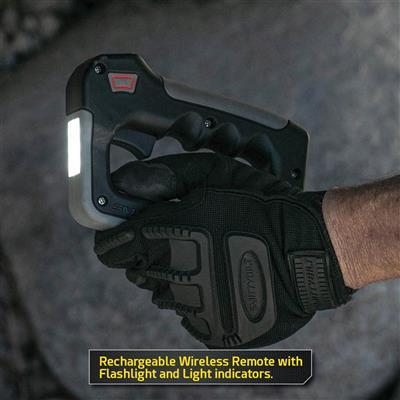

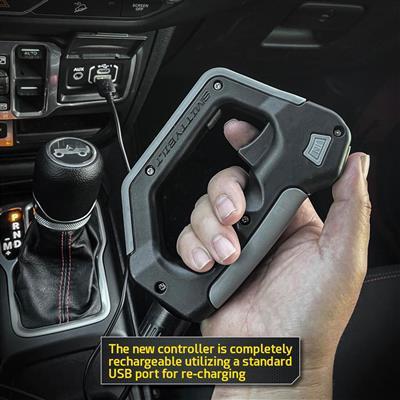

- Wireless controller with USB connectivity
- Synthetic rope with a hawse fairlead
Running the synthetic rope
Synthetic rope behaves differently from steel cable, and it needs different handling. It stretches less than many would expect, but it can be cut by sharp edges and worn by abrasion on rocks and tree bark. Use a rated tree saver or a snatch block with a smooth surface, and keep the rope off hot exhaust parts, since heat weakens synthetic fibers.
Spool the rope under light tension so the wraps lie flat on the drum. Loose, uneven wraps can bind and chafe the rope during the next pull. Wear gloves when handling the rope, and keep hands and loose clothing away from the drum while the winch is running.
Inspect the rope before and after each use. Look for cuts, fused or glazed fibers, and fuzzing near the hook end. Clean dirt and grit from the rope, and let it dry before storing it so mildew does not start inside the braid.
- Use a smooth tree saver or snatch block
- Spool under light tension for flat wraps
- Clean and dry the rope after use
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 98812 |
| Line pull rating | 12000 lb |
| Motor | 7 hp, series wound, sealed |
| Gears | Forged |
| Control box | 500 amp, waterproof, two mounting locations |
| Remote | Wireless, USB connectivity, 11 ft. lead |
| Line type | Synthetic rope |

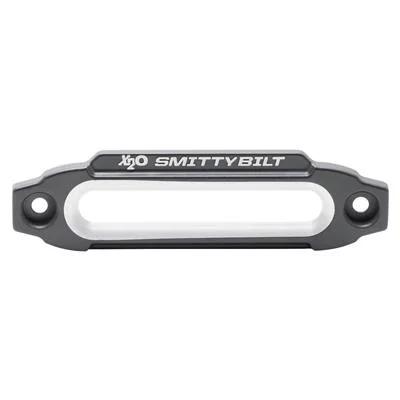

| Fairlead | Hawse |
Vehicle fitment
It is a universal fit winch. The mounting plate and bumper on your vehicle decide whether it bolts on, so confirm both before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Route the remote and control box leads so they stay clear of the rope and the fairlead. Keep people out of the rope’s path whenever the winch is loaded.
What’s included
The wireless controller is included. Mounting hardware and the cable’s exact length aren’t itemized, so confirm them with Smittybilt before ordering.
