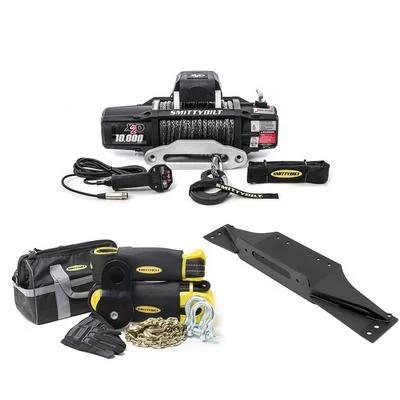

Smittybilt X2O 10 GEN2 Comp Series Recovery 10000lb Winch PAK – GEN2WINPAK8

Smittybilt

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 10000 lb X2O 10 GEN2 Comp Series winch with synthetic rope
  • Recovery accessory kit and a 1/4 in. winch plate for 1987 to 2006 Wrangler
  • Part number GEN2WINPAK8

Description

Overview

The Smittybilt GEN2WINPAK8 is a winch PAK built around the X2O 10 GEN2 Comp Series, a 10000 lb winch that uses synthetic rope and a hawse fairlead. The PAK also includes a recovery accessory kit and a winch plate that Smittybilt makes for Wrangler models from 1987 to 2006.

The X2O 10 GEN2 Comp Series uses a sealed 6.6 hp series-wound motor, a three-stage planetary gear system and a waterproof 500 amp solenoid pack that mounts in one of two locations. Synthetic winch rope comes with the Comp Series, and the controller can be wired to the winch or unplugged for wireless use.

The winch carries the Smittybilt Lifetime Warranty. Because the rope is synthetic, the PAK is lighter to carry on the trail than a steel-cable setup of the same capacity.

Key features

  • 10000 lb line pull rating
  • Synthetic rope with a hawse fairlead
  • Sealed 6.6 hp series-wound motor with three-stage planetary gears
  • Waterproof 500 amp solenoid pack, mountable in two locations
  • Remote control with a 12 ft. lead, wired or wireless

Before a recovery pull

Synthetic rope behaves differently from steel cable during a pull. It handles more easily by hand and is lighter to carry, but it can be damaged by abrasion, so keep it away from rocks, sharp edges and bare ground while it is loaded. A hawse fairlead guides the line straight and helps limit rubbing where the rope leaves the winch.

Pair the winch with a recovery strap or chain rated above the winch’s line pull, and use a rated snatch block when changing the direction of a pull. Keep the control box and leads routed away from heat and moving parts, since the solenoid pack carries the high current to the motor.

Between trips, wipe down the rope, check the hook and fairlead for grit, and confirm the plate bolts are still snug. Store the controller somewhere dry where it cannot be crushed in the storage box.

  • Inspect the rope before each trip for fraying or cuts
  • Keep the rope off rocks and sharp edges under load
  • Rinse mud and grit off the fairlead after use

Specifications

Brand Smittybilt
Part number GEN2WINPAK8
Line pull rating 10000 lb
Line type Synthetic rope
Fairlead Hawse
Remote control 12 ft. lead
Motor 6.6 hp, series wound, sealed
Winch plate thickness 1/4 in., powder coated

Vehicle fitment

The Smittybilt Winch Plate is made specifically for the 1987 to 2006 Wrangler, which covers the YJ, TJ and LJ generations of the Jeep Wrangler. The plate works with the factory bumper or aftermarket bumpers that require winch plates.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check that your bumper is the factory unit or an aftermarket bumper that needs a winch plate before installing the plate. The plate is 1/4 inch thick and powder coated for corrosion resistance.

What’s included

The accessory kit includes heavy-duty gloves, a recovery chain, tow straps, a D-ring and a snatch block. The winch plate fits 1987 to 2006 Wrangler models. Check the rest of the PAK contents against your installation before starting.

SKU: S/BGEN2WINPAK8 Categories: ,

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All
Jeep Wrangler (YJ) likely fits1987–1995All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Wrangler does the GEN2WINPAK8 winch plate fit?

The winch plate is made for the 1987 to 2006 Wrangler, which covers the YJ, TJ and LJ generations of the Jeep Wrangler. Confirm your model year before ordering.

Does the winch plate work with an aftermarket bumper?

Yes. The plate works with the factory bumper and with aftermarket bumpers that require winch plates. Check your bumper's mounting before installation.

What rope does the PAK's winch use?

The line type is synthetic rope. The Comp Series pairs that synthetic winch rope with the original X2O features, and the fairlead is a hawse.

How do I tell if the synthetic rope needs replacing?

Replace the rope if you see cut or fused strands, a flattened or glazed section, or exposed core near the hook end. Heat from a long pull or a rope run over an edge are common causes. Inspect it after every hard recovery.
