Smittybilt XRC 12K GEN2 Comp Series 12000lb Winch – 98412

Smittybilt

Shop Smittybilt Winchs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 12000 lb XRC GEN2 Comp Series winch with 79 ft. of 3/8 in. synthetic rope
  • IP67 rating, 6.6 hp series-wound motor, 193.2:1 gear ratio
  • Hawse fairlead and included remote control
  • Part number 98412

Description

Overview

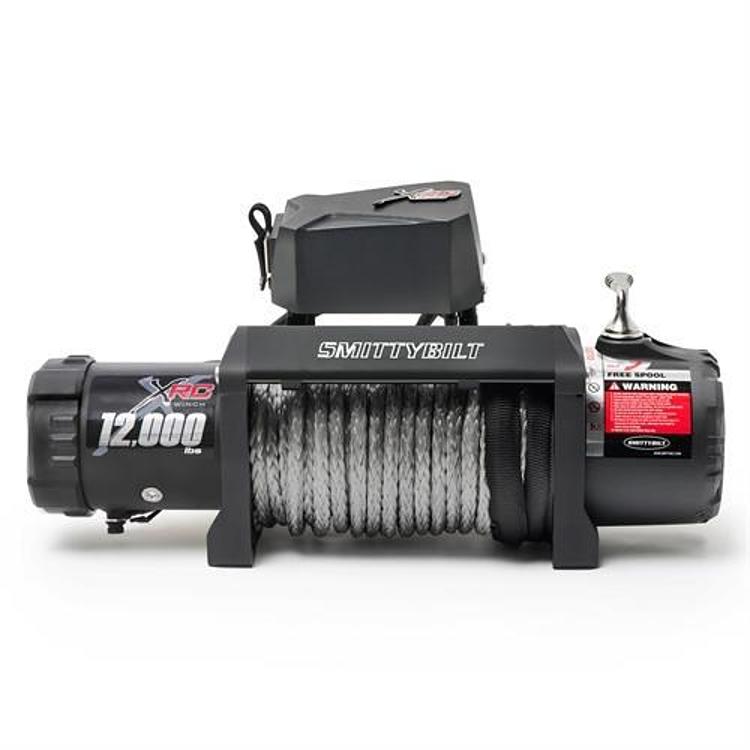

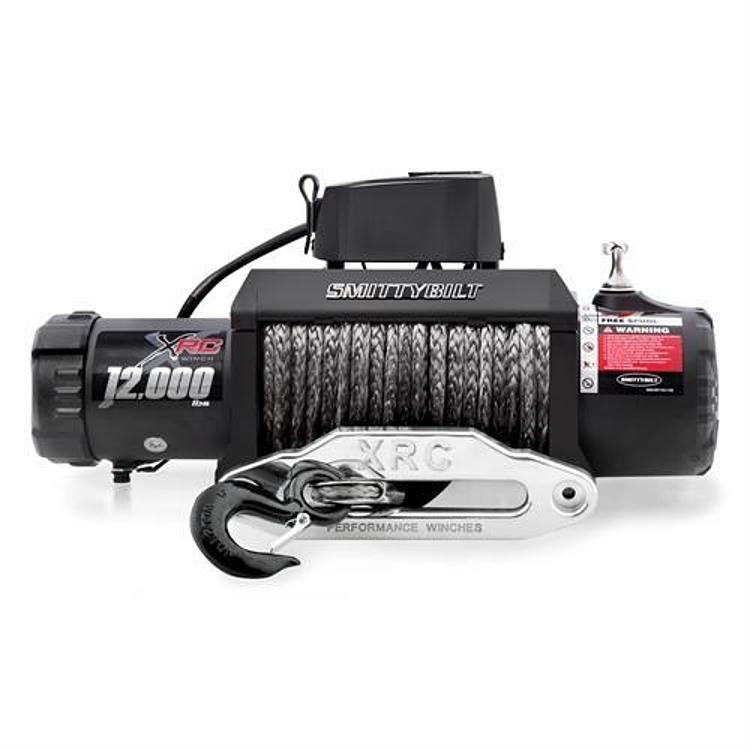

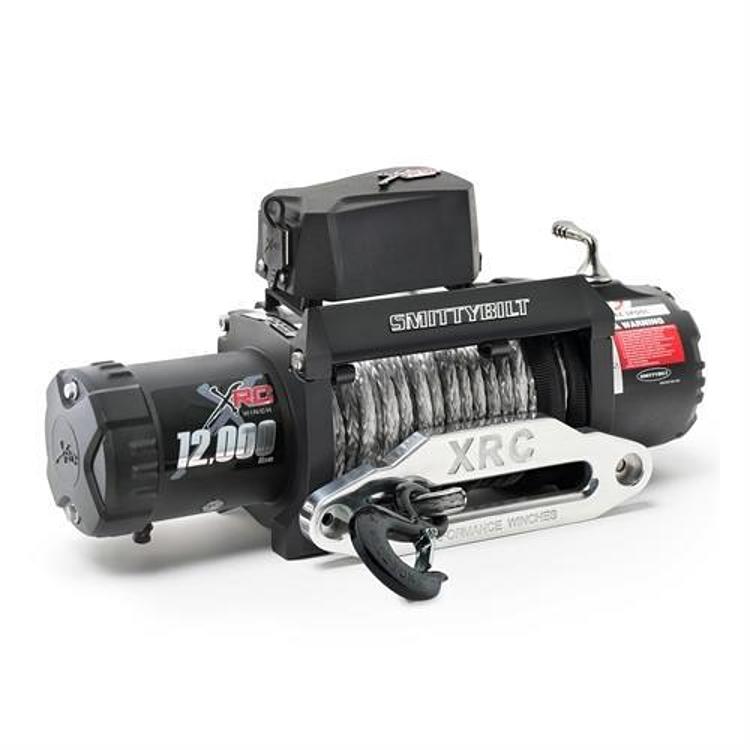

The Smittybilt 98412 is the XRC 12K GEN2 Comp Series winch, rated for 12000 lb single-line pull and fitted with 79 ft. of 3/8 in. synthetic rope. It is the synthetic version of the XRC GEN2 range, which covers capacities from 9,500 lb to 17,500 lb.

The winch uses a 6.6 hp series-wound motor with a three-stage planetary gear train and a 193.2:1 gear ratio. It has an IP67 waterproofing rating and a textured black finish.

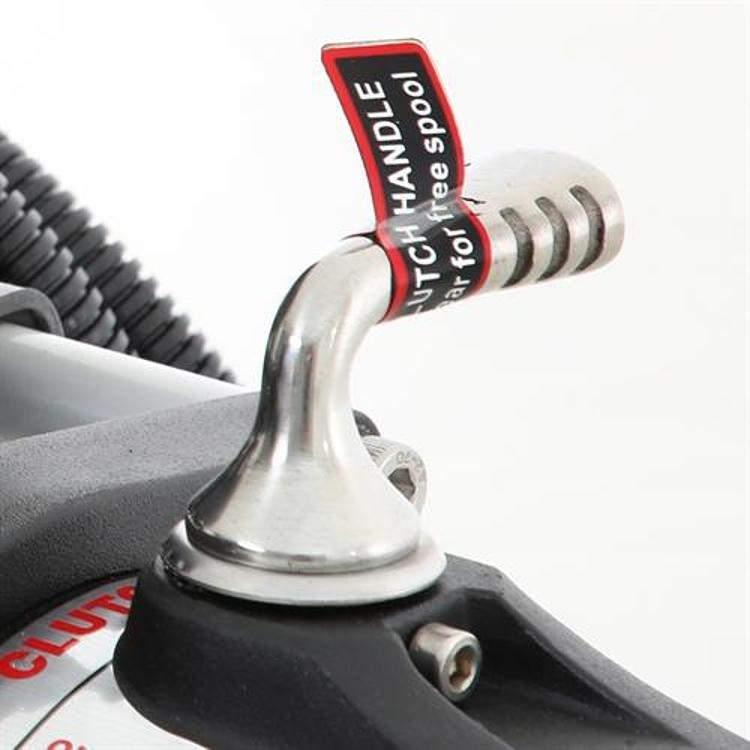

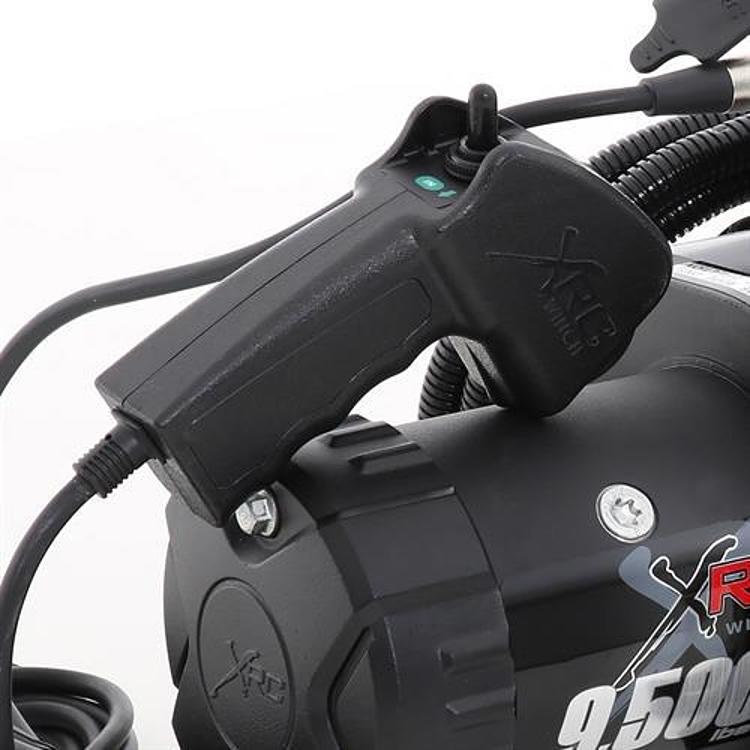

The hawse fairlead suits synthetic rope, and the remote control is included with a 12 ft. lead. The winch has a sliding ring gear clutch and an automatic in-drum brake, and Smittybilt lists its drum diameter as 2.5 in.

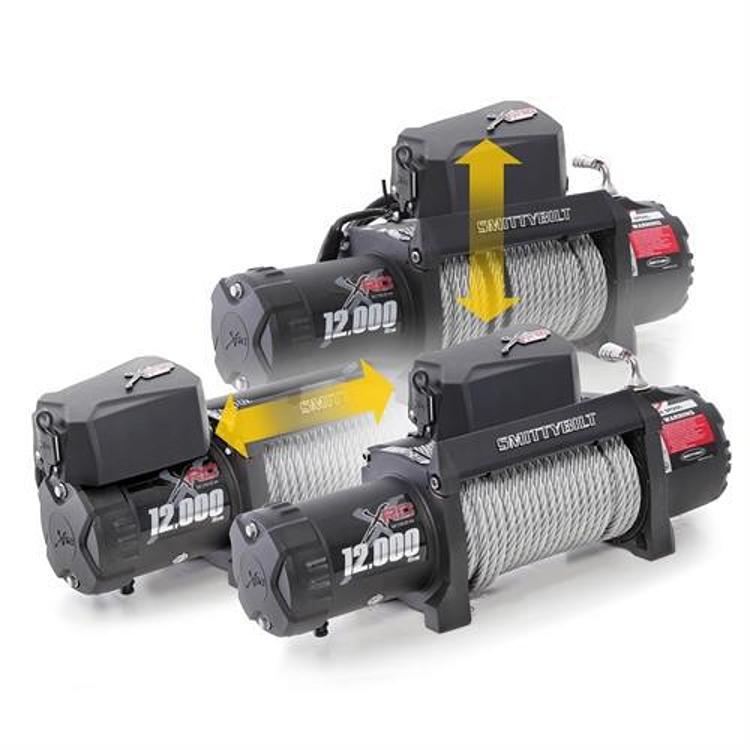

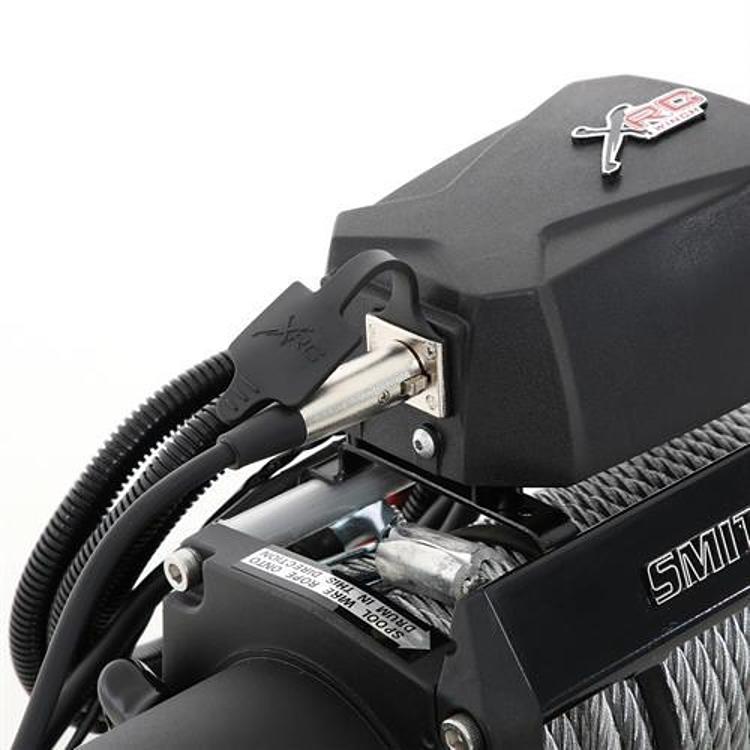

The XRC GEN2 winches share a heavy-duty controller, a forged steel tow hook and an aluminum crossbar design. The Comp Series adds synthetic rope and a hawse fairlead, and it carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty.

Key features

  • 12000 lb single-line pull rating
  • Synthetic rope with a hawse fairlead
  • Series-wound 6.6 hp motor
  • Three-stage planetary gears with a 193.2:1 ratio
  • IP67 waterproofing rating

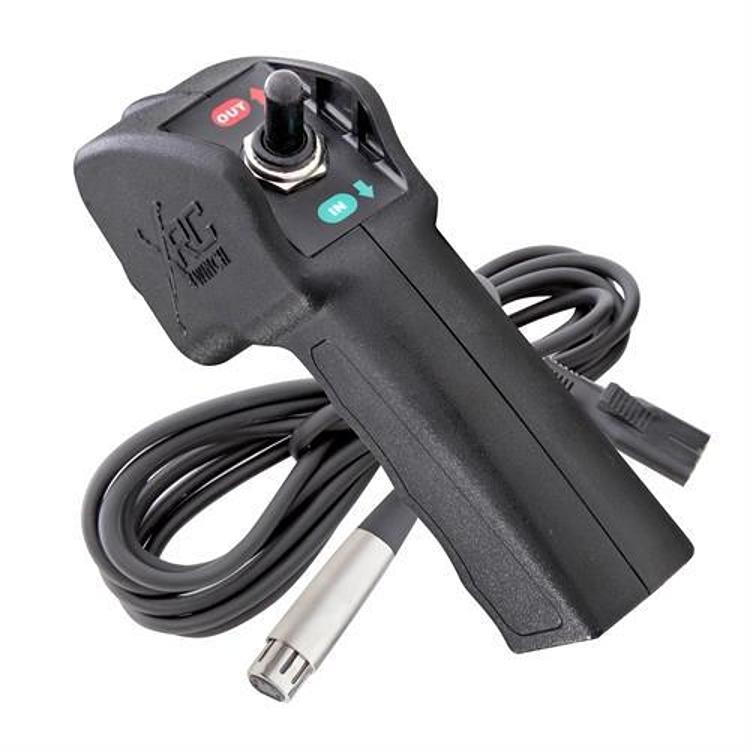

  • Remote control included, with a 12 ft. lead

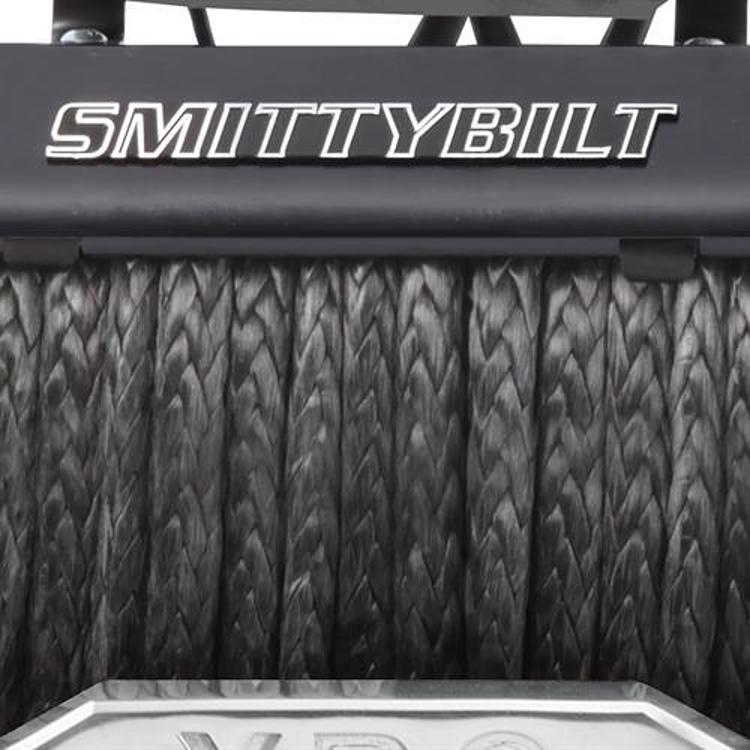

Synthetic rope care

Synthetic rope behaves differently from steel cable. It is lighter to handle, it resists kinking and it does not hold heat the way metal does. It can be damaged by abrasion, so keep it away from rocks and sharp edges, and use a rock guard or fairlead when the line runs across a bumper edge. Friction heat can weaken the fibers, so avoid letting the rope drag under load.

Inspect the rope before and after every use. Look for cut or fuzzy strands, glazed areas and discoloration, and check the section near the hook end, where wear tends to concentrate. Keep the rope dry and out of direct sunlight when storing it, and avoid stepping on the line. Replace it if damage is found rather than trying to repair a worn section.

  • Use a hawse fairlead that suits synthetic rope
  • Keep the rope out of direct sunlight in storage
  • Store the rope dry and loosely coiled

Specifications

Brand Smittybilt
Part number 98412
UPC 631410119527
Rated line pull 12,000 lb (5,454 kg), single line
Motor 6.6 hp, series wound
Gear train 3-stage planetary, 193.2:1 ratio
Clutch Sliding ring gear
Brake Automatic in-drum
Drum diameter 2.5 in.
Cable 79 ft. of 3/8 in. diameter synthetic rope

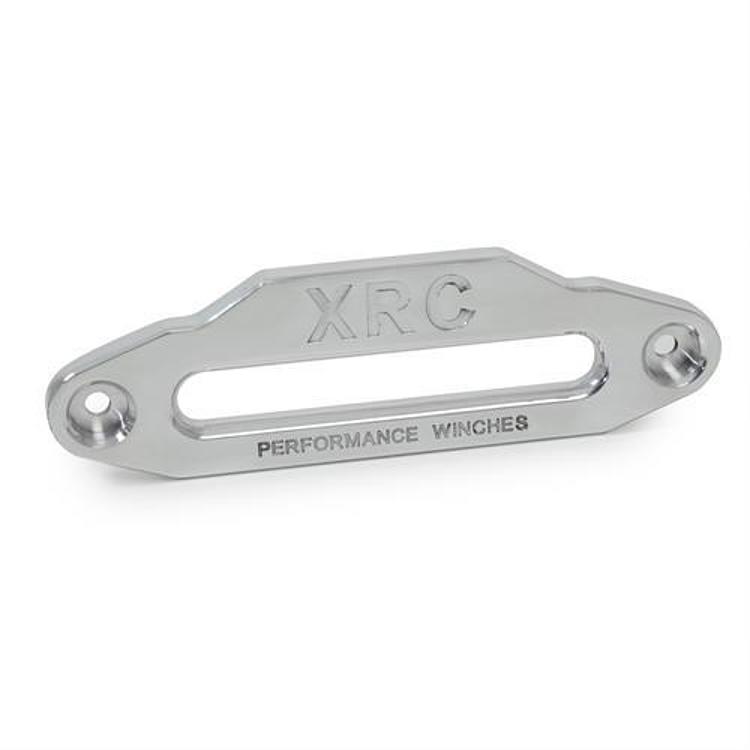

Fairlead Hawse
Remote control Included, 12 ft. (3.7 m) lead
Waterproofing IP67
Recommended battery 650 CCA minimum for winching
Battery leads 25 mm, 72 in. (1.83 m)
Finish Textured black
Weight 51.0 lb (23.1 kg)
Mounting bolt pattern 10.0 in. x 4.50 in.
Overall dimensions (L x W x H) 22.3 in. x 6.4 in. x 9.4 in.

Vehicle fitment

Fit depends on the bolt pattern and the bumper or winch plate on your vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Smittybilt recommends a battery rated at 650 CCA minimum for winching. The battery leads are listed at 25 mm and 72 in. long, so check the lead length against your battery location before installation.

What’s included

The remote control is included. Mounting hardware isn’t itemized, so confirm the contents with Smittybilt before ordering.

SKU: S/B98412 Category:

Specification

Shipping weight 66.00 lbs
Package dimensions 22.30 × 9.40 × 6.40 in
brands

Questions & Answers

Is the Smittybilt 98412 synthetic rope or cable?

Synthetic rope. The 98412 is the Comp Series version of the XRC 12K GEN2, with 79 ft. of 3/8 in. synthetic rope and a hawse fairlead.

What is the IP rating of the 98412?

Yes. The 98412 has an IP67 waterproofing rating and a sealed series-wound motor, so it is built to handle wet and muddy recovery work.

What battery does the 98412 need?

Smittybilt recommends a battery rated at 650 CCA minimum for winching. The battery leads are listed at 25 mm and 72 in. (1.83 m), so check the lead length before installation.

How do I tell when synthetic winch rope needs replacing?

Replace the rope when you see cut or fuzzy strands, glazed or hardened spots, or discoloration that does not wash out. Damage near the hook end and any section that has run over sharp edges also call for replacement. Inspect after each recovery to catch wear early.
