Overview

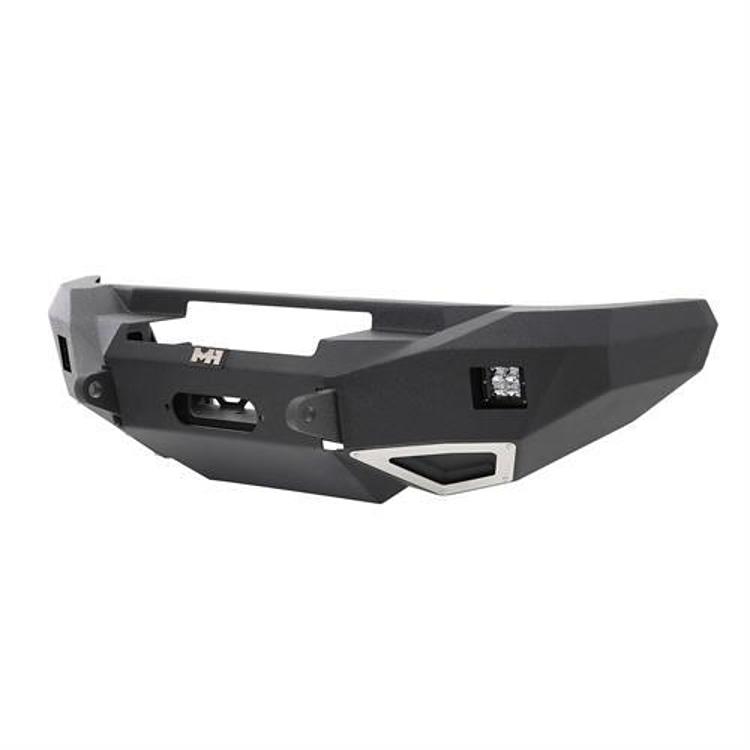

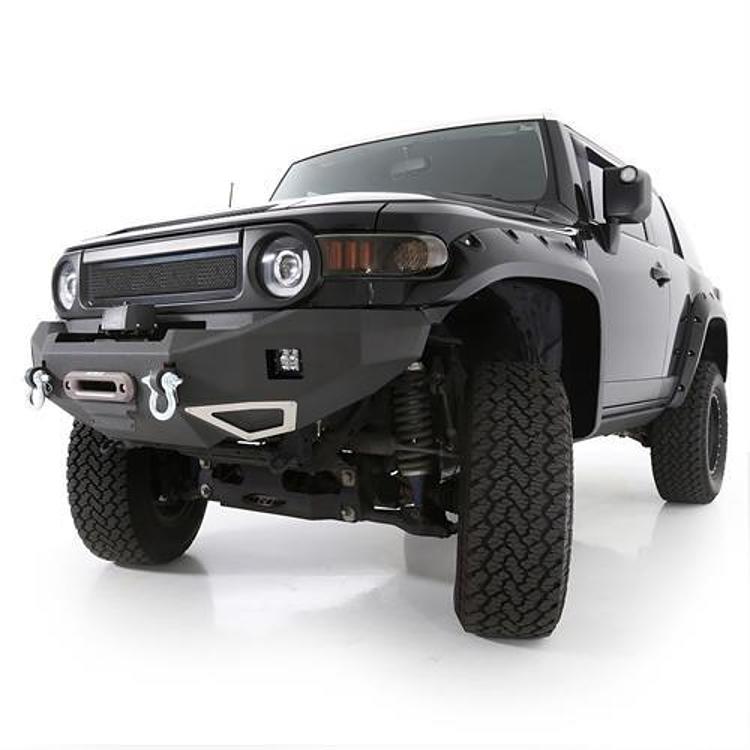

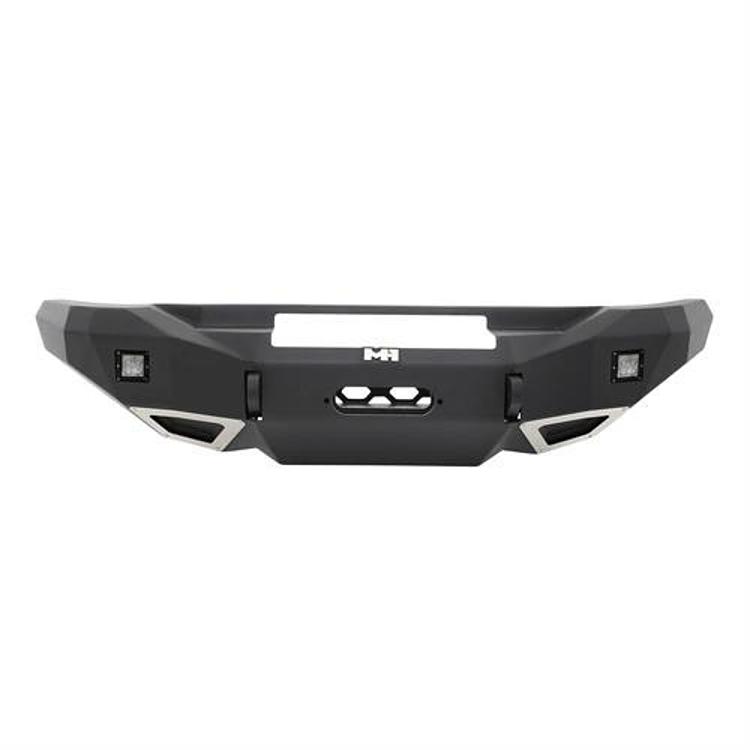

The Smittybilt M1 Toyota FJ Cruiser winch mount front bumper, part number 612850, is a full-width black steel front bumper with D-ring mounts and a light kit. The M1 is made from 3/16 inch cold rolled steel with 1/4 inch mounting plates and a two-stage powder coat.
The solid plate center section wraps the frame horns and lower crossmember. The winch mount system is rated for up to 16,500 lb and the bumper includes 7/8 inch solid D-rings and Ultra Bright driving and fog lights. It bolts on completely with no drilling.
Key features
- Black powder coat over 3/16 inch cold rolled steel with 1/4 inch mounting plates
- Solid plate center section wraps the frame horns and lower crossmember
- Winch mount system included, rated up to 16,500 lb
- 7/8 inch solid D-rings welded on the inside and out
- Ultra Bright driving and fog lights
- Complete bolt-on installation with no drilling
Off-Road Use and Bumper Clearance
A front bumper with a winch mount changes the approach and departure angles of a vehicle, and the front overhang matters on steep trails. Before heading off-road, check how the bumper sits relative to the ground and the front tires at full steering lock. Lights and D-rings can catch brush, so confirm they are seated firmly and that the wiring is protected.
Steel bumpers protect the radiator and front suspension in low-speed contact, but they also add weight to the nose. Inspect the bumper welds, mounts and light housings after rough trips, and re-check the bolts after the first few outings. Keep the powder coat repaired where rock contact has chipped it.
- Check approach and departure clearance before trail use
- Confirm light housings and wiring are secure after rough trips
- Inspect welds and mounts periodically
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 612850 |
| UPC | 631410102680 |
| Product type | Front bumper, M1 series |
| Position | Front |
| Width | Full |
| Material | Steel, 3/16 inch with 1/4 inch mounting plates |
| Finish | Powder coat, black |
| Winch capacity | Up to 16,500 lb |
| Winch mount | Included |
| D-ring mounts | 7/8 inch, included |
| Light mounts | Included |
| Fit type | Direct fit |
Vehicle fitment
It is made for the Toyota FJ Cruiser. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm fit for your FJ Cruiser’s year before ordering. The M1 bumper for the Toyota Tundra is a different part, 612840.
Installation notes
The M1 is a complete bolt-on that needs no drilling. The bumper includes its winch mount system, so a winch can be added without further brackets.
What’s included
- M1 front bumper in black powder coat
- Winch mount system
- 7/8 inch solid D-ring mounts
- Ultra Bright driving and fog lights
Not included: the winch.
