Overview

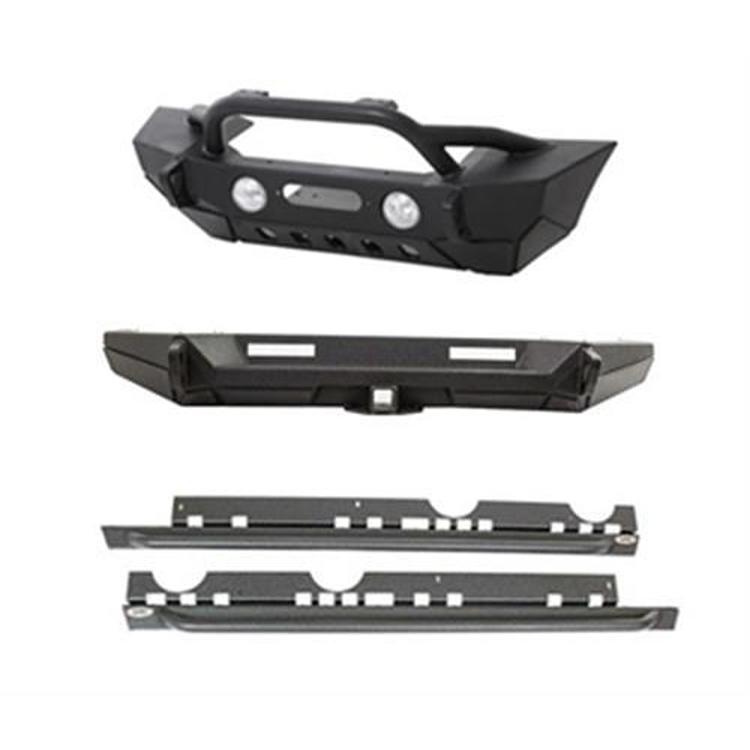

The Smittybilt XRCJK4.1 is an XRC Gen2 package for 4-door models that combines a front stubby bumper, a rear bumper and rocker guards. The parts are made from 3/16″ solid plate and finished in a two stage matte black powder coat.

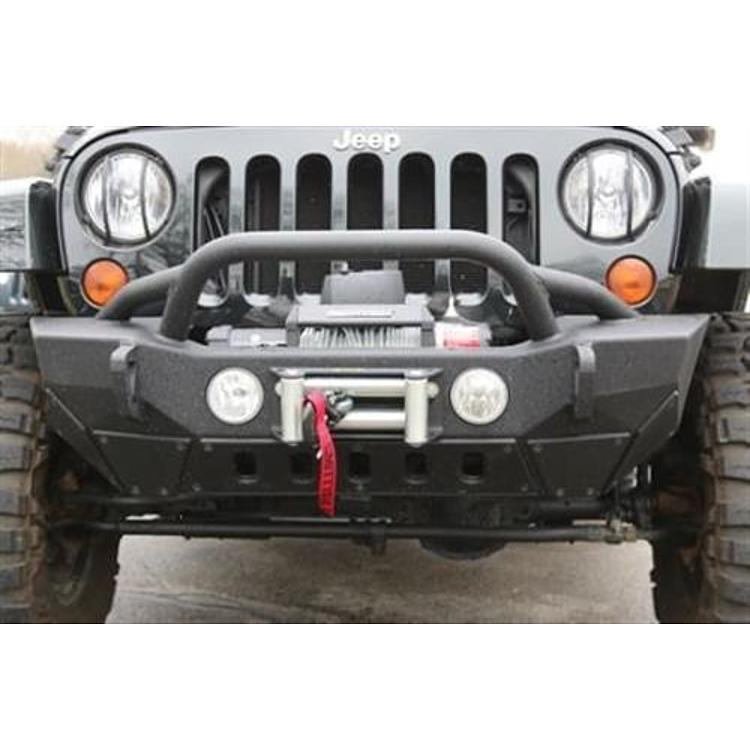

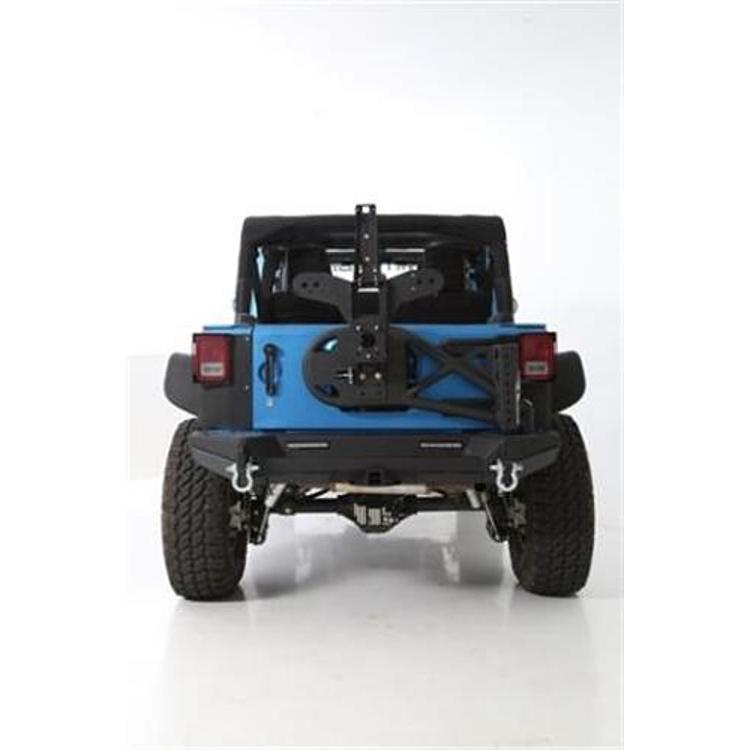

The XRC Gen 2 Max front stubby bumper has a high approach angle and raised corners for ground clearance, with fog light cutouts. It is winch ready for winches up to 10,000 lb, and the stinger has light tabs for up to two 9 inch lights. The next generation XRC rear bumper has raised corners that suit oversized tires, with solid D-ring mounts that include an integrated recovery point.
Smittybilt also describes 3/16 solid plate parts formed to the vehicle, with a 1.75 over rider tube for extra protection. It gives the package a 5 year limited warranty and says those parts bolt up to factory holes without drilling.
Key features
- Front stubby bumper with raised corners and fog light cutouts
- Winch ready for winches up to 10,000 lb
- Rear bumper designed for greater approach and departure angles
- Solid D-ring mounts with an integrated recovery point
- Plate parts with a 1.75 over rider tube for extra protection
- 3/16″ solid plate with two stage matte black powder coat
- 5-year limited warranty
Choosing lights and winch gear
Front bumpers with light tabs and winch mounts depend on the wiring and mounting gear you add. Light tabs take up to two 9 inch lights, so plan mounting brackets and wiring to suit the stinger before installing the bumper. Planning the harness route early keeps the wiring clean.
Winch selection should start with the rated pull and the weight of the winch itself. A winch-ready bumper still needs a suitable mounting plate, a fairlead and recovery shackles, which are not part of this package. Choose shackles and a fairlead rated for your winch and recovery load.

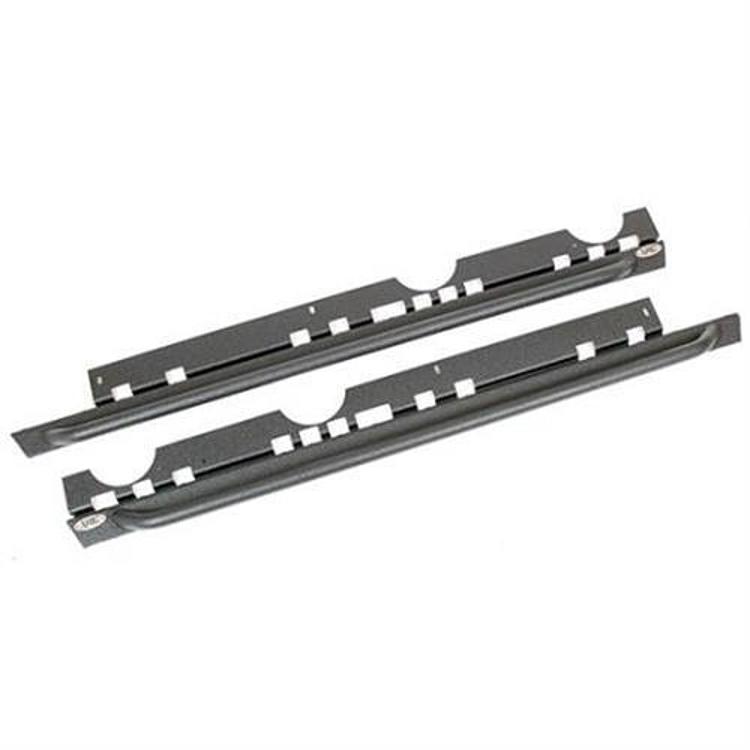

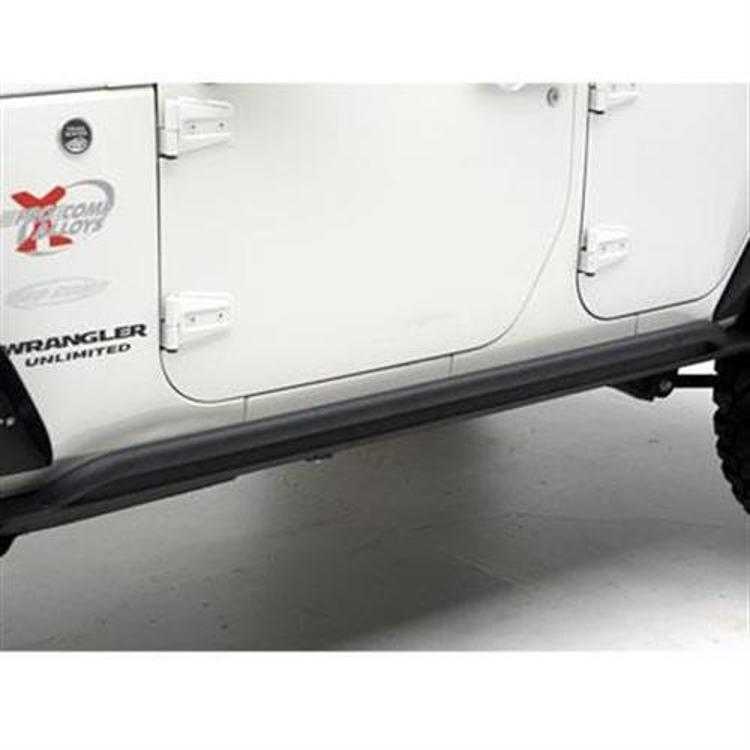

Rocker guards protect the lower body, but they add weight to the sides of the truck. Check that the guards, bumpers and tires clear the body and suspension through full travel. Recheck bolts after the first few trail runs and inspect corners after any hard impact.
- Plan light wiring before mounting
- Match shackles and fairlead to winch load
- Check clearance through full suspension travel
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | XRCJK4.1 |
| UPC | 631410131062 |
| Type | XRC Gen2 front and rear bumper and rocker guard package |
| Material | Cold rolled steel, 3/16″ solid plate |
| Finish | Two stage matte black powder coat |
| Maximum winch | 10,000 lb |
| Light tabs | Up to two 9″ lights (lights sold separately) |
| Body styles | 4-door |
| Warranty | 5-year limited |
Vehicle fitment
It is made for 4-door models. Confirm your vehicle’s year, model and trim before ordering.
Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The plate parts with the over rider tube bolt up to factory holes and need no drilling or modifications. The D-ring shackles and lights are not included with the front bumper.
What’s included
- XRC Gen2 front stubby bumper
- XRC Gen2 rear bumper
- Rocker guards
Not included: D-ring shackles, lights, a winch and a fairlead.
