Overview

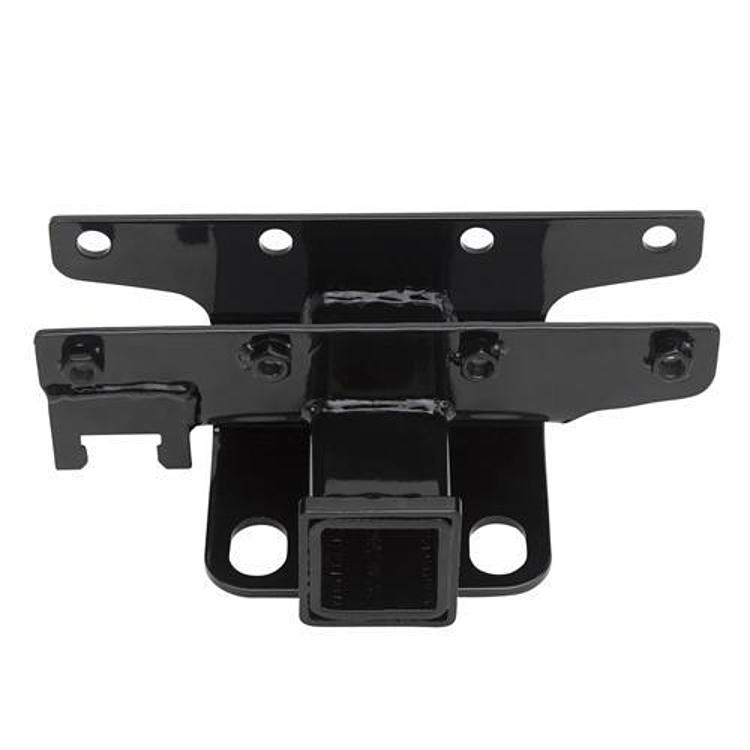

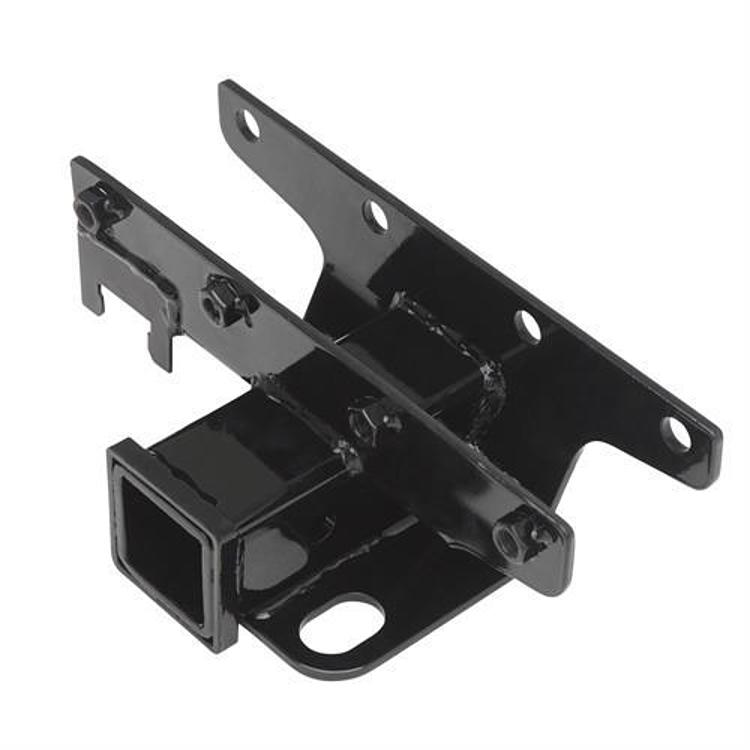

The Smittybilt Factory Style 2 inch receiver hitch, part number JH45, is a rear Class II receiver for the 2007–2018 Jeep Wrangler JK. It has a 2 inch by 2 inch receiver and a gloss black powder coat finish, and it is a factory style hitch for starting to tow with the JK.
Ratings depend on body style. The 2-door models are rated for a 2500 lb gross trailer weight and 250 lb tongue weight, and the 4-door models for a 3500 lb gross trailer weight and 350 lb tongue weight. The hitch does not fit with a roll pan.
Key features

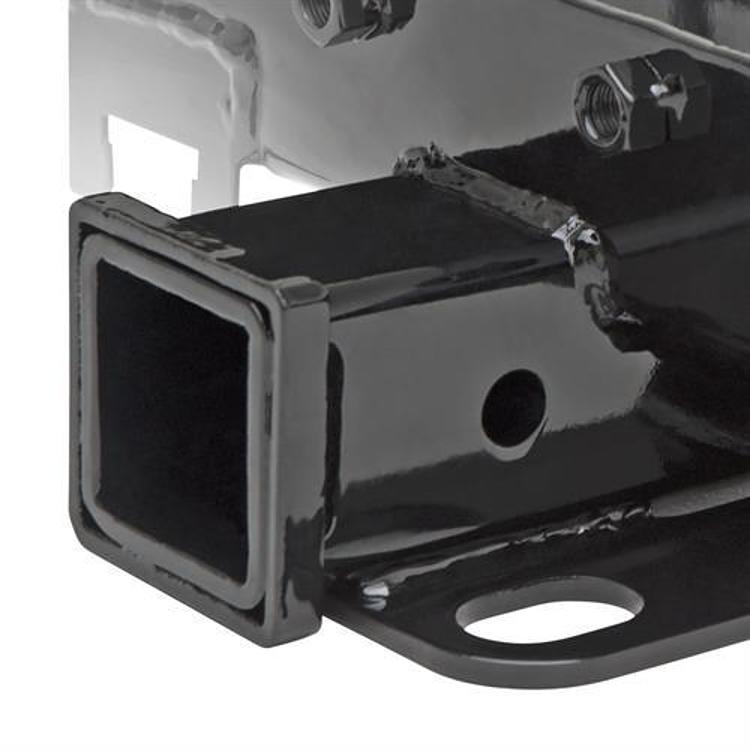

- 2 inch by 2 inch receiver
- Class II weight class
- Gloss black powder coat finish
- Rear position
- Direct fit for the JK
Towing setup and limits
A Class II receiver suits light trailers and cargo carriers, and the ratings on this hitch depend on body style, so confirm the trailer weight and tongue weight against your model before hooking up. Tongue weight should sit within the hitch rating, since too much load on the ball pulls the rear of the vehicle down and reduces steering control.
Choose a ball that matches the trailer coupler and keep the pin and clip in place. A wiring harness with the right connector is needed for trailer lights, and a brake controller is commonly needed for heavier trailers. Check tire pressure and load before towing, and allow more stopping distance than usual.
The hitch does not work with a roll pan, so owners with a roll pan will need to plan around that conflict before buying. Inspect the receiver welds and mounting bolts after the first few trips with a trailer, and recheck them periodically as the vehicle sees more use.
- Match the ball size to the coupler
- Keep tongue weight within the rating
- Inspect welds and bolts after early trips
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | JH45 |
| UPC | 631410086102 |
| Receiver size | 2 in x 2 in |
| Weight class | Class II |
| Position | Rear |
| Finish | Gloss black powder coat |
| Gross trailer weight | 2-door 2500 lb; 4-door 3500 lb |
| Tongue weight | 2-door 250 lb; 4-door 350 lb |
| Roll pan | Does not fit with a roll pan |
| Fitment | Direct fit |
Vehicle fitment
It is a direct fit for the 2007–2018 Jeep Wrangler JK, including 2-door and 4-door models.
Only JK models are covered. Wrangler JL and TJ models are not included, and the hitch is not compatible with a roll pan. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear receiver hitch.
