DrawTite Class III/IV Max-Frame Trailer Hitch – 75515

DrawTite

Shop Jeep Wrangler JK Receiver Hitches on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • DrawTite 75515 Class III/IV max-frame rear hitch for 2007–2012 Jeep Wrangler JK
  • Fits two-door and four-door 2007–2012 Jeep Wrangler JK models
  • Rated up to 3,500 lbs GTW weight carrying and 4,000 lbs GTW weight distributing
  • Black powder coat finish, all-welded, no drilling required

Description

Overview

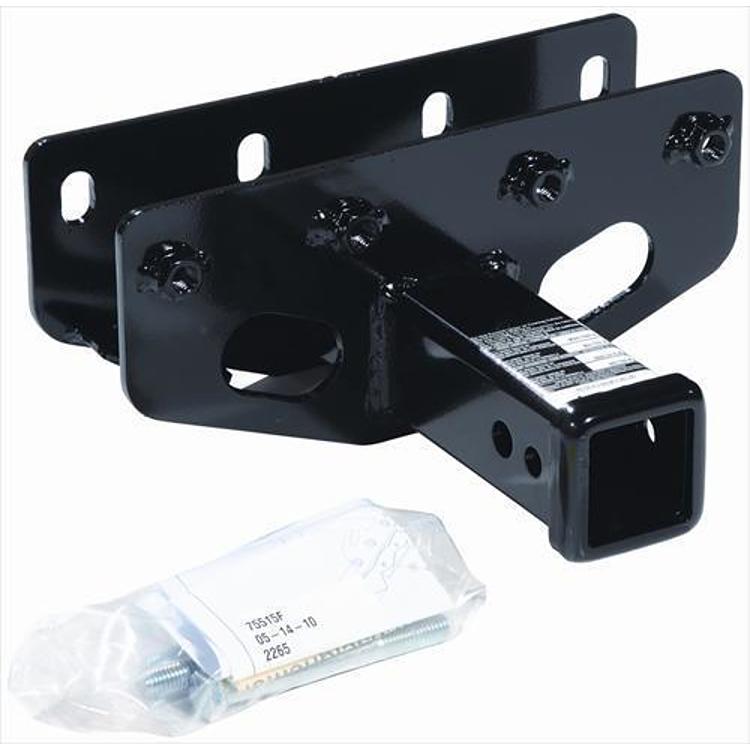

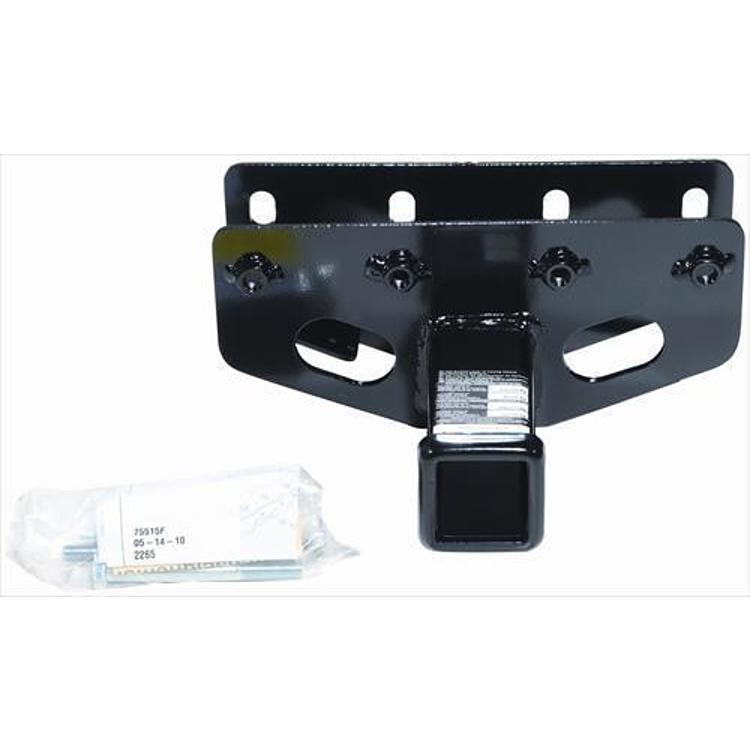

The DrawTite 75515 is a Class III/IV rear max-frame trailer hitch for the 2007–2012 Jeep Wrangler JK, in two-door and four-door bodies. It has a 2 inch square receiver and is custom built for each vehicle application.

The hitch is rated up to 3,500 lbs gross trailer weight for weight carrying and up to 4,000 lbs for weight distributing setups. DrawTite’s details say it attaches at all frame attachment points and needs no drilling.

Key features

  • Solid, all-welded construction
  • Black powder coat finish
  • Attaches at all frame attachment points
  • Custom built per vehicle application
  • No drilling required
  • 2 inch square receiver tube opening

Matching ratings to your tow

A receiver hitch carries trailer loads through the frame, so its rating is one part of a complete towing setup. Match the trailer’s gross weight and tongue weight to the lower of the hitch, ball mount and trailer limits. Weight distribution setups add their own ratings, so keep the hitch, spring bars and sway control within the same range, and never exceed the lowest figure in the setup.

Max-frame hitches sit behind the bumper and tie into the frame at the attachment points. After the first few tows, inspect the welds, hitch bolts and receiver for cracks, looseness or rust. Road salt and grit can work into the tube, so rinse the receiver after winter driving and keep it clean so pins and ball mounts seat fully.

  • Confirm ball mount shank size matches the 2 inch receiver
  • Re-check hardware after the first few trips
  • Touch up chips in the powder coat to slow corrosion
  • Remove the ball mount when not towing to limit rust

Specifications

Brand DrawTite
Part number 75515
UPC 742512755152
Hitch class Class III/IV
Receiver opening 2 inch square
Position Rear
Finish Black powder coat
Weight carrying rating Up to 3,500 lbs GTW
Weight distributing rating Up to 4,000 lbs GTW
Mounting All frame attachment points
Drilling No drilling required
Body styles Two-door and four-door models

Vehicle fitment

It fits the 2007–2012 Jeep Wrangler (JK) in 70th Anniversary, Rubicon, Sahara, Sport and X trims, plus the Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport and Unlimited X versions.

Wrangler model years after 2012 and earlier generations such as the TJ and LJ are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the hitch is custom built per vehicle application, confirm your Wrangler’s body style before ordering. Support the vehicle safely while it is installed.

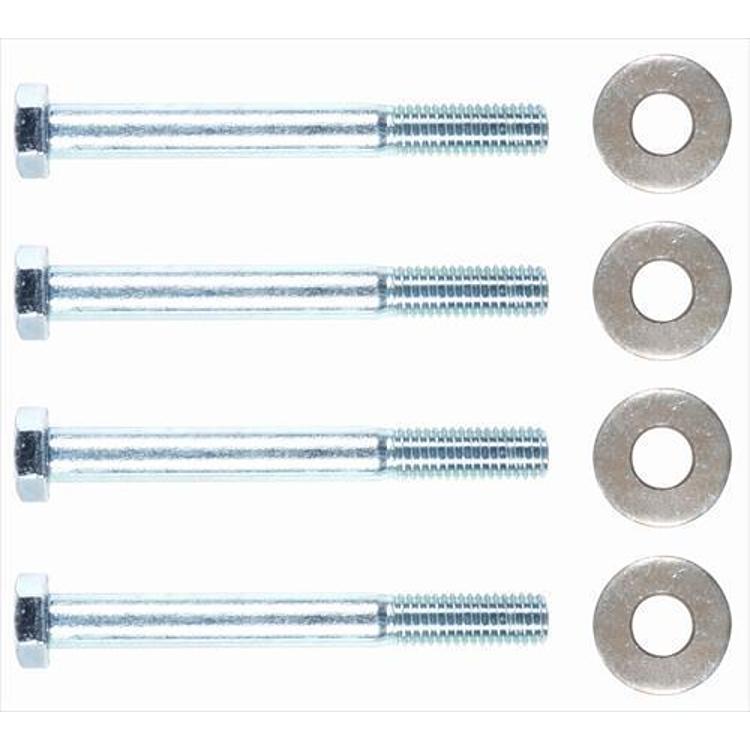

What’s included

Compare the package contents with your installation steps before starting.

SKU: DRA75515 Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 13.50 × 11.00 × 6.30 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201270th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the DrawTite 75515 fit a two-door Jeep Wrangler JK?

Yes. It fits two-door and four-door 2007–2012 Jeep Wrangler JK models in the 70th Anniversary, Rubicon, Sahara, Sport and X trims, and their Unlimited versions. Confirm your trim before ordering.

What is the weight rating of the 75515?

DrawTite rates the 75515 for up to 3,500 lbs gross trailer weight with weight carrying, and up to 4,000 lbs gross trailer weight with weight distributing. The receiver is a 2 inch square opening.

Does the 75515 need drilling?

No. The 75515 requires no drilling and attaches at all frame attachment points. Compare the package contents with your installation steps before starting.

How often should a receiver hitch be inspected?

Inspect it before each trip that involves towing and after any heavy load or rough off-road run. Look for cracked welds, loose bolts and corrosion around the receiver and mounting points. Replace a hitch with visible cracks rather than welding it.
