Skyjacker New Generation Rebuildable Rod End Kit – NG34R-563

Skyjacker

Shop Skyjacker Heim Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • New Generation rebuildable rod end kit with 0.75 in. rod ends
  • Upper rear position, right-hand thread
  • Includes rebuildable rod end, pivot plus inserts and jam nut
  • Part number NG34R-563, UPC 803696217819

Description

Overview

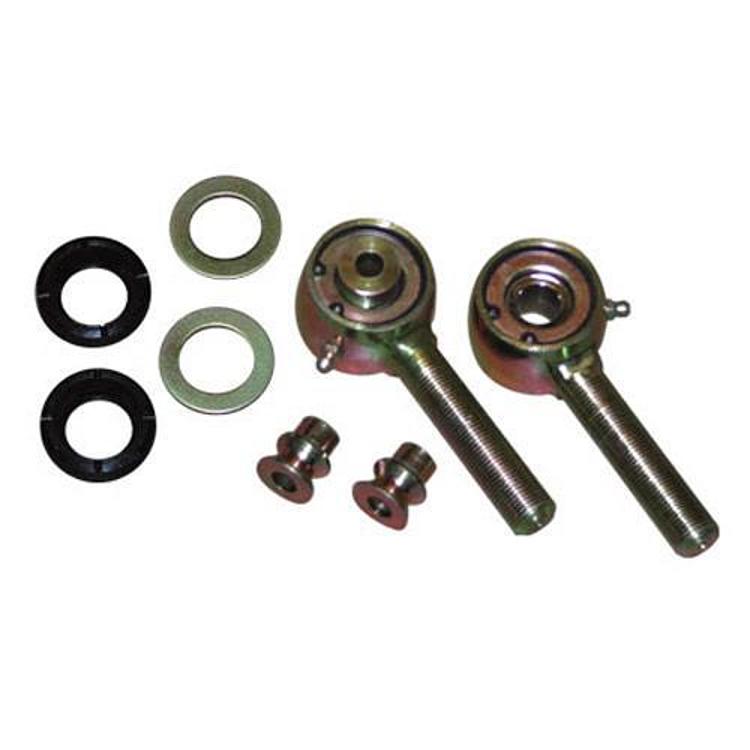

The Skyjacker NG34R-563 is a New Generation rebuildable rod end kit with 0.75 in. rod ends for the upper rear position, with right-hand thread. The kit includes a rebuildable rod end, pivot plus inserts and a jam nut, and it is designed for 12 mm bolts.

The kit is universal fit, with no specific vehicle years, makes or models identified.

Key features

  • 0.75 in. rod ends
  • Upper rear position
  • Right-hand thread
  • Rebuildable rod end with pivot plus inserts
  • Jam nut included
  • Designed for 12 mm bolts

Upper rear joint basics

Upper rear joints work under load in a different way than front joints, and they often carry the bulk of the force that keeps an axle located. Wear usually appears as slop at the pivot, a tick over bumps, or a change in how the axle tracks under braking. Rebuilding a joint with new inserts can restore the original feel when the housing is still in good condition.

Thread hand is the detail that catches many installers. A right-hand thread must be matched to the existing link so the joint can be adjusted without twisting the bar. Measure the length before disassembly, tighten the jam nuts only after the length is set, and recheck the pivot after the first few drives.

  • Confirm thread hand before cutting the old joint free
  • Mark the original length for reference
  • Recheck jam nut tightness after the first drive

Specifications

Brand Skyjacker
Part number NG34R-563
UPC 803696217819
Rod end size 0.75 in.
Position Upper rear
Thread Right hand
Included Rebuildable rod end, pivot plus inserts, jam nut
Bolt size 12 mm bolts

Vehicle fitment

Universal fit is the only fitment given. No vehicle years, makes or models are named for this kit.

Confirm fit for your vehicle’s year, model and trim before ordering. Check the upper rear mounting against your existing setup before installing.

Installation notes

Before installing, confirm the existing joint is right-hand thread to match this kit.

What’s included

Rebuildable rod end, pivot plus inserts, and jam nut.

Not included: Check your existing hardware for 12 mm bolts and mounting parts before starting.

SKU: SKYNG34R-563 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 6.50 × 6.00 × 3.50 in
brands

Questions & Answers

What rod end size is the NG34R-563?

The rod ends are 0.75 in. The kit is designed for 12 mm bolts and the upper rear position with right-hand thread.

Does the NG34R-563 include a jam nut and pivot?

Yes. The kit includes a rebuildable rod end, pivot plus inserts, and a jam nut. Check your existing hardware for bolts and mounting parts before starting the install.

Which vehicles does the NG34R-563 fit?

The kit is universal fit, with upper rear position and right-hand thread. Confirm your vehicle's year, model and trim before ordering to make sure the application matches.

Why does thread hand matter on a rod end?

Thread hand decides which way the joint turns when you adjust link length. If the new joint does not match the existing link, the adjustment can go the wrong way and leave the link unable to hold its setting. Check it before installing.
