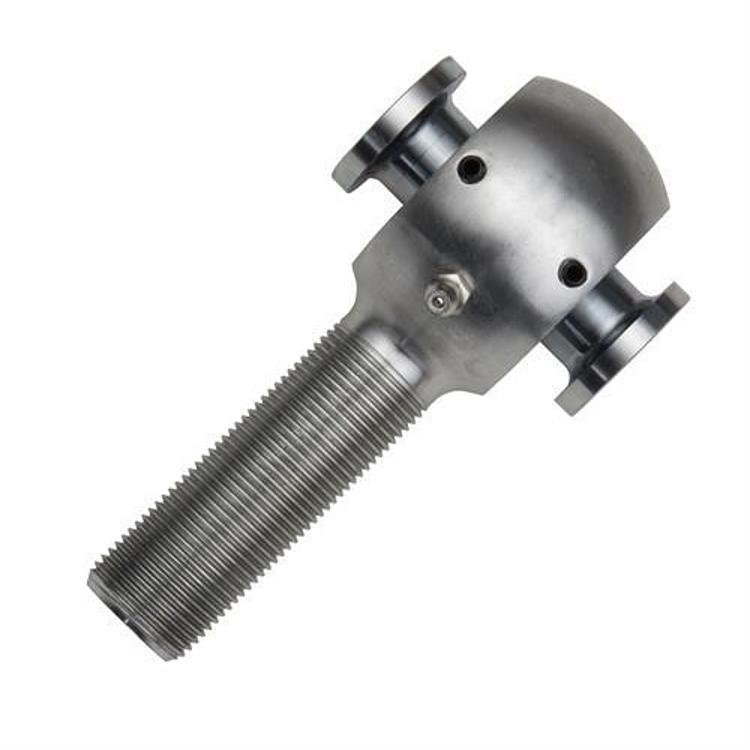

Rock Krawler Krawler Joint

Rock Krawler

Shop Rock Krawler Heim Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Krawler RK02219L, left hand thread Pro Krawler Joint
  • 1 inch shank and 0.5625 bore
  • Chromoly housing with hard chrome plated billet 52100 steel ball
  • Universal fit; no vehicle named.

Description

Overview

The Rock Krawler RK02219L is the left hand thread version of the Pro Krawler Joint, with a 1 inch shank and 0.5625 bore for builds needing up to +/-30 degrees of misalignment. It is a universal fit joint, so it is not matched to any single vehicle.

Each housing is chromoly that has been heat treated and zinc plated. A billet 52100 steel ball carries a hard chrome finish, and the raceway inside is designed to resist wear and isolate high frequency vibration. The ratio of body to clevis mounting width sets the misalignment range.

Key features

  • Left hand thread
  • Chromoly housing, heat treated and zinc plated
  • Hard chrome plated billet 52100 steel ball
  • Raceway for wear resistance and vibration isolation
  • Misalignment up to +/-30 degrees, totaling 60 degrees per side

Keeping a joint working well

A joint like this works through a wide arc, so its ball and raceway need to stay clean and protected. Check the dust boot or seal area after each trip and wipe away mud, sand and grit before it can work into the ball. Look at the ball surface for pitting, scratches or flat spots, since a damaged ball will wear the raceway faster. Keep the threads clean and check that the jam nut still locks the setting.

Joints often fail at the threaded end first, so inspect the shank where it meets the housing and the link where it threads in. Replace a joint that shows play, rust bloom around the housing or a ball that feels rough when turned. Replacing it before it fails keeps the rest of the link from taking the load.

Specifications

Brand Rock Krawler
Part number RK02219L
UPC 700007719261
Shank 1 Inch
Bore 0.5625
Thread direction Left Hand
Housing Chromoly, heat treated, zinc plated
Ball Hard chrome plated billet 52100 steel
Misalignment Up to +/-30 degrees (60 degrees total per side)
Fitment Universal Fit

Vehicle fitment

It is a universal fit joint, so no single make or model is matched. Confirm fit for your vehicle’s year, model and trim before ordering.

Check the left hand thread against the other end of your assembly. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One Pro Krawler Joint, left hand thread. No hardware or accessories are listed.

SKU: RKSRK02219L Category:

Specification

Shipping weight 2.45 lbs
Package dimensions 6.00 × 3.80 × 3.80 in
brands

Questions & Answers

Is the RK02219L the left hand thread version?

Yes. The RK02219L has a left hand thread, while the RK02219 is right hand. Both share a 1 inch shank and 0.5625 bore, so thread direction is the main difference to check before fitting.

Does this joint fit a specific vehicle?

No vehicle years or chassis codes apply, so it is a universal fit joint. Match the 1 inch shank and 0.5625 bore to your link or arm before installing it.

How far can the joint pivot?

It is rated for up to +/-30 degrees of misalignment, which is 60 degrees total per side. Use that figure as the reference when planning your articulation angle, and leave room for the joint to pivot without binding.

How can you tell a rod end joint is worn?

Look for play when you move the link by hand, clicking or grinding through the arc, dirt or water in the seal area, and cracked or rusted housing near the threads. Replace a joint with any of these signs before it fails on the trail.
