Skid Row Off Road Engine Skid Plate (Black) – JP-4001

Skid Row Off Road

Shop Jeep Liberty KJ Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Engine and transmission skid for Jeep Liberty KJ, including CRD diesel models
  • 3/16-inch plate steel, black powder coat, made in the USA
  • Protects the transmission and oil pan, and smooths the underside for obstacles
  • Oil filter changes can be done with the skid installed
  • Fits 2002-2007 Jeep Liberty KJ

Description

Overview

The Skid Row Off Road Engine Skid Plate, part number JP-4001, protects the transmission and the engine oil pan on the 2002 to 2007 Jeep Liberty KJ. It is designed to work with Liberty CRD models.

The skid is made from 3/16-inch thick steel with a black powder coat finish, and it is made in the USA. It mounts in several locations. It protects without reducing ground clearance or adding excessive weight, and its smooth underside slides over obstacles more easily.

Key features

  • Protects the transmission and the engine oil pan
  • 3/16-inch thick steel
  • Smooth underside for sliding over obstacles
  • Attaches in several locations
  • Works with CRD models
  • Oil filter changes can be done with the skid installed
  • Black powder coat finish

Before you install an engine skid

Engine and transmission skids sit under the oil pan and transmission case, where rock strikes and stumps are most likely to make contact. Their main job is to absorb a hit that would otherwise bend the pan or crack the transmission housing. Because the plate sits low, its underside shape matters on rocky trails. A smooth face lets the vehicle slide over ledges instead of catching on them.

Check the skid and its mounting hardware after rough trail days. Look for cracked welds on the mounting tabs, bent edges, and chipped powder coat that exposes bare metal to moisture. Touch-up paint on bare spots slows rust. When planning service, keep the drain plug and oil filter in mind so the skid does not make routine maintenance harder.

Specifications

Brand Skid Row Off Road
Part number JP-4001
UPC 609224070123
Position Engine oil pan and transmission
Material 3/16-inch plate steel
Finish Black powder coat
Origin Made in the USA
Installation No drilling if the factory transfer case skid is present

Vehicle fitment

It fits the 2002-2007 Jeep Liberty (KJ), including the 65th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition and Sport versions. Confirm your vehicle’s year, model and trim before ordering.

It is designed around CRD models, which are not separated from the other KJ versions. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check whether your Jeep has the factory transfer case skid before choosing the install method. With the factory plate, no drilling is needed. Without it, drill two holes through the transmission cross member for two carriage bolts.

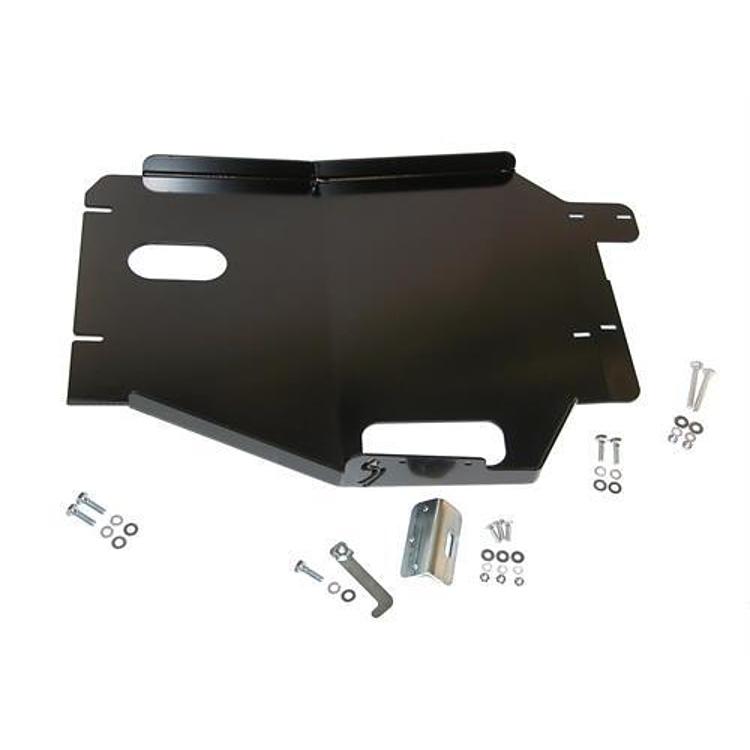

What’s included

The engine and transmission skid plate with its mounting parts, as the short notes describe.

SKU: SFKJP-4001 Category:

Specification

Shipping weight 48.00 lbs
Package dimensions 36.00 × 25.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Liberty (KJ)2002–200765th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JP-4001 fit a Liberty CRD?

Yes. The skid works with Liberty CRD models, and it is designed around CRD owners. It fits the 2002 to 2007 Liberty KJ, so confirm your model and trim before ordering.

Does the JP-4001 need drilling?

It depends on the transfer case skid. If the Jeep has a factory transfer case skid, no drilling is needed. Otherwise, two holes must be drilled through the transmission cross member.

Can I change the oil with the JP-4001 installed?

Yes. Oil filter changes can be done with the skid plate installed. This is useful for CRD owners, the model the skid is designed around.

How thick is the JP-4001 steel?

The skid is made from 3/16-inch thick steel with a black powder coat finish. It is made in the USA and includes its mounting parts.

How often should an engine skid be inspected?

Inspect it after each trip on rocky or uneven terrain and at every oil change. Look for bent edges, loose fasteners, and chipped coating. Tighten hardware as needed and touch up bare metal promptly to limit rust.
