Overview

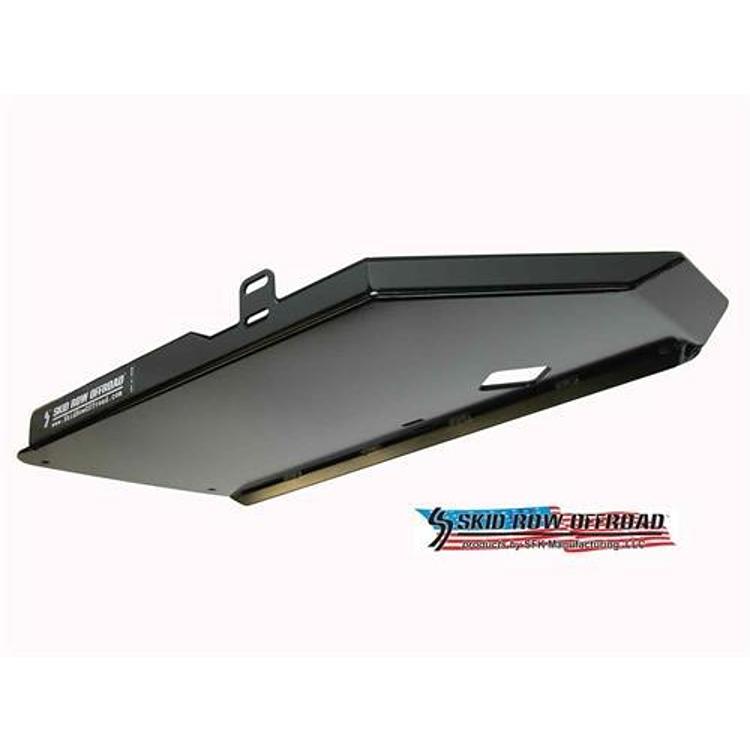

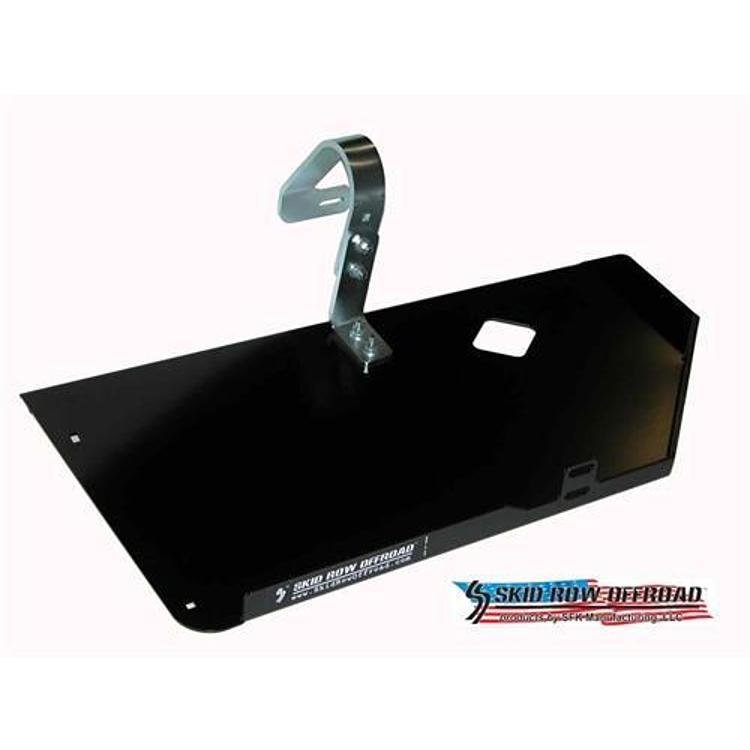

The Skid Row Off Road Engine Skid Plate, part number JP-2001, protects the oil pan, exhaust and transmission on the Jeep Cherokee XJ and the 1986 to 1992 Comanche. It fits the 4.0L engine with an automatic or manual transmission, and it fits the XJ from 1984 to 2001.

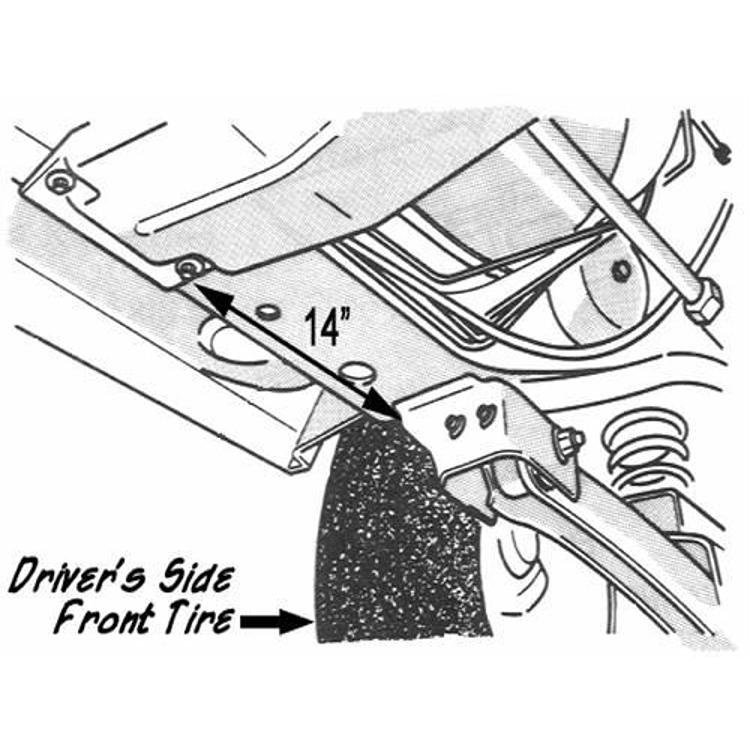

Other V6 and four-cylinder engines may fit, but the oil drain hole is designed for the 4.0L and will not line up with them. The skid needs 14 inches of measurement to fit correctly and does not work with long arm suspensions. Check the additional fitment images before installation.
Key features
- Protects the oil pan, exhaust and transmission
- 3/16-inch steel, laser cut and CNC folded
- 1/4-inch steel angle along the driver’s side
- Mounts in three locations
- Mounting height is adjustable for exhaust changes
- Smooth surface to slide over obstacles without catching on the transmission cross-member
- Semi-gloss black powder coat over sand-blasted steel
Exhaust and header clearance
An engine skid under a Cherokee XJ shares space with the exhaust system, and the two often compete for clearance. Exhaust hangers, the catalytic converter and any header changes all affect where the plate can sit. Adjustable mounting height can help, but the exhaust should be checked after the plate is set so nothing rubs at speed.
Transmission cross-members and the lower control arm mounts are common points where skids are tied in. Check the cross-member for cracks before drilling, and confirm that bolts reach solid metal rather than thin sheet. After any hard hit, look at the exhaust hangers and the plate for shifting or new contact marks.
- Check exhaust hangers after changing the plate height
- Confirm bolts reach solid metal
- Look for contact marks on exhaust pipes
- Inspect the cross-member before drilling
Specifications
| Brand | Skid Row Off Road |
|---|---|
| Part number | JP-2001 |
| UPC | 609224070068 |
| Position | Engine oil pan, exhaust and transmission |
| Material | 3/16-inch steel, laser cut and CNC folded |
| Reinforcement | 1/4-inch steel angle, driver’s side |
| Finish | Semi-gloss black powder coat |
| Engine | 4.0L (other engines may fit with a mismatched drain hole) |
| Measurement | 14 inches required |
| Installation | One or two holes drilled |
Vehicle fitment
It fits the 1984-2001 Jeep Cherokee (XJ) and the 1986-1992 Jeep Comanche.
It is for the 4.0L engine and does not work with long arm suspensions. Confirm the engine and suspension before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

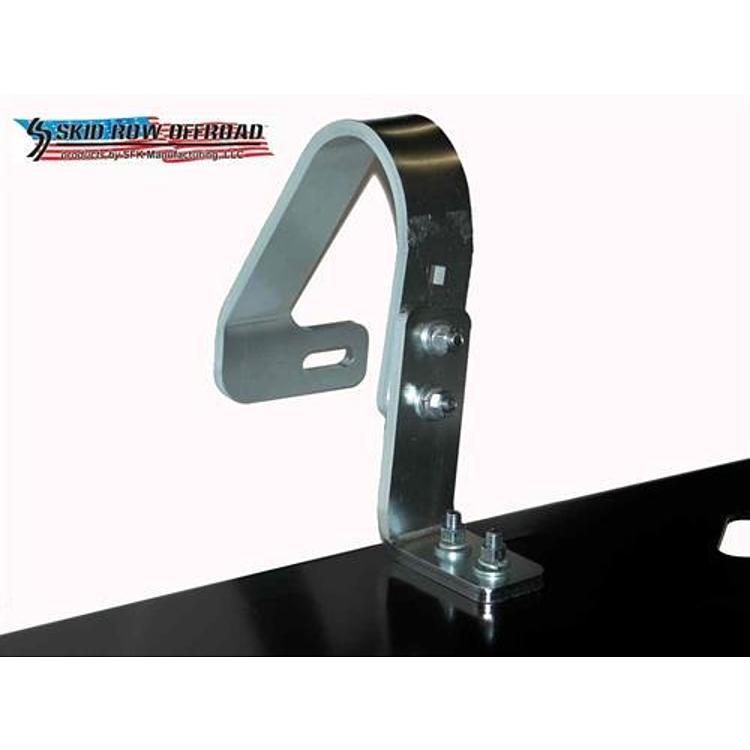

Installation involves drilling one or two holes. The rear mounts to the transmission cross-member, the passenger side uses the lower control arm bolt, and the driver side uses a two-piece hoop around the drive shaft.
What’s included
The engine skid plate with its mounting parts. Check the package contents against your installation before starting.
