Skid Row Off Road Evap Canister Guard (Black) – JP-5007

Skid Row Off Road

Shop Skid Row Off Road Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Skid Row Off Road JP-5007 evaporative canister guard, black powder coat
  • Fits 2- and 4-door Jeep Wrangler models, excluding 2012–2016 JK
  • 3/16-inch steel plate with a 1/4-inch thick mounting bracket
  • No drilling required, with all hardware included

Description

Overview

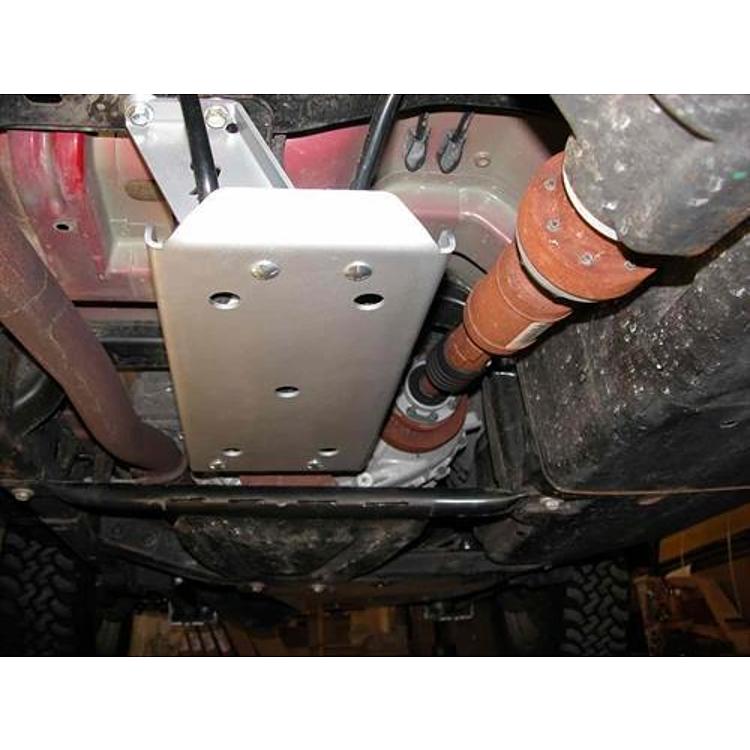

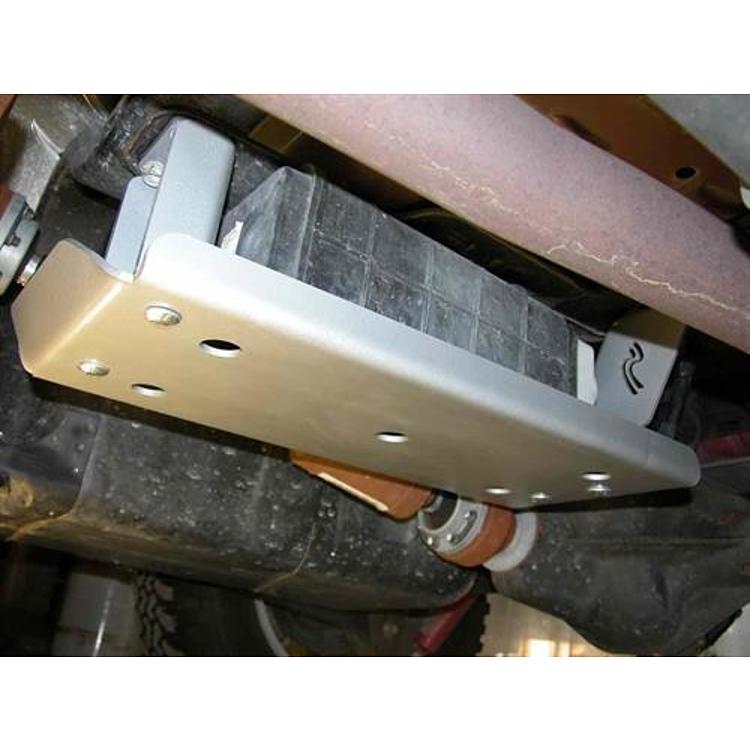

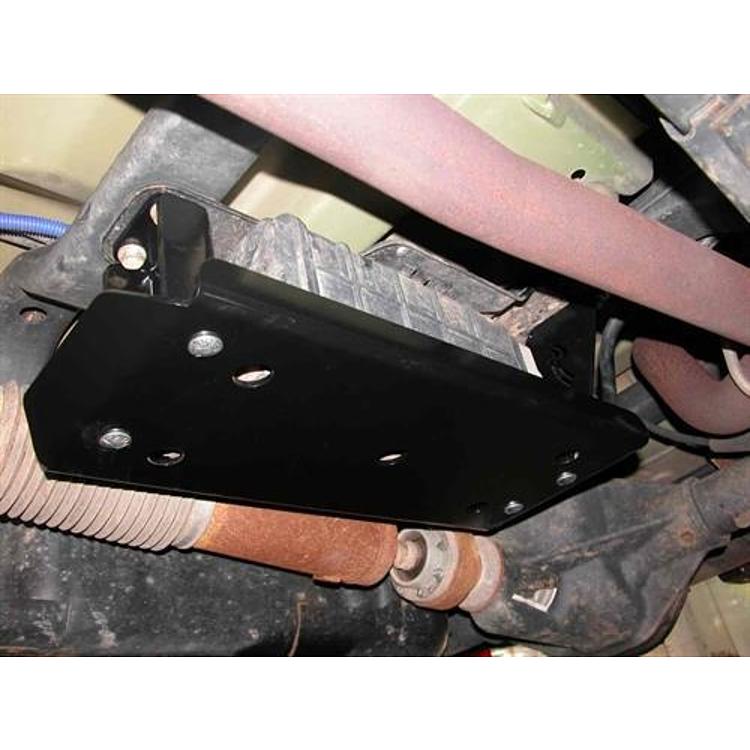

The Skid Row Off Road JP-5007 is an evaporative canister guard in black powder coat that protects the canister, which sits in a vulnerable spot under Jeep Wranglers. It is made of 3/16-inch steel for 2- and 4-door models.

The front and rear edges are folded at 45 degrees so the guard slides over obstacles rather than catching on them, and the sides are folded up 1 inch for added strength. The front mounting bracket is 1/4-inch thick steel, which Skid Row Off Road says resists rock strikes better than the lighter brackets of competing guards.

The front and rear edges are folded at 45 degrees so the guard slides over obstacles, and the folded edges help against rock strikes. The guard can be installed in less than an hour with simple hand tools. The 1/4-inch front bracket adds strength.

Key features

  • 3/16-inch steel plate
  • 1/4-inch thick front mounting bracket
  • Front and rear edges folded at 45 degrees
  • Sides folded up 1 inch
  • Black powder coat finish
  • No drilling required
  • All hardware included
  • Made in the USA

Canister guard basics

The evaporative canister is part of the emissions system and is usually mounted low and near the frame rail, which makes it exposed to rocks and stumps on the trail. A guard keeps that exposure off the canister, but it does not change how the system works. Keep the canister hoses and clamps in good shape, since cracked lines are a common cause of emissions warnings that have nothing to do with the guard.

When fitting a canister guard, check the clearance to the fuel lines and wiring nearby, and make sure nothing rubs once the vehicle is at full ride height. Inspect the guard after rough trips for bent folds, loose fasteners and paint scrapes that can start corrosion. Replace bent brackets rather than forcing them back into shape, because a misaligned mount can put strain on the canister lines.

Specifications

Brand Skid Row Off Road
Part number JP-5007
UPC 609224070181
Type Evap canister guard
Plate material 3/16-inch steel
Bracket material 1/4-inch thick steel
Finish Black powder coat
Installation No cutting or drilling required
Side folds Sides folded up 1 inch
Hardware All included
Fitment type Direct fit

Vehicle fitment

It fits 2- and 4-door Jeep Wrangler models, but not 2012–2016 JK models.

Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The guard installs in less than an hour with simple hand tools, without drilling or changes to the emissions system. Confirm fit for your model year before starting, and check that the guard clears the canister once it is in place.

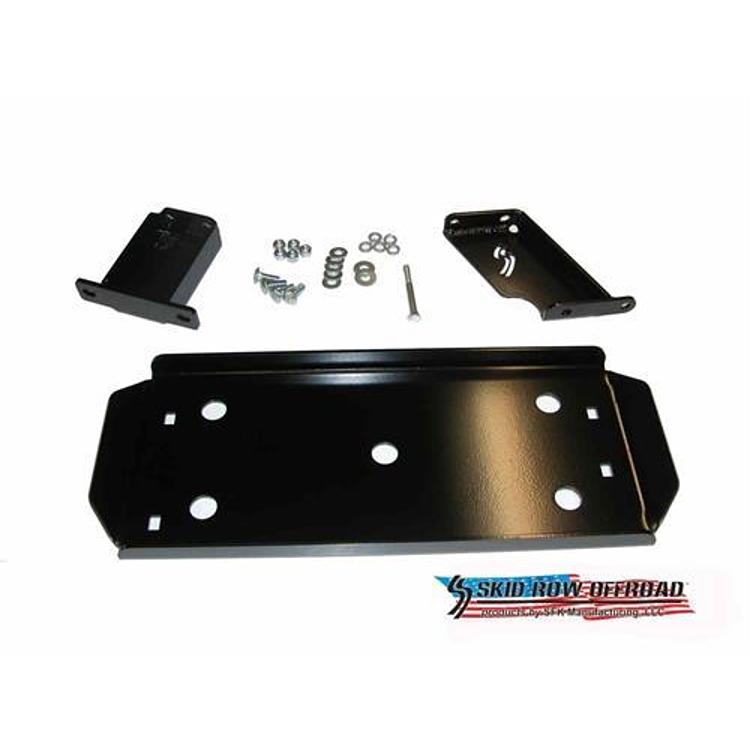

What’s included

The hardware comes in the box, so lay everything out before starting.

SKU: SFKJP-5007 Category:

Specification

Shipping weight 18.00 lbs
Package dimensions 25.00 × 11.00 × 5.00 in
brands

Questions & Answers

Does the JP-5007 fit a 2014 Jeep Wrangler JK?

No. The guard does not fit 2012–2016 JK models. Confirm fit for your vehicle's year, model and trim before ordering.

Does the JP-5007 fit a 2010 Jeep Wrangler JK?

Confirm fit for a 2010 Jeep Wrangler JK before ordering. The guard fits 2- and 4-door models, and the 2012–2016 JK range is excluded.

Does the JP-5007 need drilling or changes to the emissions system?

No drilling is required, and the guard needs no changes to the emissions system. All hardware is included, and installation takes less than an hour with simple hand tools.

Will a canister guard affect the check engine light?

A correctly fitted guard does not touch the emissions system, so it should not cause a warning on its own. If a light appears after installation, inspect the canister hoses and clamps for rubbing or pinching, since those are the usual causes.
