ARB Engine and Gearbox Skid Plate (Gray Powdercoat) – 5450110

ARB 4x4 Accessories

Shop Jeep Wrangler JK Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Protects the engine oil pan and transmission on the Jeep Wrangler JK
  • Cradles the full oil pan while keeping the drain plug accessible
  • Front axle and suspension can travel fully through the panel
  • Narrow rear section clears aftermarket long arm kits
  • Fits 2012-2016 Jeep Wrangler JK models

Description

Overview

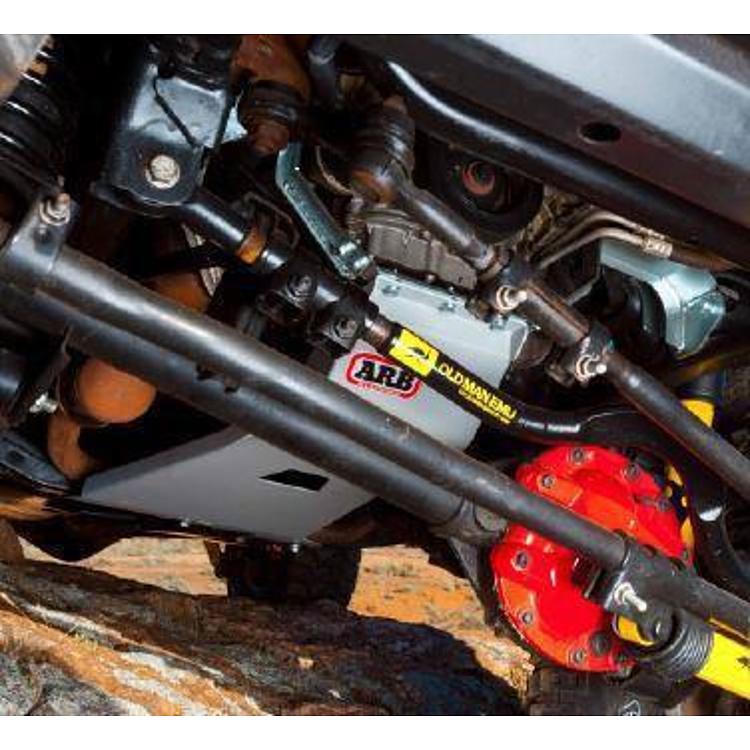

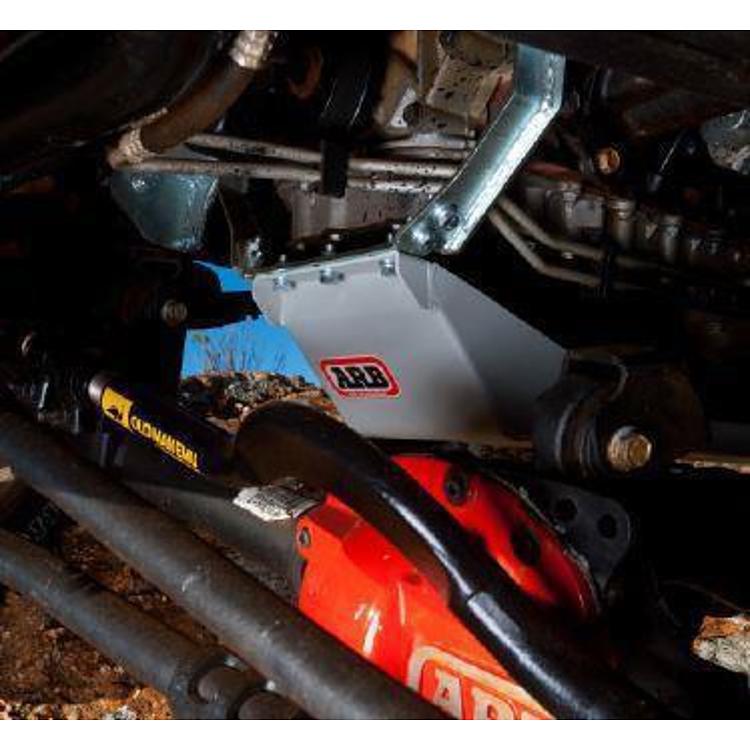

The ARB Engine and Gearbox Skid Plate, part number 5450110, protects the engine oil pan and transmission on the Jeep Wrangler JK. It fits 2012 to 2016 Wrangler JK models and was the first skid plate ARB developed for a solid-axle vehicle.

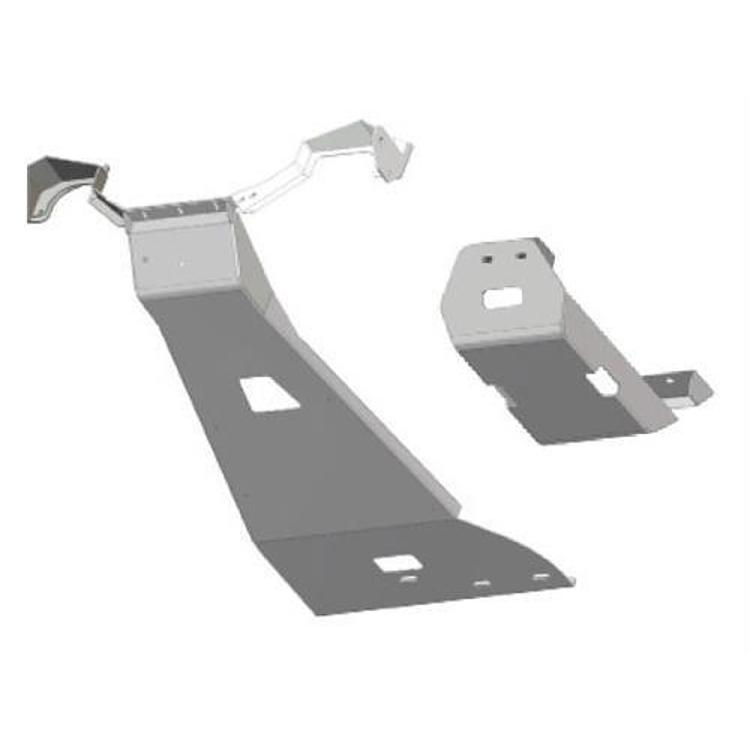

The panel is the longest skid plate ARB had made to that point and wraps the oil pan on all sides while keeping the drain plug reachable. It leaves room for the front suspension control arms to travel fully under compression, bolts to a new cross-member spanning the two engine mounts, and lets the front axle and locating parts move through full suspension travel. The rear section is narrow so aftermarket long arm kits still fit.

Key features

  • Cradles the engine oil pan on all sides
  • Protects the transmission as well as the oil pan
  • Allows full travel of the front axle and control arms
  • Narrow rear section for aftermarket long arm kits
  • Cross-member bolts between the two engine mounts
  • Gray powder coat over zinc plated 3mm steel

Cross-member and mount checks

A skid that bolts to a cross-member puts the cross-member itself under load, so that part deserves attention during both installation and routine checks. Engine mounts carry the weight of the engine and transmission, and a skid bolted between them adds a link in the load path. Look over the cross-member’s welds and the mount bolts after rough terrain, since a loose cross-member can allow the panel to shift.

The oil pan and transmission sit close to the ground on this vehicle, so they benefit from a panel that covers their lowest points. Access to the drain plug and the transmission fill and drain points should still be checked before each oil service, because a panel that sits too close to these fittings can make the job harder.

Wheel travel is the other consideration. A solid axle moves through its range with the control arms, and any skid in that zone needs room to move. Keep the area around the front axle clear of debris and sticks, which can lodge against the panel and restrict movement.

  • Check cross-member welds and mount bolts after rough trails
  • Keep room for the front axle to move freely
  • Clear mud and sticks from around the panel edges
  • Confirm drain plug access before each oil change

Specifications

Brand ARB 4×4 Accessories
Part number 5450110
UPC 9332018026835
Material 3mm laser-cut folded steel, zinc plated
Finish Gray powder coat
Type Undercarriage skid
Protects Engine oil pan and transmission
Mounting Bolts to a cross-member between the two engine mounts
Installation Direct fit, no cutting or drilling required

Vehicle fitment

It fits the 2012-2016 Jeep Wrangler (JK).

The list does not cover 2007 to 2011 or 2017 to 2018 Wrangler JK models, and it does not include the JL generation. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The panel mounts to a cross-member that bolts between the two engine mounts, so that cross-member is part of the installation. Installation requires no cutting or drilling.

What’s included

The engine and gearbox skid plate. Check the package contents against your installation before starting.

Not included: Not included: the separate charcoal canister skid panel, which is made for the same vehicle.

SKU: ARB5450110 Category:

Specification

Shipping weight 52.00 lbs
Package dimensions 45.00 × 21.00 × 10.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2012–201675th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the ARB 5450110 fit a 2017 Jeep Wrangler JK?

It fits 2012 to 2016 Wrangler JK models, so 2017 and 2018 models are not confirmed. Confirm fit for your vehicle's year, model and trim before ordering.

Does this panel allow the front suspension to move?

Yes. ARB designed the panel so the front axle and its locating components can move through full suspension cycling. The rear section is kept narrow so that aftermarket long arm kits still fit.

Can I still reach the oil drain plug with this skid?

Yes. The panel cradles the engine oil pan while keeping the oil drain plug accessible, so the plug stays reachable for oil changes and the pan remains fully covered.

Does this panel protect the charcoal canister?

No. The Wrangler's charcoal canister hangs low at the rear and has its own separate skid panel. This engine and gearbox panel covers the oil pan and transmission only.

Does a skid plate affect how the transmission is serviced?

It can, depending on how the panel is shaped around the transmission. Check fill and drain access before fitting the panel, and plan to remove it for any work that needs the transmission area. Keeping the fasteners in good order makes reinstalling the panel straightforward.
