Rugged Ridge Boulder Aluminum Dana 35 Differential Cover – 16595.14

Rugged Ridge

Shop Rugged Ridge Differential Covers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear Dana 35 axle cover
  • Matte black A356-T6 cast aluminum
  • Extra oil capacity
  • Magnetic drain plug and dipstick bolt

Description

Overview

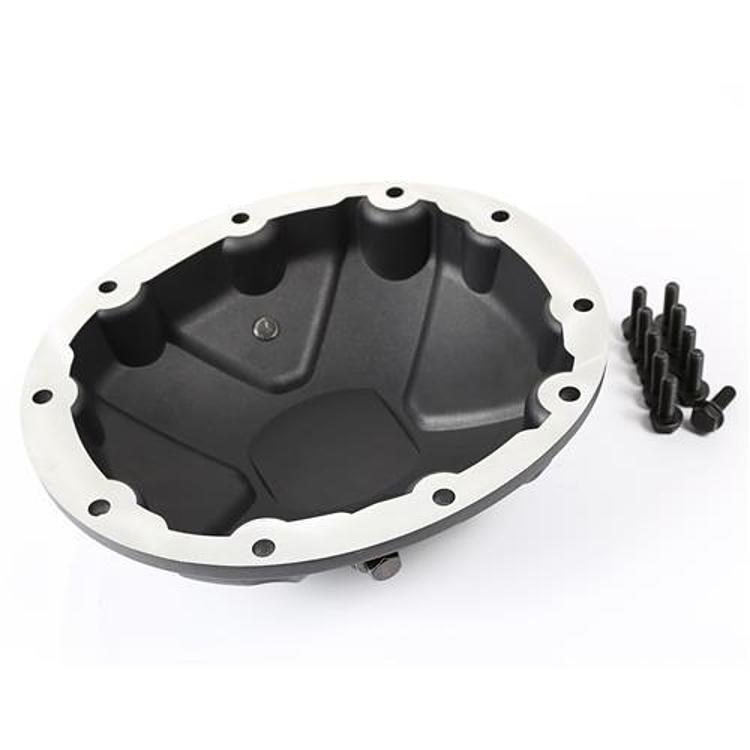

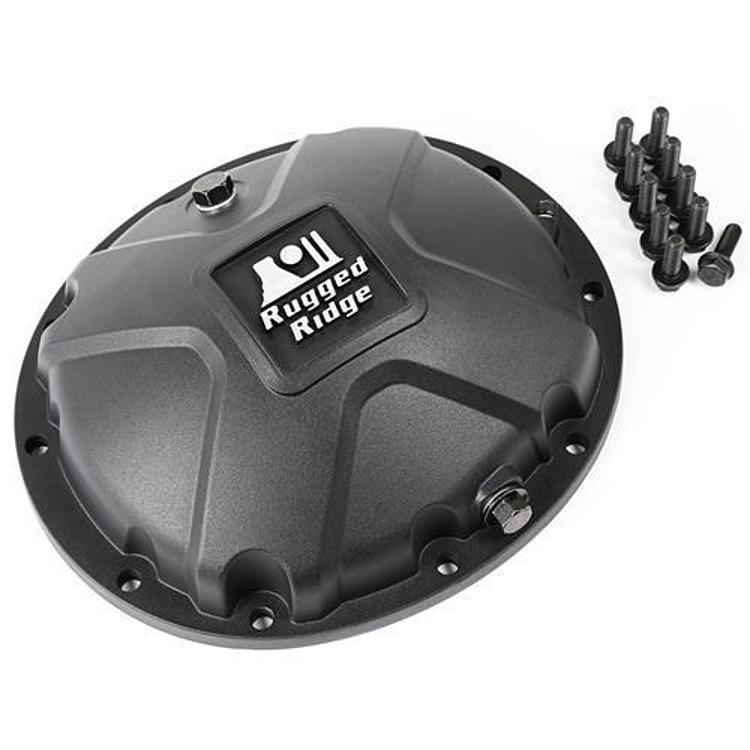

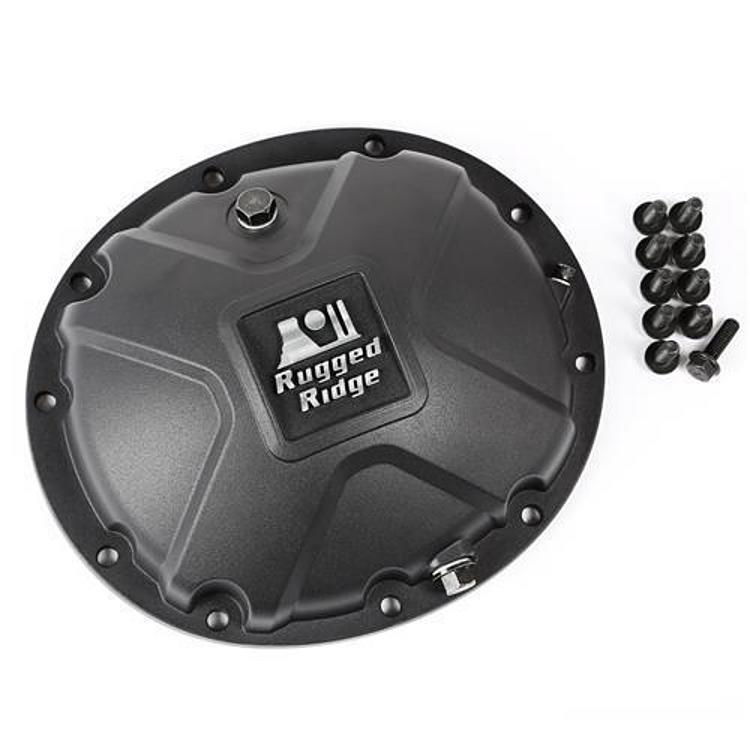

The Rugged Ridge Boulder Aluminum Dana 35 Differential Cover (part 16595.14) is a matte black cast aluminum rear differential cover for Dana 35 axles, with extra oil capacity.

The body helps protect internal parts from rock contact on the trail and helps move heat away from the differential. The design is patent pending.

Dana 35 rear covers are often the first cover to meet trail hazards on this axle position, so the cast aluminum body and the sealing face matter as much as the finish. The machined surface suits a gasket or RTV sealant, and the magnetic drain plug and dipstick bolt give you a clear way to check and service the gear oil. The cover is listed at extra oil capacity, which adds volume without changing how you service the axle.

Key features

  • A356-T6 cast aluminum for impact resistance
  • Precision machined sealing surface

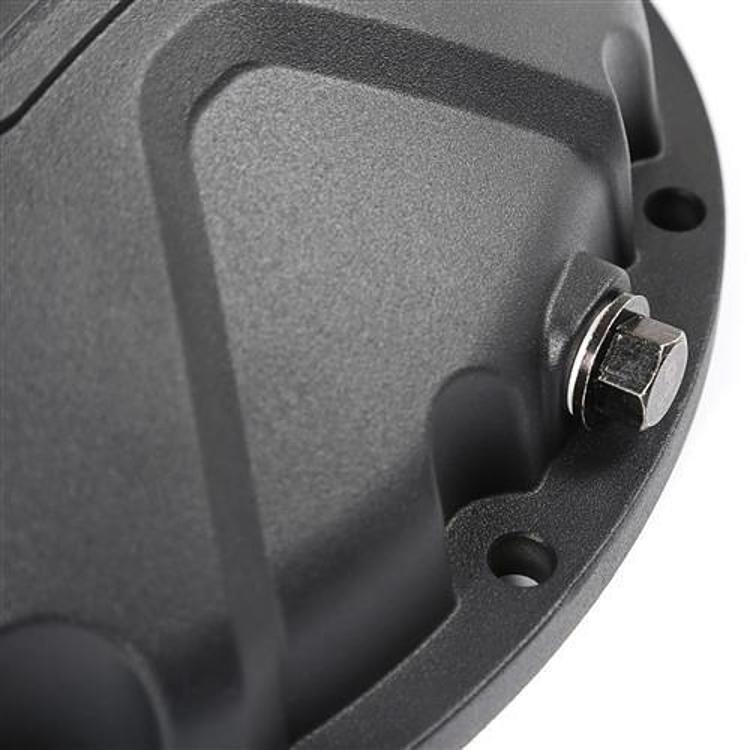

  • Magnetic drain plug
  • Dipstick bolt for correct fill levels
  • Patent pending design
  • Extra oil capacity

Gear oil and service

A rear cover is often the first part to meet trail hazards, so the sealing face and mounting bolts deserve attention. Clean both surfaces thoroughly before fitting, and remove any old gasket material. A sealant suited to cast aluminum or a fresh gasket helps prevent leaks at the cover edge.

The magnetic drain plug collects fine metal from the gears, so check it at each service and wipe it clean. Use the dipstick bolt to confirm the fill level after the oil settles. Extra oil capacity means the fill quantity differs from a standard cover, so check the level carefully rather than relying on a set amount.

  • Clean the sealing surface before fitting
  • Check the magnetic drain plug for metal debris
  • Fill to the dipstick mark with the correct gear oil

Specifications

Brand Rugged Ridge
Part number 16595.14
UPC 804314283391
Material A356-T6 cast aluminum
Finish Matte black powder coat
Axle location Rear
Axle type Dana 35
Oil capacity Extra
Drain plug Magnetic
Patent status Pending

Vehicle fitment

It is made for the Dana 35 rear axle, so axle type is the main fit check. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A matte black aluminum cover with a magnetic drain plug and dipstick bolt.

Not included: Gear oil.

SKU: RUG16595.14 Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 12.00 × 6.00 × 6.00 in
brands

Questions & Answers

Is 16595.14 a rear cover?

Yes. It is made for the Dana 35 rear axle, so confirm your axle type before you order. Check the axle type against your vehicle's year, model and trim before installation.

Is the design patented?

The design is patent pending, meaning protection has been applied for but not yet granted. It is a design status only, so it does not change how you fit or service the cover.

Does the cover hold extra oil?

Yes. It is listed at extra oil capacity, and the cast aluminum body helps the differential shed heat during hard use.

What is the body made from?

A356-T6 cast aluminum, finished in matte black powder coat. The cast body is intended to resist impact from rock contact on the trail.

Do I need a new gasket with this cover?

Usually yes, or a sealant suited to cast aluminum. Clean the old gasket material off both surfaces so the new seal sits flat. Tighten the bolts evenly to avoid leaks.

How often should I check the gear oil in a Dana 35?

Check the level at routine service intervals and after trail use that involves water or heavy impact. Use the dipstick bolt for the fill check and inspect the magnetic plug for metal particles.
