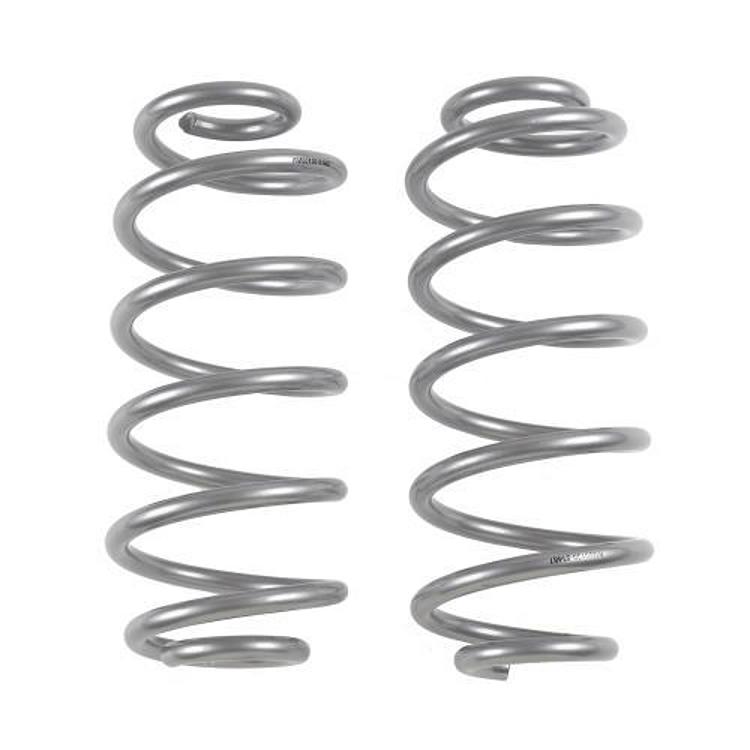

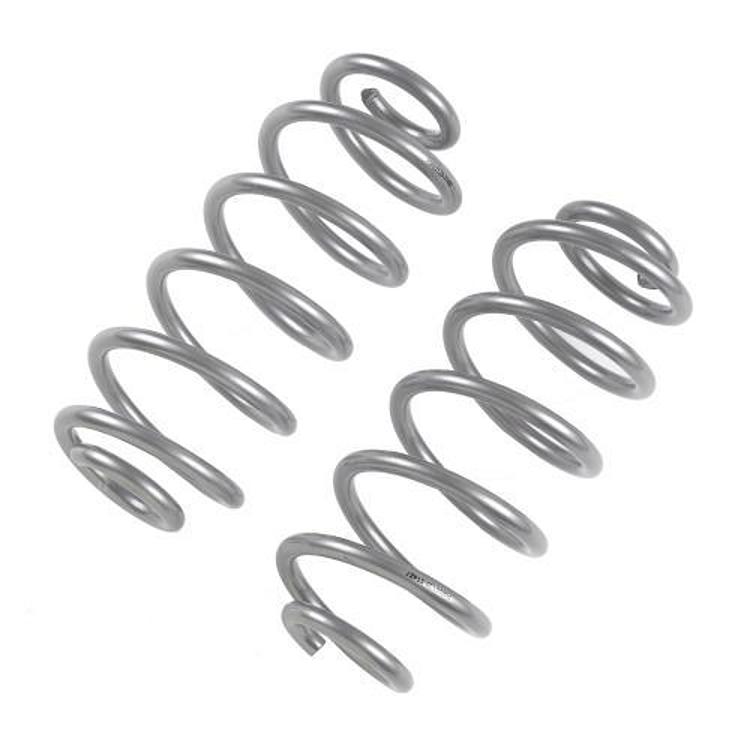

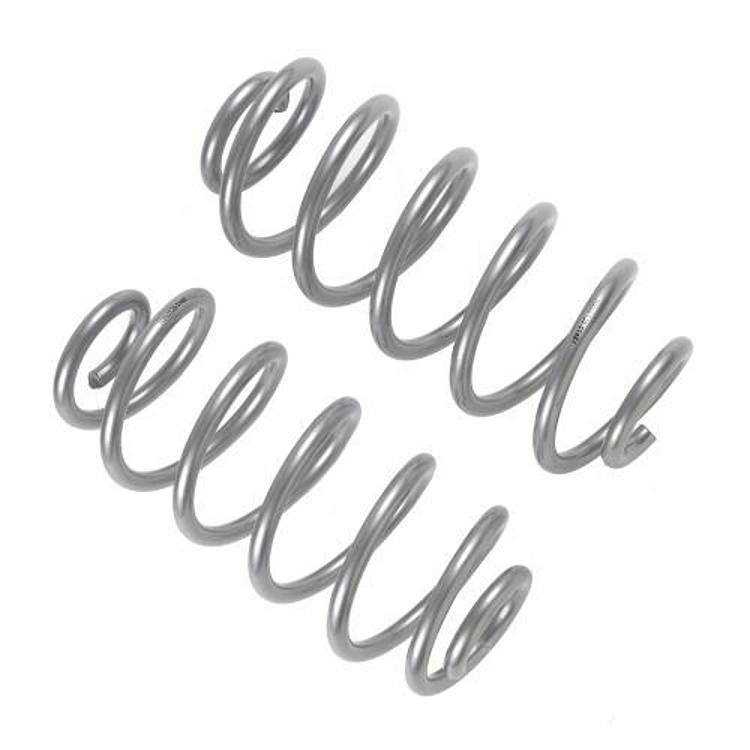

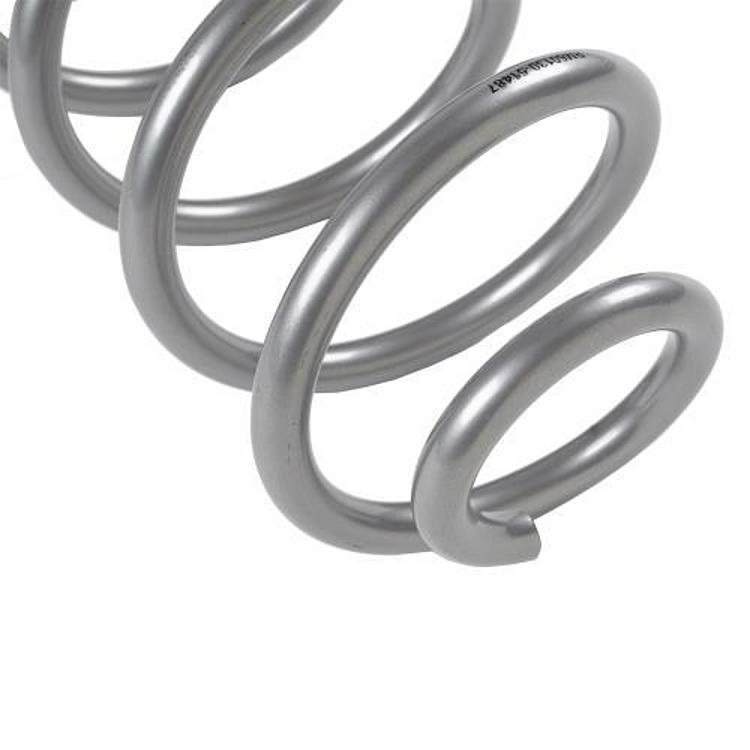

Rubicon Express 7.5 Inch lift Coil Springs

Rubicon Express

Shop Rubicon Express Coil Springs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear coil springs with a 7.5 inch lift, sold as a pair
  • Silver powder-coated finish
  • Rubicon Express part, UPC 614901437904
  • Vehicle application not named

Description

Overview

The 7.5 inch lift coil springs are rear coils sold as a pair, with a silver powder-coated finish. They are made for the rear position only.

The coils are built for ride quality, durability and load capacity, and each is checked against Rubicon Express specifications. Confirm your vehicle before choosing a 7.5 inch rear coil.

Key features

  • 7.5 inch rear lift
  • Sold as a pair
  • Silver powder-coated finish
  • Rear mounting only

Rear lift and axle geometry

A rear coil at this height changes the angle of the axle relative to the driveshaft, which can add vibration if the driveline is not checked. The rear axle also moves through a larger range when the suspension articulates, so brake lines and the parking brake cable should be checked for slack and stretch.

Rear coils are often replaced alongside shocks, because the ride height and damping need to match. Load capacity matters more at the rear, so check whether the vehicle carries tools, fuel or cargo that could change how the coils perform. Recheck the fasteners and the bump stops after the first drives.

  • Check driveline angles after a rear lift
  • Inspect brake lines and parking brake cable for stretch
  • Match rear shocks to the new ride height

Specifications

Brand Rubicon Express
UPC 614901437904
Lift height 7.5 inch
Position Rear
Finish Silver powder coat
Sold as Pair

Vehicle fitment

Confirm fit for your vehicle’s year, model and rear suspension before ordering.

A 7.5 inch rear lift is a large change in ride height. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A pair of 7.5 inch rear coil springs.

SKU: R/ERE1359 Category:

Specification

Shipping weight 31.00 lbs
Package dimensions 20.30 × 15.00 × 7.50 in
brands

Questions & Answers

Is this coil a 7.5 inch rear lift?

Yes. The coils give a 7.5 inch lift at the rear and are sold as a pair with a silver powder-coated finish.

Which vehicles fit the 17239 rear coils?

No vehicle is named here, so confirm fit for your year, model and trim before ordering. Check that the rear suspension can take a 7.5 inch lift before installing.

Are the rear coils sold individually?

No. They are sold as a pair, so both rear sides are covered by one set at the 7.5 inch lift height.

Should the rear shocks change when coils are installed?

Often they should. Shocks are tuned to a ride height and load, so a rear coil at a different height may need matching shocks. Inspect the existing shocks for leaks and worn mounts, and replace them if they show wear.

How can I tell the rear coils need inspection?

Look for sagging at one rear corner, uneven ride height, or a change in rear handling over bumps. Cracks or breaks in the coil and rust on the spring seats are also signs that the coils should be checked.
