Rubicon Express 4.5 Inch Super-Flex Short Arm Lift Kit with Mono Tube Shocks – RE7124M

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7124M 4.5 inch Super-Flex short arm lift kit with mono tube shocks
  • New PT-Meg Super-Ride bushings and adjustable upper control arms
  • Fixed lower control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs; lift range 3 to 4.99 inches

Description

Overview

The Rubicon Express RE7124M is a 4.5 inch Super-Flex short arm lift kit with mono tube shocks. It is designed for enthusiasts who want a short arm suspension that keeps the factory mounting locations. The listed lift height range is 3 to 4.99 inches.

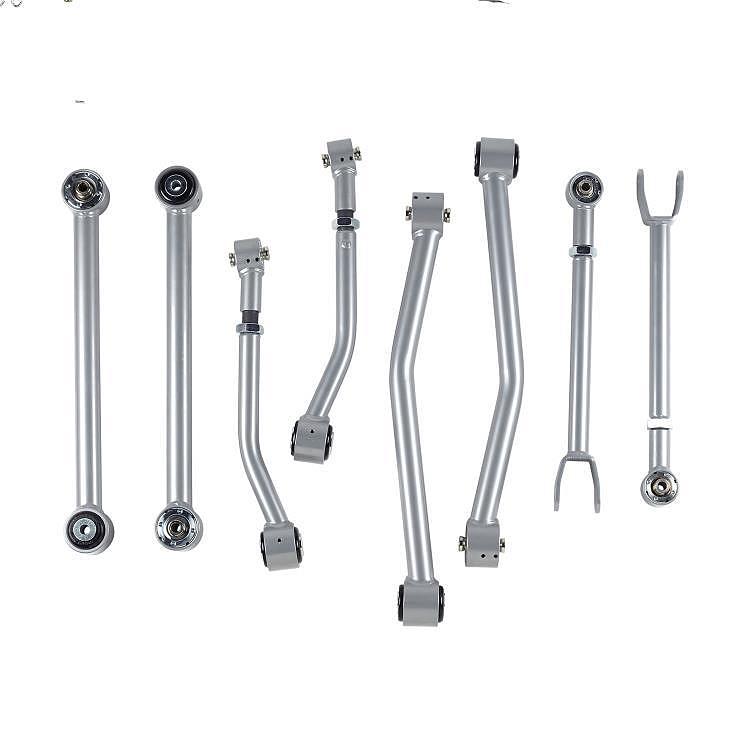

The Super-Flex system uses new adjustable upper control arms and fixed lower control arms, each with a serviceable Super-Flex spherical ball joint. It includes replacement lift springs and extended bump stops.

Longer front and rear stainless steel brake lines are included to match the new geometry. Mono tube shocks are part of the kit.

Key features

  • Short arm design that retains the factory mounting locations
  • Adjustable upper control arms
  • Fixed lower control arms
  • Serviceable Super-Flex spherical ball joints
  • New PT-Meg Super-Ride bushings
  • Replacement lift springs and extended bump stops
  • Longer front and rear stainless steel brake lines

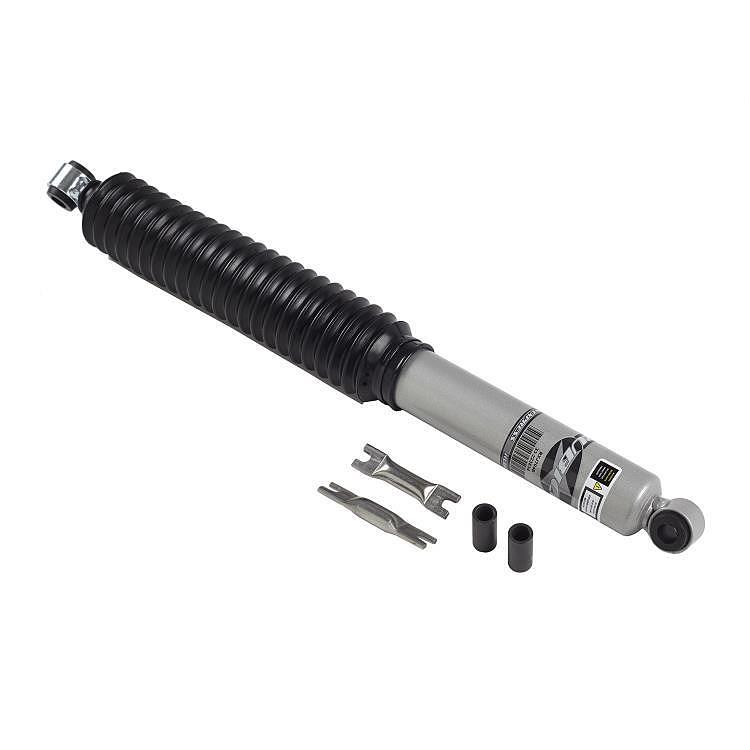

  • Mono tube shocks included

Before you buy

A short arm kit replaces the upper and lower control arms while keeping the factory mounting locations. That approach lets the suspension gain height without moving the arm pivots far from their original points, which is why alignment and joint condition matter so much. The arms carry the wheel travel, so their joints and bushings see the most load.

Ball joints are the parts most often checked after a control arm change. A serviceable joint can be inspected and replaced without swapping the whole arm, but it should be tested for play when the wheel is lifted. Lift springs and bump stops are installed as a set with the arms, so keep them together when servicing the suspension.

Brake lines are often replaced when the suspension changes height, since stock lines may be too short for the new geometry. Check routing for rub points and make sure the lines have slack through full compression and droop. Steering stabilizers and drag links are commonly inspected at the same time.

  • Inspect ball joint boots for tears and grease loss
  • Check bushings in the new arms for play
  • Recheck all fasteners after the first trail runs
  • Verify brake line clearance at full droop

Specifications

Brand Rubicon Express
Part number RE7124M
UPC 614901452761
Lift height range 3 to 4.99 inches
Suspension type Short arm
Kit type Super-Flex short arm
Rear lift method Coil springs
Shocks included Yes, mono tube
Fitment Direct fit

Vehicle fitment

Confirm fit for your vehicle before ordering.

Match the year, model and trim of your vehicle to the kit before placing an order.

Installation notes

The control arms change the suspension geometry, so a full alignment is needed after installation. The stainless steel brake lines are longer than stock, so check the routing when the kit is installed.

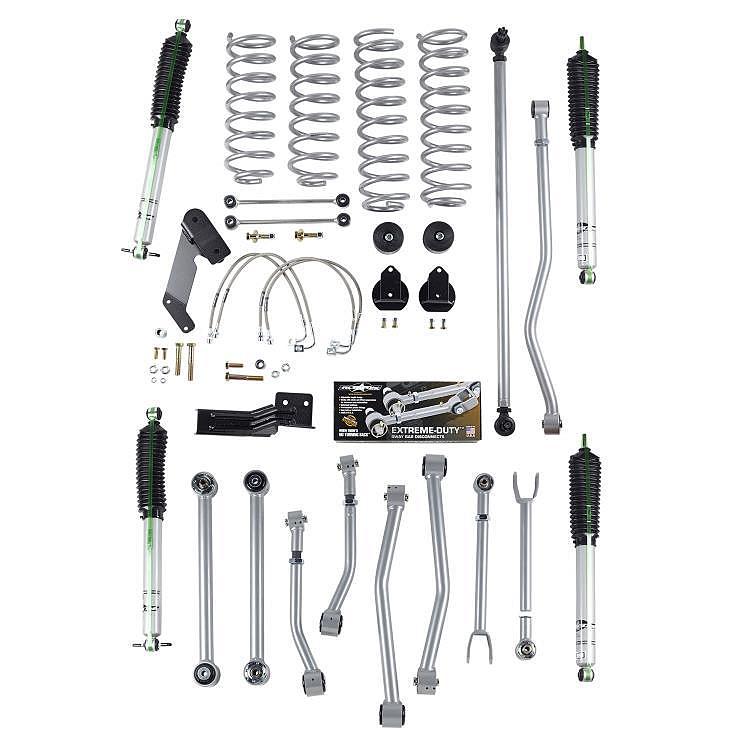

What’s included

The kit includes adjustable upper control arms, fixed lower control arms with Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, replacement lift springs, extended bump stops, longer front and rear stainless steel brake lines and mono tube shocks.

SKU: R/ERE7124M Category:

Specification

Shipping weight 175.65 lbs
Package dimensions 48.00 × 13.00 × 13.00 in
brands

Questions & Answers

Does the RE7124M fit my Jeep?

Confirm fit for your vehicle's year, model and trim before ordering. The short arm design keeps the factory mounting locations, so the install uses stock mounting points on a matched vehicle.

Does the RE7124M include shocks?

Yes. Mono tube shocks are included with the kit, so the shock replacement is part of the same package as the control arms and lift springs.

Is the RE7124M a short arm or a long arm kit?

It is a short arm system. It keeps the factory mounting locations while replacing the upper and lower control arms with adjustable upper arms and fixed lower arms. The arms use Super-Flex spherical ball joints that can be serviced.

How often should ball joints be checked on a short arm kit?

Check serviceable ball joints at regular service intervals and whenever the steering feels loose or the tires show uneven wear. Look for torn boots, grease leakage and play when the wheel is lifted and moved. Replace joints as a unit if play is found, following the procedure in the installation instructions.

Should lift springs and control arms be replaced together?

Usually they are installed as one system, since the arms set the geometry and the springs set the ride height. Mixing parts from different systems can change the angles and load the joints unevenly, so keep the whole set together when servicing.
