Overview

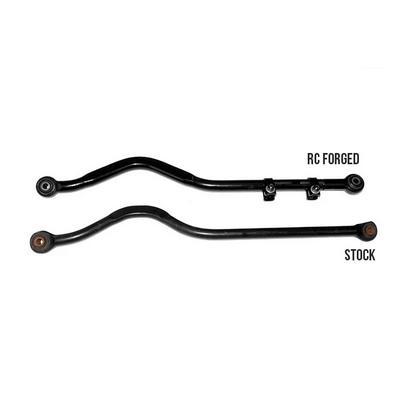

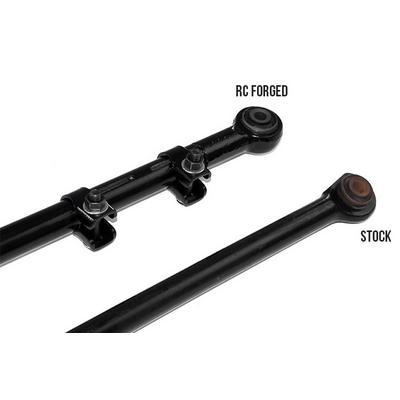

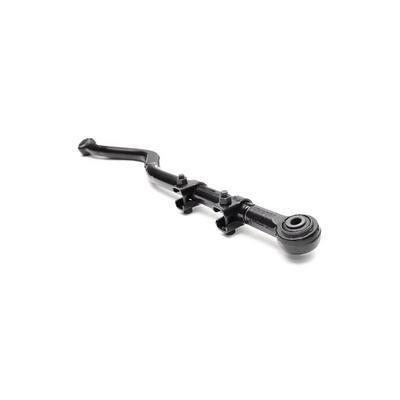

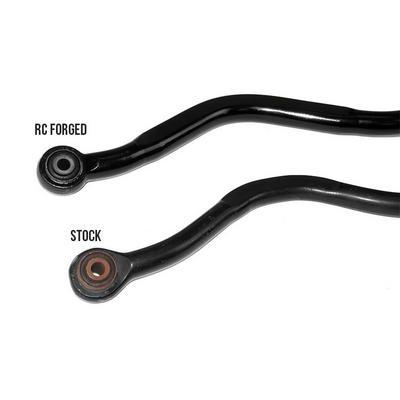

The Rough Country Forged Adjustable Track Bar, part number R/C1179, is a front track bar for the Jeep Wrangler JK. It is forged solid steel with a 1.25 in. outside diameter and weighs 16 lb, nearly double the weight of the factory track bar. It is built for lifted JKs used on demanding off-road routes.
Each bar comes with Clevite rubber bushings in an OEM style. The forged construction and bushings are designed to handle heavy off-road loads. The bar replaces the factory track bar in function.
When a lift changes the geometry, the front axle moves off center. This bar is fully adjustable while it is mounted on the Jeep, so the length can be set on the vehicle to re-center the axle without removing it. The adjustment uses a clamp and sleeve system.
The bar is a bolt-on part for models with 2.5 to 6 inch suspension lift kits. Models with a drop pitman arm need a track bar drop bracket, part number 1118, which is sold separately.
Key features
- Forged solid steel construction
- 1.25 in. outside diameter
- Clevite OEM style rubber bushings
- Adjustable on the vehicle with a clamp and sleeve system
- Fits 2.5 to 6 in. suspension lift kits
- Track bar drop bracket 1118 needed with a drop pitman arm
Drop pitman arms and bar geometry
Front track bars control side-to-side movement of the axle, and a lift changes the angle at which the bar sits. A bar with adjustable length lets that angle be corrected on the vehicle. Pitman arm style matters: a drop pitman arm changes where the bar attaches, which is why a drop bracket is needed in that case.
Before installation, check the bar ends, bushings and mounting points for wear. Replace worn bushings at the same time as the bar, since a worn bushing shifts the angle after adjustment. After the length is set, have the front alignment checked and look at steering components for contact at full lock.
- Check pitman arm style before ordering
- Inspect bushings and bar ends for play
- Confirm clearance at full steering lock
- Recheck alignment after the first few drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C1179 |
| Position | Front |
| Material | Forged solid steel |
| Outside diameter | 1.25 in. |
| Weight | 16 lb |
| Bushings | Clevite rubber, OEM style |
| Lift range | 2.5 to 6 in. |
| Adjustment | On the vehicle |
| Fit | Direct fit |
Vehicle fitment
It is a direct fit for 2007 to 2018 Jeep Wrangler (JK) models, including two-door and four-door bodies. The trims include 70th and 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited and X.
Wrangler TJ, JL and LJ models are not in this list. Models with a drop pitman arm also need the track bar drop bracket. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bar is bolt-on and is adjusted while it is on the vehicle. If your Jeep has a drop pitman arm, the track bar drop bracket 1118 is needed. Have the front alignment checked after the length is set.
What’s included
The forged adjustable track bar with its Clevite bushings and clamp and sleeve adjustment. Not included: track bar drop bracket 1118, which is required on drop pitman arm models.
