Overview

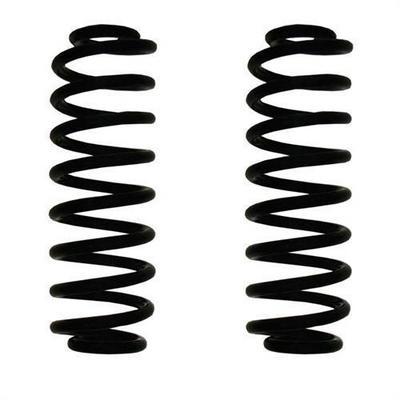

The Rock Krawler 5.5-inch Lift Rear Coil Springs (part number RK00025) are black rear coil springs with a 5.5-inch lift. They fit the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon and the 1997–2006 Jeep Wrangler TJ.
The springs use three spring rates to combine effective travel and ride quality, and Rock Krawler says they are designed to resist settling and stay seated at full droop.
Key features
- 5.5-inch rear lift
- Triple rate design
- Resists settling
- Keeps the spring seated at full droop
- Black finish
Driveline and shock fit
A 5.5-inch rear lift raises the axle well away from the frame, which changes the angle of the driveline. A steeper angle can cause vibration at speed and wear on the U-joints, so the driveline should be inspected once the new height is set. The brake lines are also stretched by the added height and may need to be replaced with longer lines in some setups.
Shock length and mounting positions must suit the new rear height. If the shocks are too short, they can bottom out or fail early, while overly long shocks can limit travel and strain the mounts. Triple rate springs help balance ride and travel, but they work best with a complete rear setup. Recheck the fasteners and the spring seats after the first trail runs.
Specifications
| Brand | Rock Krawler |
|---|---|
| Part number | RKSRK00025 |
| Position | Rear |
| Lift | 5.5 inches |
| Spring design | Triple rate |
| Color | Black |
| Fitment type | Direct fit |
Vehicle fitment
Rock Krawler lists these springs for the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and for the 1997–2006 Jeep Wrangler (TJ) in its 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X models.
The 2007 and newer JK and the JL are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 5.5-inch rear lift is a major change for an LJ or TJ. Check the rear driveline angle, the shock length and the brake lines after installation.
What’s included
The rear coil springs as titled. Compare the parts received with your installation plan before starting.
