Overview

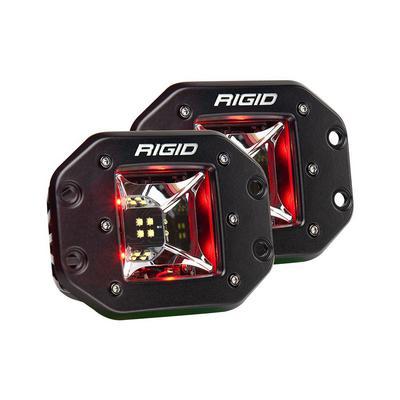

The Rigid Radiance Scene Flush Mount LED Light Pod, part number 68212, is a square 3-by-3-inch scene light with a red backlight, sold as a kit. Rigid built the Radiance Pod Scene Light to offer its quality in a more affordable format, and it is designed for area lighting around a vehicle rather than a long driving beam.
The pod uses a high-grade aluminum alloy housing like the D-Series, with a thermally optimized heat sink. Its optics project light forward, with up to 100 degrees of horizontal spread. The scene light draws a modest current, and the backlight is available in white, green, amber, blue or red.
Key features
- Scene light pattern with up to 100 degrees of horizontal spread
- Square 3-by-3-inch housing
- Flush mount with a black finish
- Red backlight, with other backlight colors offered
- High-grade aluminum alloy housing and thermally optimized heat sink
- Black exposed printed circuit board and forward projecting optics

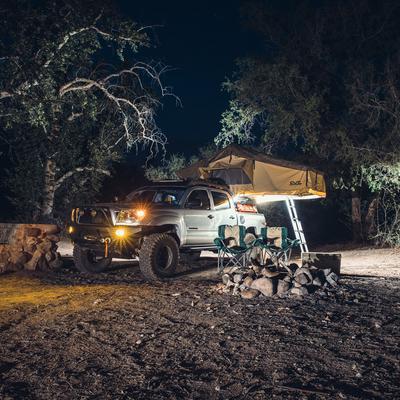

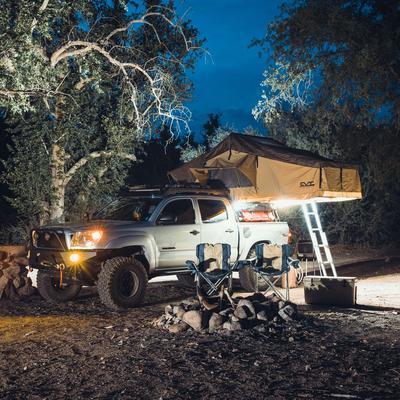

Scene lighting around camp
Scene lights work best when the job is close to the vehicle. Their wide spread covers a campsite, a work bay, or the rear of a trailer without forcing the driver to aim a narrow beam. Mount the pod where it will light the ground rather than the eyes of people nearby, and keep the wiring out of the way of foot traffic. A scene light also works well as a lower-glare option for tasks that need even light across a surface.
Flush mounts ask for a clean panel and a tidy cable run. Measure the opening before cutting, and confirm the depth behind the panel leaves room for the housing and the wiring. Seal the edge where the housing meets the surface so water and dust stay out of the electronics, and check that the heat sink has air moving across it. A pod that runs hot in an enclosed panel will dim over time.
- Measure the opening and the depth before cutting
- Seal the flush edge against dust and water
- Leave air space around the heat sink
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 68212 |
| Series | Radiance Pod Scene |
| Sold as | Kit |
| Light shape | Square, 3 by 3 inches |
| Mounting | Flush |
| Lens color | Red |
| Beam pattern | Scene, up to 100 degrees horizontal spread |
| Finish | Black |
| Bulb type | LED |
Vehicle fitment
This scene pod is not made for one vehicle. Its flush mount means the panel opening has to fit the 3-by-3-inch housing, and the position is chosen by the owner for area lighting such as work lights or camp setups.
Installation notes
Cut a clean opening for the flush housing and route the wiring through a fused circuit. Keep the cable away from moving parts, and check local rules on colored lighting before wiring the pod to a road vehicle.
What’s included
The kit contains the scene light pod with a red backlight. Check the package contents for wiring and trim before starting the install.
Rigid offers the same scene pod with white, green, amber, blue or red backlight, so the backlight color can be picked to suit the vehicle’s look or the use.
