Overview

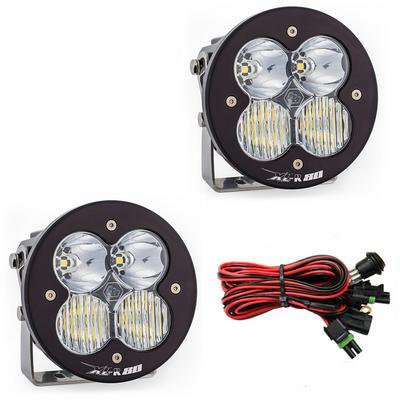

The Baja Designs XL-R Sport Driving/Combo LED Light Pod, part number BAJ767803, is a powerful LED pod with a driving and combo beam, universal fit. It is rated at 9,500 lumens and is a step up from the XL Pro model, with a higher-output LED for greater visibility and brightness. The housing is powder coated and the bezel is anodized.
Key features
- Rated at 9,500 lumens
- Driving and combo beam options
- Powder coated housing
- Anodized bezel
- 20% dimming feature
- Higher-output LED than the XL Pro
Driving and combo beam choices
A driving beam reaches far down the road, which suits open trails and fast travel where you need to see distance. A combo beam blends a spot with a wider flood, so it lights the sides of the trail as well as the path ahead. Many drivers pair a combo pod with a narrower light, or pick a combo for a single mounting point. Think about how and where you drive most before deciding which beam fits your setup.
Dimming helps when the trail is tight or when oncoming traffic is near, since reduced output lowers glare without switching the pod off. Keep the lens clean and aim the pod so the beam lands on the trail rather than in the eyes of other drivers. Recheck the aim after a hard hit or a bracket adjustment, and keep a soft cloth in the vehicle so the lens can be wiped quickly on the trail.
- Keep the wiring on a switch you can reach quickly
- Aim the pod after any mount change
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | BAJ767803 |
| Product | LED light pod, driving/combo |
| Output | 9,500 lumens |
| Dimming | 20% dimming feature |
| Housing | Powder coated |
| Bezel | Anodized |
| Warranty | Limited lifetime |
Vehicle fitment
This pod is a universal fit item rather than a vehicle-specific part. It mounts to a bar, bracket or body location of your choice, so confirm that spot can take the pod before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mount the pod on a bracket that holds it firmly, then wire it through a fused relay. Use the dimming feature to lower output when you need less glare, and check local rules on driving lights before using them on public roads.
What’s included
One LED light pod. Mounting hardware and wiring are not included, so plan those parts before you start.
