Overview

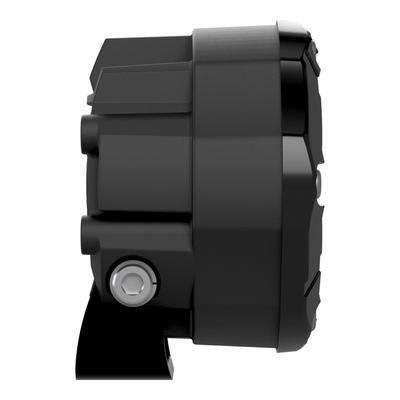

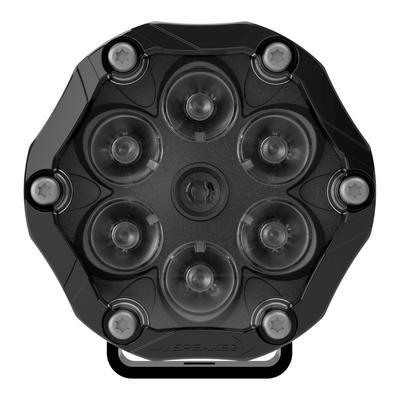

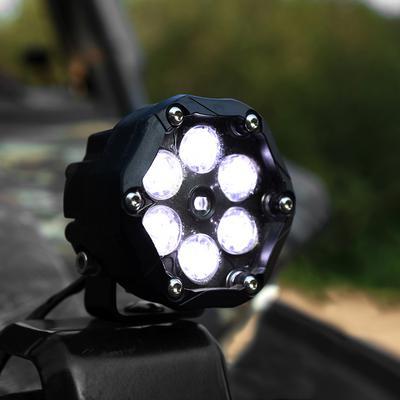

The JW Speaker Trail 6 Sport 3.7 inch Round LED Off Road Light Pods, part number 0555353, are a set of two round LED lights with a flood beam pattern, 3830 lumens and a black housing. The pods are intended for off-road use only and are not street-legal.
They are suited to ATVs and UTVs. The kit includes a universal bracket, mounting hardware and 2 quick disconnect harnesses, and the housing can be installed as a hanging, pedestal or panel mount using the template in the box.
Key features

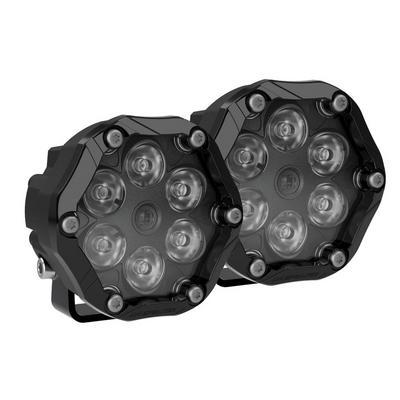

- Set of 2 round 3.7 inch LED pods

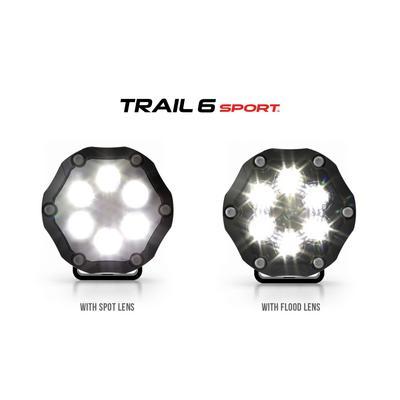

- Flood beam pattern, with 3 sets of interchangeable lenses: Spot, Medium flood and Wide flood
- Listed output of 3830 lumens
- Hanging, pedestal or panel mount using the included template
- Quick disconnect harnesses help protect the lights from dust and water.
- Intended for off-road use only; not street-legal
Aiming and beam choice
A flood beam spreads light wide and close, which suits trail edges and camp areas, while a spot lens throws light farther down the track. The three lens sets in the kit let you change the pattern to suit the terrain, so it is worth matching the lens to how you drive.
Aim the pods low and slightly outward so the light shows the ground ahead without lighting up the trees and creating glare. Mount them where the bracket can be adjusted after the first runs, since trail vibration can shift the angle over time.
- Pick the lens to match open trail or tight woods
- Aim low to reduce glare in fog and dust
- Re-check bracket angles after rough trail runs
- Keep harness connections dry and clean
Specifications
| Brand | JW Speaker |
|---|---|
| Part number | 0555353 |
| Product type | Round LED light pods |
| Series | Trail 6 Sport |
| Sold as | Set of 2 |
| Size | 3.7 inches |
| Light shape | Round |
| Bulb type | LED |
| Light color | White |
| Beam pattern | Flood (lenses for Spot, Medium flood and Wide flood) |
| Lumens | 3830 |
| Voltage max | 12 (as listed) |
| Amp draw | 2.80 (as listed) |
| Housing color | Black |
| Mounting location | Surface |
| Use | Off-road use only; not street-legal |
Vehicle fitment
The Trail 6 Sport light pods are not vehicle-specific and carry a universal fit. They fit Jeep JK and JL models and can be mounted anywhere on the Jeep with multiple mounting brackets.
They also suit other off-road applications, including ATVs and UTVs.
The pods are intended for off-road use only and are not street-legal. Check local regulations before use. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Wire the Trail 6 Sport light pods through a correctly rated fuse and relay as the manufacturer directs, route wiring away from heat and moving parts, and aim the lights so they do not dazzle other drivers. Check local regulations before using auxiliary lighting on public roads, and re-check mounting hardware after the first miles of driving.
What’s included
Two Trail 6 Sport LED pods, a universal bracket, mounting hardware, 2 quick disconnect harnesses and 3 sets of interchangeable lenses (Spot, Medium flood and Wide flood), with a mounting template.
