Rigid Industries D-Series Dually Rear Facing Dual Function LED Lights – 90151

Rigid Industries

Shop Rigid Industries Light Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear-facing amber lights with high and low modes
  • Three-position rocker switch: high, low or off
  • Low mode at 20 percent intensity for running light use
  • Rated 50,000-hour lifespan.

Description

Overview

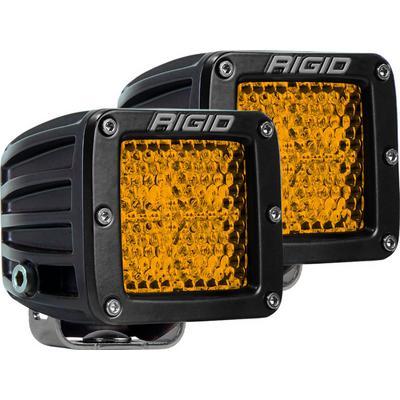

The Rigid Industries D-Series Dually Rear Facing Dual Function LED Lights, part number 90151, are a kit of amber LED lights designed to face rearward. Each light has a high and a low output, so the same light can serve as a running light at low power and as a brake light at full power.

The three-position rocker switch lets the driver choose High, Low or Off. High runs at full intensity, and Low runs at 20 percent intensity. The lights use an oversized heat sink for cooling and have a rated lifespan of 50,000 hours. A three-wire harness is needed for the dual function, and the switch selects which mode is active.

Rigid’s dual function design is meant for conditions that change during a trip. A driver can run the lights at low power in most driving and step up to full power when the light is needed as a brake signal.

Key features

  • Dual function: high for a brake light, low for a running light
  • Three-position rocker switch with High, Low and Off
  • Low mode at 20 percent intensity
  • Oversized heat sink for cooling
  • 50,000-hour rated life.
  • Amber lens in a square housing

Wiring brake and running functions

A dual-function light changes role with the switch, so wiring should separate the brake and running circuits cleanly. Connect the high setting to the brake circuit and the low setting to the running circuit, and fuse each path. Test each mode while the vehicle is parked before relying on it on the trail or the road.

The amber lens and dark housing are built for daily use, but rear-mounted lights take rain, mud and road salt. Keep the surface clean and the cable protected from heat and abrasion. Rear lighting rules vary, so check local requirements for color and function before fitting the kit to a road-going vehicle.

  • Connect high to the brake circuit, low to running
  • Fuse each path separately
  • Test every mode while parked

Specifications

Brand Rigid Industries
Part number RIG90151
Series D-Series Dually Rear Facing Dual Function
Sold as Kit
Light shape Square
Housing length 2 inch
Lens color Amber
Beam pattern Combo
Mounting Surface
Finish Black
Wiring Three-wire harness
Control Three-position rocker switch: High, Low, Off
Rated life 50,000 hours

Vehicle fitment

These rear-facing lights are a universal fit, so they are not built for one vehicle. They mount on the surface at the rear of the vehicle, and the owner picks the location. The high and low modes are meant to be wired to the brake and running circuits.

Installation notes

Use the three-wire harness so the switch can select high and low. Surface mounting needs a clean mounting spot and a protected cable route. Rear-facing brake and running lights are regulated in many places, so check local rules before wiring them to a road vehicle.

What’s included

The kit includes two rear-facing LED lights, the three-position rocker switch and the three-wire harness. Confirm you have the mounting hardware you need before starting the install.

Questions & Answers

Are the Rigid rear-facing lights amber or red?

This kit is sold with amber lenses. Rigid also offers the same dual function design in red, so check the lens color before fitting if you need red.

How do the high and low settings work?

High runs at full intensity and works as a brake light. Low runs at 20 percent intensity and works as a running light, and the rocker switch chooses between them.

Does the kit include a harness?

Yes. A three-wire harness is needed for the dual function, and it is included with the kit along with the rocker switch.

Can the high setting be wired to the brake pedal circuit?

Yes, the high setting is intended to work as a brake signal when wired to the brake circuit. Keep each path on its own fuse and confirm both functions work while the vehicle is parked before driving.

How do I keep the lens clear and the heat sink working?

Wipe the amber lens with mild soap and water and keep mud from packing around the housing. Clear debris from the heat sink fins so air can move across them. Inspect the mounting after rough trips and tighten any loose fasteners.
