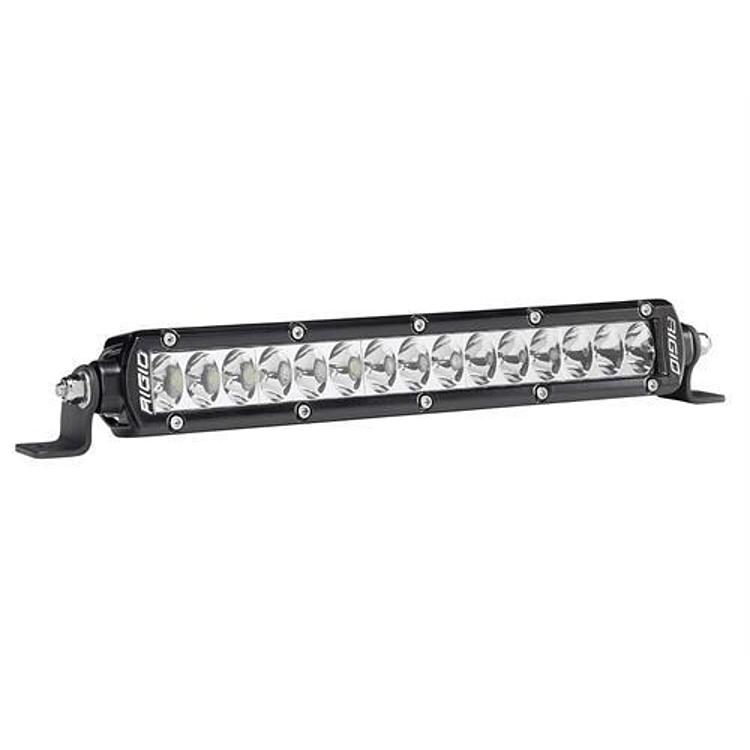

Rigid Industries SR2-Series Single Row Driving LED Light – 910622

Rigid Industries

Shop Rigid Industries Offroad Racing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Single row low-profile LED light bar, SR2-Series
  • Extruded aluminum housing with polycarbonate lens
  • Two-piece housing with improved cooling and integrated Deutsch/AMP plug
  • Rigid Industries part number 910622, universal fit

Description

Overview

The Rigid Industries SR2-Series Single Row Driving LED Light, part number 910622, is a low-profile single row LED light bar. It is used for on and off-road racing, police and fire rescue vehicles and marine applications, and it comes in a range of lengths and configurations. The SR-Series is the low-profile option in the Rigid lineup, and the E-Series is its flagship light.

The bar projects light at long distances while drawing little power. Its extruded aluminum housing and polycarbonate lens are sealed against the elements, and the lens is designed to resist breakage.

The two-piece housing is built to be stronger and more durable than earlier versions, with an improved cooling system and extra mounting bosses on the bottom.

Key features

  • Single row low-profile LED light bar
  • Extruded aluminum housing
  • Polycarbonate lens sealed against the elements
  • Two-piece housing with improved cooling
  • Extra mounting bosses on the bottom of the housing
  • Integrated Deutsch/AMP plug

Choosing a mounting position

Mounting position shapes how a light bar performs. A bar set high and centered throws light farther down the trail, while a bar mounted lower on a bumper or grille gives a wider spread close to the vehicle. Before drilling, hold the bar in place with the vehicle on level ground and angle it to see where the beam lands, so it does not sit in the eyes of oncoming drivers when used on public roads.

Clearance matters as much as angle. Check the hood opening, windshield wipers and any roof rack before choosing a spot, and leave slack in the wiring so the harness reaches the fused relay without strain. Light bars take a steady beating from washboard roads and branches, so inspect brackets and hardware after the first few runs and re-tighten as needed.

  • Measure the mounting surface before buying brackets
  • Route wiring away from moving parts and sharp edges
  • Re-check fasteners after rough trail use

Specifications

Brand Rigid Industries
Part number 910622
UPC 849774011344
Series SR2 single row
Light type LED
Housing Extruded aluminum, two-piece
Lens Polycarbonate
Connector Integrated Deutsch/AMP plug
Mounting hardware User serviceable
Application Universal

Vehicle fitment

It is a universal fit and is not tied to a specific vehicle. Plan the mounting location before ordering, since the bar mounts with user serviceable hardware.

Installation notes

Wire the light through a fused relay, and check your local rules, since off-road light bars may not be legal for use on public roads in every area.

What’s included

The SR2-Series light bar with user serviceable mounting hardware. Check the package contents against your installation before starting.

SKU: RIG910622 Categories: ,

Specification

Shipping weight 3.60 lbs
Package dimensions 14.40 × 5.50 × 5.50 in
brands

Questions & Answers

Is this light bar universal?

Yes. It is a universal fit, so it is not matched to a specific vehicle. Plan the mounting location before ordering.

What is the lens made of?

Polycarbonate. The lens is designed to resist breakage, and the extruded aluminum housing is sealed against the elements as well.

Does the light bar have a connector?

Yes. It has an integrated Deutsch/AMP plug, and the two-piece housing provides a sealing surface for the lens and housing seal.

Can it be used on public roads?

Rules vary by area, and Rigid does not address road use for this bar. Check local rules before mounting it on a street vehicle, since road use is governed by local regulations.

How should a light bar lens be maintained?

Wipe the lens with a soft cloth and water to remove dirt that cuts light output. Check the connector seal and mounting bolts periodically, and look for cracks in the housing after hard trail use. Keep the plug dry and free of corrosion.

Does a light bar need a relay?

Wiring the bar through a fused relay is the usual approach. It keeps the switch circuit light and protects the vehicle wiring from the bar's current draw. Check the wire gauge and fuse rating against the installation instructions supplied with the light.
