Overview

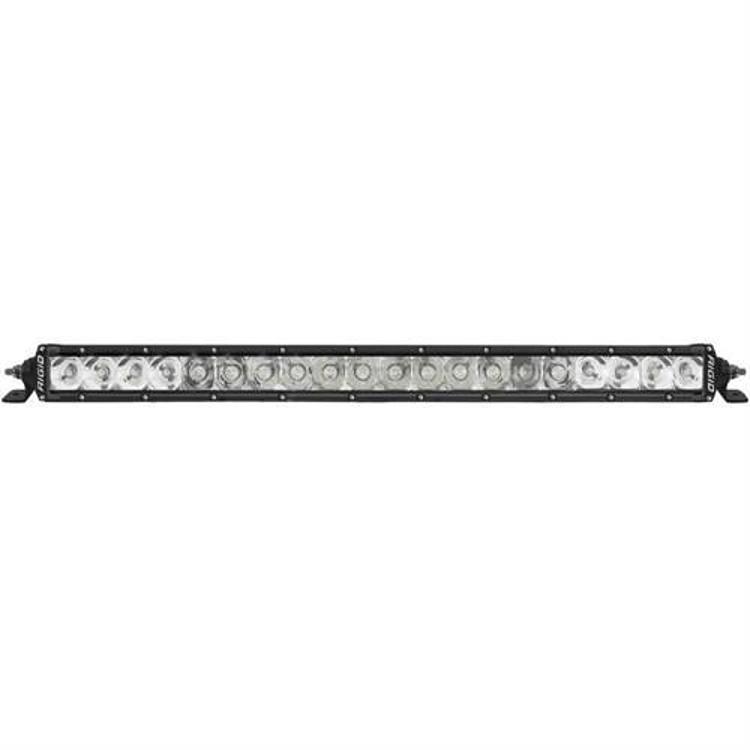

The Rigid Industries 920314 is a 20 inch SR-Series Pro LED light bar with a combo beam, a long, low-profile bar for off-road vehicles that need coverage across a wide area. It is universal fit, so mounting depends on finding a suitable spot rather than matching a model year.
A combo pattern pairs a narrower spot beam for distance with a flood beam for width, so one bar covers both jobs. The single row LED design suits tight spaces, and improved LEDs deliver up to 111% more raw lumens than earlier versions. The housing is less than 2″ tall, and the light projects at extreme distances while using little power. It is also used on industrial, agricultural and marine equipment, and Hybrid or patented Specter optics are offered for the SR-Series Pro.
Key features
- 20 inch length
- Combo beam pattern
- Single row LED design, less than 2″ tall
- Up to 111% more raw lumens than earlier units, per Rigid
- Hybrid or patented Specter optics
- Extruded aluminum housing, powder coated black or white
- Blacked-out circuit boards for a cleaner look
Mounting a long combo bar
A 20 inch bar puts more load on its brackets than a short pod, and it flexes more on rough trails. A rigid, well-braced mounting point keeps the beam aimed where you set it. Look for a surface that is straight across the full length, and avoid spots where the bar would sit in the path of mud, branches or a winch line.
Long bars also need careful wiring routing. Keep the harness clear of moving suspension parts and heat sources, and protect the connector from water. Wiring a fused relay and switch makes the bar easier to control and keeps the vehicle’s electrical system protected.
- Check bracket strength for the full length
- Keep the harness clear of suspension
- Use a fused relay and switch
- Re-check mounting hardware after rough runs
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 920314 |
| UPC | 849774031489 |
| Size | 20 Inch |
| Bulb type | LED |
| Beam pattern | Combo |
| Optics | Hybrid or patented Specter |
| Lens color | Clear |
| Type | Flood/Spot |
| Mounting type | Bracket |
| Housing | Extruded aluminum |
| Finish | Black or white durable powder coat |
| Height | Less than 2″ tall |
| Sold as | Single |
Vehicle fitment
It is universal fit, so it is not built for a specific vehicle. Fit depends on whether your mounting surface has room for the full 20 inch length and the bracket placement you choose.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Route the wiring away from moving parts and run it through a fused relay with a switch. Local rules on auxiliary lights apply on public roads, so check them before installing the bar on a street-driven vehicle.
What’s included
The bar is sold as a single unit with a bracket mounting type.
Not included: Check the package contents against your installation before starting, including the wiring harness, relay and switch.
