Rigid Industries Radiance Curve Plus 30″ Light Bar (Amber) – 33004

Rigid Industries

Shop Rigid Industries Light Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit 30-inch amber LED light bar, part number 33004
  • Broad Spot optics combine spot and flood beam patterns
  • Up to 4,752 raw lumens in the 10 size.
  • Multi-Trigger Harness and two backlit LED rocker switches included

Description

Overview

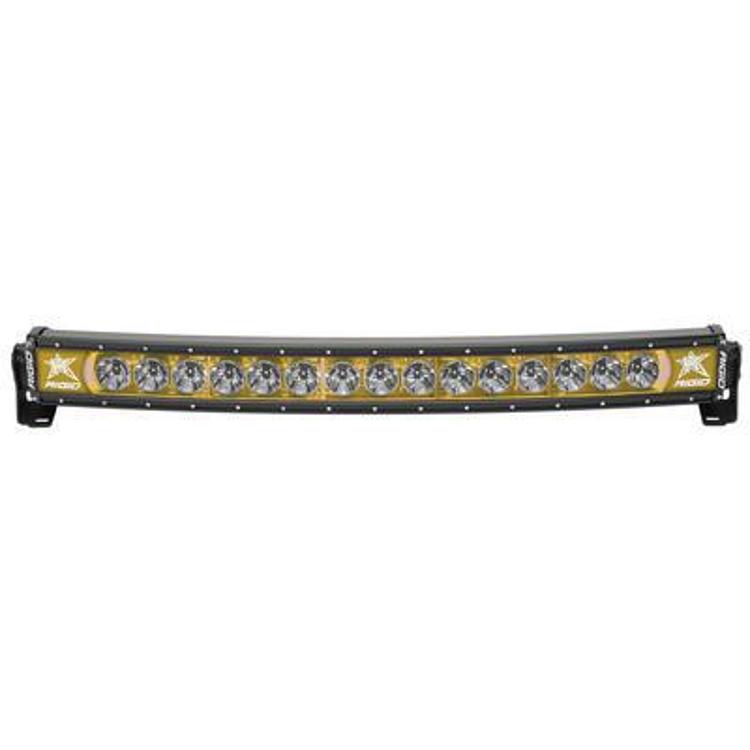

The Rigid Industries Radiance Curve Plus 30-inch light bar in amber, part number 33004, is an LED light bar for off-road and auxiliary lighting. It is universal fit, so no make, model or year applies, and the mounting plan depends on your bracket and location. The Radiance Plus uses the same high-grade aluminum alloy housing as the E-Series, but its interior is laid out differently, with an exposed black printed circuit board and a forward-projecting optic.

The Radiance Plus suits buyers who want a custom look with selectable backlighting. Amber is one of five colors on the Radiance range, alongside white, red, blue and green. The LED design gives more light output than earlier versions while drawing a fraction of the power incandescent lighting needs. A Multi-Trigger Harness comes with two backlit rocker switches, so each circuit can be controlled separately.

Key features

  • Broad Spot optics that blend spot and flood beam patterns
  • Up to 4,752 raw lumens in the 10 size
  • Amber backlight, with white, red, blue and green also offered
  • Black exposed printed circuit board
  • Multi-Trigger Harness made for the Radiance light bar
  • Backlit LED rocker switches in red and blue that control circuits separately

Mounting and clearance checks

Clearance is the first thing to settle with an amber bar. Measure the mounting surface, then check that the bar sits clear of the hood, tailgate and any spare tire swing. A bracket should spread load across solid structure rather than thin sheet metal, and the bar should be aimed with the vehicle at its normal ride height so the beam does not sweep into oncoming eyes.

Amber light is often chosen for dusty or foggy conditions because it can reduce glare from fine particles. The color is a matter of preference, and the beam itself comes from the optic. Keep the wiring out of the wheel path, and recheck clamps after rough driving, since vibration loosens fasteners over time.

  • Use threadlocker on bolts that take vibration
  • Inspect the lens seal after washing or water crossings

Specifications

Brand Rigid Industries
Part number 33004
UPC 849774016370
Length 30 inches
Color Amber
Optic Broad Spot
Housing High-grade aluminum alloy
Light output Up to 4,752 raw lumens in the 10 size
Circuit board Black exposed printed circuit board
Included controls Multi-Trigger Harness with two backlit LED rocker switches (red and blue)

Vehicle fitment

This 30-inch light bar is universal fit, so it is not tied to a specific year, make or model. Fit depends on the bracket and mounting spot you choose, and the 30-inch length should suit the space you have.

Rigid offers this line in several lengths, so measure the mounting area for the 30-inch size before installing.

Installation notes

The Multi-Trigger Harness and its two rocker switches handle the backlight circuits. Wire the bar through a fused relay and a switch, and check local road-use rules before running auxiliary lights on public roads.

What’s included

One 30-inch Radiance Curve Plus light bar in amber, a Multi-Trigger Harness and two backlit LED rocker switches in red and blue.

Not included: Mounting brackets are not included with this bar.

SKU: RIG33004 Category:

Specification

Shipping weight 9.00 lbs
Package dimensions 32.90 × 6.00 × 6.00 in
brands

Questions & Answers

Is the Rigid Radiance Curve Plus 33004 made for one vehicle?

No. It is universal fit, so no specific make, model or year applies. Confirm the bracket and mounting location on your own vehicle before installing, and measure the 30-inch length against the space you have.

How much light does part 33004 produce?

Rigid's figure for this line is up to 4,752 raw lumens in the 10 size. No separate lumen rating is given for the 30-inch amber model, so treat that number as the line-level claim.

Does the bar include switches for the backlight?

Yes. A Multi-Trigger Harness comes with the bar, along with two backlit LED rocker switches, one red and one blue. Those switches let each circuit be run independently, so the backlight can be controlled separately from the main light.

Do amber lights suit dusty or foggy driving?

Amber light is often preferred in dust, fog and rain because it can cut glare from airborne particles. It is a common choice for these conditions, though the light output comes from the bar and its optic rather than the color.
