Overview

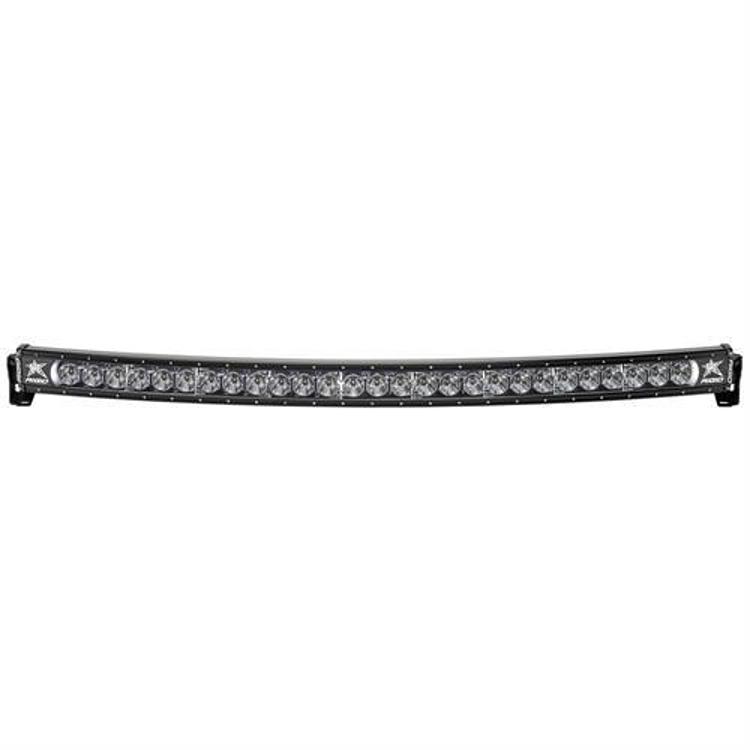

The Rigid Industries Radiance Curve Plus 50-inch light bar in white, part number 35000, is an LED light bar that is universal fit, so it is not tied to one year, make or model. It belongs to the Radiance Plus line, which runs from 20 to 54 inches.
Rigid built the Radiance Plus with improved LED technology for more light output than earlier Radiance bars, while drawing a fraction of the power incandescent lighting uses. Its Broad Spot optics blend a spot and a flood pattern into one forward-projecting beam. The housing is the same high-grade aluminum alloy used on the E-Series, and Rigid rates the 10-inch size at up to 4,752 raw lumens.
Key features
- Broad Spot optics combining spot and flood beam patterns
- Improved LED technology with more output than earlier Radiance bars
- High-grade aluminum alloy housing shared with the E-Series
- Black exposed printed circuit board
- Back-lighting available in white, amber, red, blue and green
- Multi-Trigger Harness designed for the Radiance light bar
- Two backlit LED rocker switches (red and blue) so each circuit runs independently
Planning a 50-inch install
A 50-inch bar is long enough to need a solid mount across its full span. Before drilling, measure the bumper, roof rack or grille area and mark the mount points so the bar sits level and clears any hood or body edges. Check how the bar will move with the vehicle, since flex in a thin panel can change the aim over time.
Two switches make it easy to run work lights and back-lighting on separate circuits, but each circuit needs its own fuse. Route the feed close to the battery, and keep leads away from hot exhaust components and moving suspension parts. Check the wiring periodically for chafing, and re-check the bar’s fasteners after rough trail use.
- Mark mount points before drilling
- Fuse each circuit separately
- Check leads for chafing periodically
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 35000 |
| UPC | 849774016431 |
| Product line | Radiance Curve Plus |
| Length | 50-inch |
| Color | White |
| Light source | LED |
| Optics | Broad Spot |
| Housing | High-grade aluminum alloy |
| Circuit board | Black exposed printed circuit board |
| Output | Up to 4,752 raw lumens in the 10-inch size |
| Back-lighting colors | White, amber, red, blue, green |
| Included controls | Multi-Trigger Harness, two backlit LED rocker switches (red and blue) |
| Line lengths | 20 to 54 inches |
Vehicle fitment
Rigid classifies this bar as universal fit. It is not designed for one specific vehicle, so suitability depends on your mounting location, available wiring path and how the bar is secured.
Because the bar is not vehicle-specific, measure the 50-inch length against the mounting area before choosing a spot. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The harness and rocker switches are included, so the bar can be wired to a switch panel with two separate circuits. Run the feed through a fuse, keep leads clear of moving parts and check local rules on auxiliary lights before using them on public roads.
What’s included
The package includes the Multi-Trigger Harness designed for the Radiance light bar, plus two backlit LED rocker switches in red and blue.
Not included: Confirm whether mounting brackets are in the box before planning the install.
