Overview

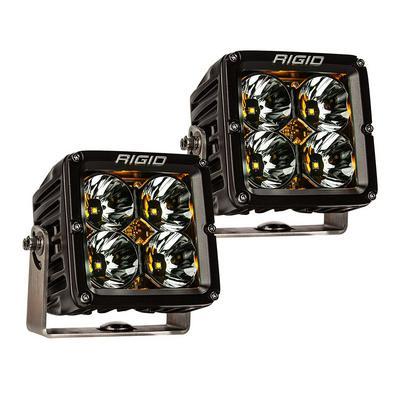

The Rigid Industries Radiance Pod XL (Amber), part number RIG32205, is a set of two 4-by-4-inch LED pods with Broad Spot optics and an amber backlight. The pods use the same LED technology and Broad Spot optics as the Radiance light bars and are sized and shaped similarly to the D-XL PRO.
Each pod is rated at 2992 lumens and 50 watts. The Broad Spot optic blends a spot and flood pattern, and Rigid suggests it suits a wide range of lighting needs. The pods mount on the surface. Rigid offers the backlight in white, amber, blue and red, and this set is the amber version.
The forward projecting optics are designed to put the LED output where it is needed. Rigid also gives a horizontal beam angle of 15 degrees and a maximum input of 15 volts for the set, so the listed figures describe the light’s output and electrical limits.
Key features
- Broad Spot optics combining spot and flood patterns
- 2992 lumens and 50 watts per pod
- Amber lens with amber backlight
- Forward projecting optics that direct the LED output
- Blacked-out circuit board for a refined look
- Multi-Trigger Harness with separate backlit rocker switches for the forward light and backlight
Accent light and driving light
An accent backlight and a forward light do different jobs, and it helps to keep them separate in both wiring and habit. The forward beam is the one to rely on for seeing the trail, while the amber backlight is best kept for marking the vehicle at camp or in a parking area. The harness gives each function its own switch, so the backlight can be left off when the forward beam is needed.

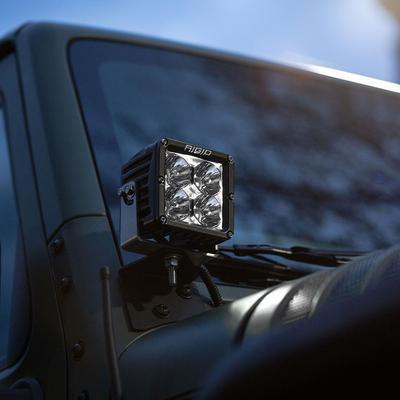

Mounting position affects both functions. Surface mounts let the owner choose a spot with a clear view forward and a clean path for the cable. Check that the pods stay clear of the hood line and of any bar that could snag them. Keep the switch within easy reach so the forward beam can be turned on without searching for it.
- Use the forward beam for trail visibility
- Keep the amber backlight for camp and parking
- Plan the switch location before routing the cable
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | RIG32205 |
| Series | Radiance Pod XL |
| Quantity | Set of 2 |
| Light shape | Square |
| Size | 4 inch x 4 inch |
| Lens color | Amber |
| Beam pattern | Broad Spot |
| Horizontal beam angle | 15 degrees |
| Lumens | 2992 |
| Watts | 50 |
| Lux at 10 m | 500 |
| Maximum voltage | 15 V |
| Mounting | Surface |
| Wiring | Multi-Trigger Harness with backlit rocker switches |
Vehicle fitment
It is sold as a universal fit and is not built for one vehicle. Surface mounting leaves placement to the owner, and the backlight serves as an accent rather than a driving beam.
Installation notes
The Multi-Trigger Harness is wired with separate switches for the forward light and the backlight, so plan the switch location before routing the cable. Keep the wiring protected from rocks and water, and use a fused circuit. Check local rules on colored lighting before using the pods on a road vehicle.
What’s included
The set includes two pods and the Multi-Trigger Harness with backlit rocker switches, which lets the forward light and backlight be controlled independently.
