Rigid Industries Radiance Pod XL (White) – 32201

Rigid Industries

Shop Rigid Industries Light Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Set of two white-backlit Radiance Pod XL lights, 4 by 4 inches each
  • Broad Spot optics with 2992 lumens and 50 watts per pod.
  • White backlight controlled separately from the forward light
  • Multi-Trigger Harness with backlit rocker switches included

Description

Overview

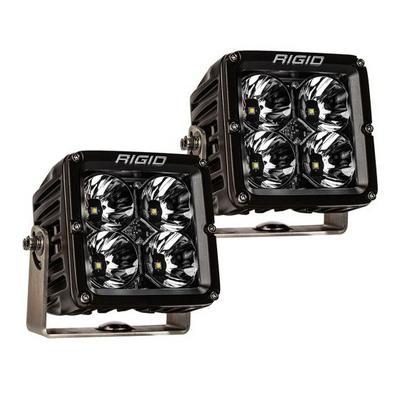

The Rigid Industries Radiance Pod XL (White), part number RIG32201, is a set of two 4-by-4-inch LED pods with Broad Spot optics and a white backlight. It is part of the Radiance family and uses the same LED technology and Broad Spot optics as the Radiance light bars.

Rigid rates each pod at 2992 lumens and 50 watts. The Broad Spot optic combines spot and flood beam patterns, and the pods are sized and shaped similarly to the D-XL PRO. The white backlight is one of four colors offered, along with amber, blue and red.

The pods have a black exposed printed circuit board and forward projecting optics. The set has a 15-degree horizontal beam angle, a maximum voltage of 15 volts and 500 lux at 10 meters.

Key features

  • Broad Spot optics combining spot and flood patterns
  • 2992 lumens and 50 watts per pod
  • White backlight
  • Forward projecting optics that direct the LED output
  • Black exposed printed circuit board
  • Multi-Trigger Harness with separate backlit rocker switches

Setting up a white auxiliary light

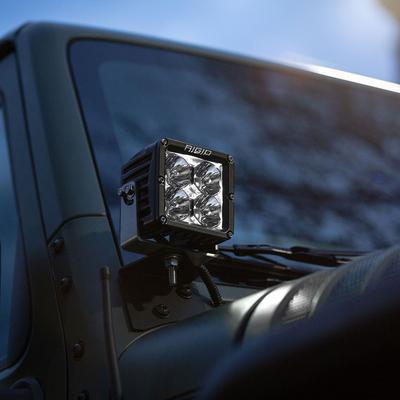

A white auxiliary pod is often used as a working light, so aim and placement matter more than the backlight. Set the forward beam at a height and angle that covers the ground you need, and check the pattern on a wall before final mounting. The white backlight is a secondary function, and the harness lets the owner use it independently when the forward beam is not needed.

Installation and upkeep go hand in hand. Route the cable away from heat and moving parts, protect it where it passes through panels, and seal the connections against water. Wipe the lens after dusty or muddy use and check the mounting bolts periodically, since vibration can slowly shift the aim.

  • Set aim on a wall before final mounting
  • Protect the cable where it passes through panels
  • Check mounting bolts and aim periodically

Specifications

Brand Rigid Industries
Part number RIG32201
Series Radiance Pod XL
Quantity Set of 2
Light shape Square
Size 4 inch x 4 inch
Backlight color White
Beam pattern Broad Spot
Horizontal beam angle 15 degrees
Lumens 2992
Watts 50
Lux at 10 m 500
Maximum voltage 15 V
Mounting Surface

Vehicle fitment

It is sold as a universal fit and is not built for one vehicle. Surface mounting leaves placement to the owner, so aim the forward beam where the light is needed.

Installation notes

Use the Multi-Trigger Harness to switch the forward light and the backlight separately, and plan the switch location before routing. Keep the cable protected from rocks and water, and wire the pods through a fused circuit. Check local rules on auxiliary lighting before using them on a road vehicle.

What’s included

The set includes two pods and a Multi-Trigger Harness with backlit rocker switches.

The white backlight and forward light are switched separately through the harness, so the owner can run either one on its own.

Questions & Answers

Does the Rigid Radiance Pod XL white set include a harness?

Yes. It includes a Multi-Trigger Harness with separate backlit rocker switches for the forward light and the white backlight, so the two can be used independently.

What beam does the Radiance Pod XL 32201 throw?

It uses a Broad Spot optic, which Rigid says combines spot and flood patterns for a wide variety of needs, with a 15-degree horizontal beam angle.

How much output does each white Radiance Pod XL have?

Each pod is rated at 2992 lumens and 50 watts, and the set is rated at 500 lux at 10 meters.

How often should the pod lenses be inspected?

Inspect the lenses after each rough trip or muddy outing. Look for cracks, cloudiness and grit build-up, since any of these can reduce light output and change the beam pattern.

Can the white backlight be used with the forward light on together?

Yes, the harness switches the forward light and the white backlight separately, so both can run together or on their own. Check the current draw against the fuse before running both at once.
