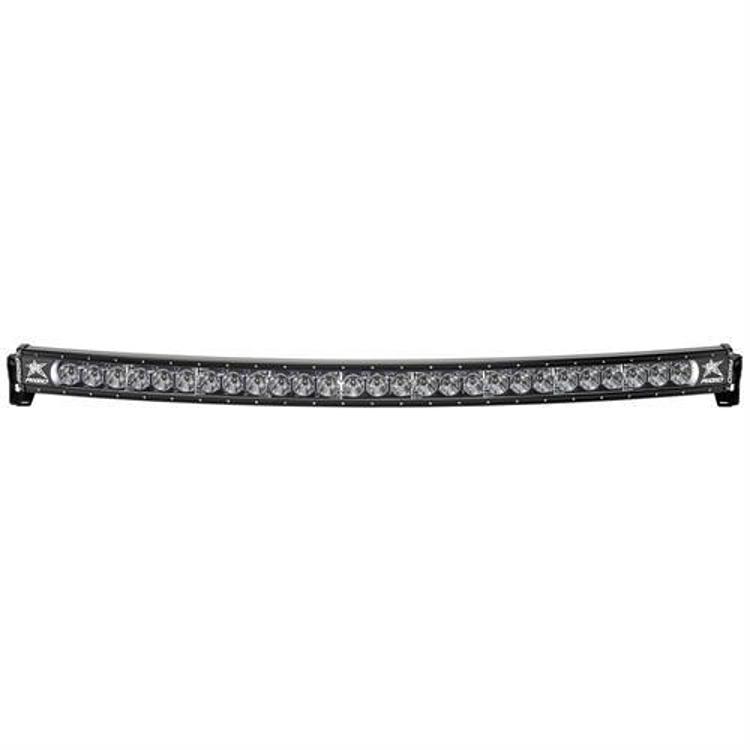

Rigid Industries Radiance Curve Plus 54″ Light Bar (White) – 36000

Rigid Industries

Shop Rigid Industries Light Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries Radiance Curve Plus 54-inch light bar, white, part number 36000
  • Universal fit; mount position chosen by the installer
  • Broad Spot optics in a high-grade aluminum alloy housing
  • Multi-Trigger Harness and two backlit rocker switches included

Description

Overview

The Rigid Industries Radiance Curve Plus 54-inch light bar in white, part number 36000, is an LED off-road light bar from the Radiance Plus range, which runs from 20 to 54 inches. It is a universal fit bar, so it is not built for one vehicle and you choose where it mounts.

The aluminum housing uses the same high-grade alloy as the E-Series, while the Radiance design differs inside. A black exposed printed circuit board sits behind Broad Spot optics, which blend spot and flood patterns into one forward-projecting beam. The Radiance Plus offers improved light output, and its backlighting comes in white, amber, red, blue and green.

Key features

  • High-grade aluminum alloy housing shared with the E-Series line
  • Black exposed printed circuit board
  • Broad Spot optics that combine spot and flood beam patterns
  • Improved LED technology, which Rigid says gives more light output than ever before
  • Back-lighting available in white, amber, red, blue and green
  • Multi-Trigger Harness designed for the Radiance light bar, included
  • Two backlit LED rocker switches, red and blue, so each circuit can run independently

Choosing a mounting location

A bar this long needs a stable, flat surface such as a bumper, roof rack or front crossmember. Check that the mount will not flex under trail vibration, and confirm the bar clears the hood, windshield and doors when the steering turns. Measure the full footprint before drilling anything, because a bar that overhangs a corner can catch branches and rock edges on the trail.

Beam direction matters as much as position. A forward-facing bar aimed slightly down lights the trail surface without washing out your view, while a higher mount reaches farther into the trees. Keep the bar level, and re-check every fastener after the first few trail runs, since vibration loosens hardware over time.

  • Check the mounting surface for flex before drilling
  • Keep wiring away from moving suspension parts
  • Confirm clearance at full steering lock

Specifications

Brand Rigid Industries
Part number 36000
UPC 849774031021
Product line Radiance Curve Plus
Length 54 in
Color White
Housing High-grade aluminum alloy
Optic Broad Spot
Backlight colors White, amber, red, blue, green
Included harness Multi-Trigger Harness with two backlit LED rocker switches (red and blue)

Vehicle fitment

It is a universal fit bar, so no make, model or year applies. The 54-inch length is the full-size option in the Radiance Plus line, so confirm your mounting surface can hold the entire bar before choosing a location.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Route the power leads through a fused relay and a switch rather than connecting the bar straight to the battery, because light bars draw substantial current. Keep the wiring clear of moving suspension parts, and disconnect the battery before making connections. Check local rules before running auxiliary lights on public roads.

What’s included

The package includes the 54-inch white Radiance Curve Plus light bar and the Multi-Trigger Harness with two backlit LED rocker switches, red and blue.

Not included: Mounting brackets and a power source are not included.

SKU: RIG36000 Category:

Specification

Shipping weight 21.60 lbs
Package dimensions 56.90 × 6.00 × 6.00 in
brands

Questions & Answers

Is part 36000 a universal-fit light bar?

Yes. Rigid Industries lists part 36000 as universal fit, which means it is not built for one specific vehicle. The 54-inch bar needs a mounting spot long enough for its full length, so measure the area you plan to use.

What is the lens color and optic on this 54-inch white bar?

The bar is listed in white and uses Broad Spot optics, which combine spot and flood beam patterns in one forward projection. The housing is high-grade aluminum alloy, the same material used in the E-Series line.

Does this light bar include switches?

Yes. The Multi-Trigger Harness supplied with the Radiance Plus includes two separate backlit LED rocker switches, one red and one blue, so each circuit can run on its own. Mounting brackets and a power source are not included.

How often should the rocker switches and harness be checked?

Check the connections every few months, looking for loose terminals, chafed insulation and corrosion at the switch housings. Dry, tight connections help the harness keep both circuits working independently.
