Rigid Industries Radiance Curve Plus 40″ Light Bar (Red) – 34002

Rigid Industries

Shop Rigid Industries Light Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit 40-inch red LED light bar, part number 34002
  • Broad Spot optics with a Multi-Trigger Harness included
  • Up to 4,752 raw lumens in the 10 size.
  • Two backlit LED rocker switches (red and blue) for separate circuits

Description

Overview

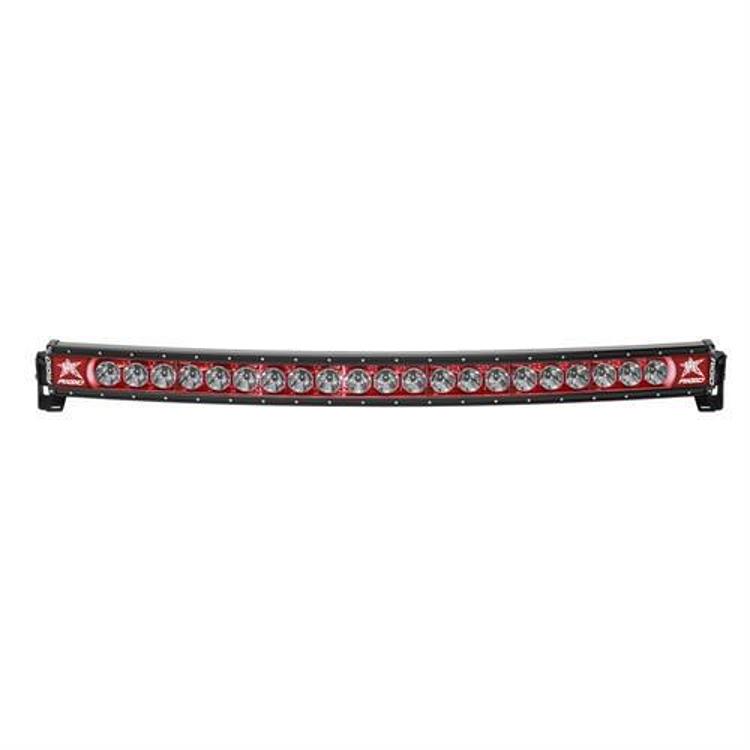

The Rigid Industries Radiance Curve Plus 40-inch light bar in red, part number 34002, is an LED light bar for off-road and auxiliary lighting. It is universal fit, so no make, model or year applies and the bar is not designed for one vehicle. The aluminum alloy housing is the same material used on the E-Series bars, while the Radiance interior uses its own layout with a black exposed printed circuit board.

Red is one of five backlight options on the Radiance range, alongside white, amber, blue and green. The LED design delivers more light than before while drawing a fraction of the power incandescent lighting needs. Broad Spot optics blend spot and flood patterns, and the Multi-Trigger Harness comes with two backlit switches, one red and one blue, so each circuit runs separately.

Key features

  • Broad Spot optics that merge a spot and flood beam pattern
  • Up to 4,752 raw lumens in the 10 size of the line.
  • Red backlight option, with white, amber, blue and green also offered
  • Black exposed printed circuit board
  • Harness with Multi-Trigger switching built for the Radiance
  • Two backlit LED rocker switches (red and blue) for separate circuits

Red light and night use

Red backlighting is usually chosen for looks. Red light is not a substitute for forward white or amber illumination, so plan the backlight around the bar’s main job. If you mainly want a clean forward beam, keep the backlight switch separate so you can run the lamp without it. Night driving on trails works best with the forward beam aimed low enough to show the surface ahead.

Care for the lens and circuit board is simple. Keep the optic free of mud and road film, check the circuit board area for moisture after washing, and inspect the rocker switches for sticking. Replace any harness section that shows melted insulation. Before a longer trip, test each switch and confirm both circuits respond as expected.

  • Keep the forward beam separate from the backlight
  • Clean the optic after muddy runs
  • Test each rocker switch before trips
  • Inspect the harness for melted insulation

Specifications

Brand Rigid Industries
Part number 34002
UPC 849774016400
Length 40 inches
Color Red
Optic Broad Spot
Housing High-grade aluminum alloy
Light output Up to 4,752 raw lumens in the 10 size
Circuit board Black exposed printed circuit board
Included controls Multi-Trigger Harness with two backlit LED rocker switches (red and blue)

Vehicle fitment

Rigid lists universal fit for this 40-inch red bar, so no vehicle is named and the bar is not tied to a make, model or year. Your bracket and mounting spot determine the install, so measure the 40-inch length against the area before fastening anything.

Confirm the 40-inch length suits your mounting area before installing.

Installation notes

Use the included harness so the red and blue rocker switches drive their own backlight circuits. Run power through an inline fuse and relay, and check local road-use rules for auxiliary lights before using the bar on public roads.

What’s included

One 40-inch red Radiance Curve Plus light bar, a Multi-Trigger Harness and two backlit LED rocker switches.

Not included: Brackets and mounting hardware are not part of what is named here.

SKU: RIG34002 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 42.90 × 6.00 × 6.00 in
brands

Questions & Answers

Will the 34002 red Radiance bar fit my truck?

Fitment is universal, meaning Rigid names no make, model or year for this red bar. Plan the bracket and mounting spot around your own vehicle, and check the 40-inch length against the area before installing.

What is the lumen output of part 34002?

Rigid cites a top figure of 4,752 raw lumens in the 10 size for the family. The red 40-inch unit has no separate lumen rating given, so use that figure as the family maximum.

Does the bar include the switches for its red backlight?

Yes. The Multi-Trigger Harness comes with two backlit LED rocker switches, one red and one blue, so the red and blue circuits can run independently. The bar itself also has selectable white, amber, blue and green backlighting.

Does the red backlight affect the forward beam?

They can be used independently. Each switch runs its own circuit, so you can run the backlight without the forward beam, or the reverse, once the wiring is complete.

How should I store the bar during the off-season?

Remove the bar, wipe it clean and keep it in a dry place away from direct sun. Store the harness coiled loosely and keep connectors covered, so moisture and dust stay out of the terminals.
