Overview

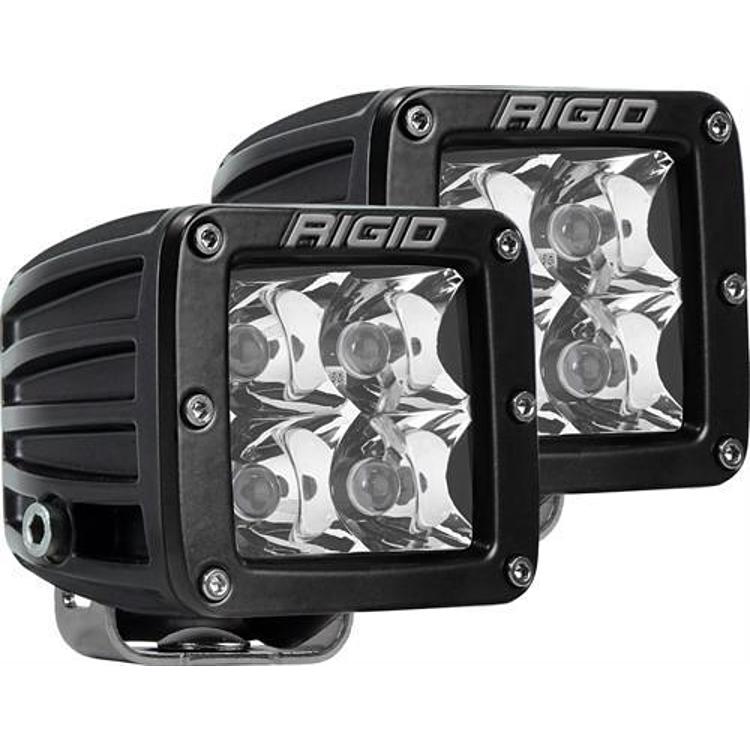

The Rigid Industries D-Series Dually 10 Deg. Spot LED Light is a set of two 3-inch square lights with a 10-degree spot beam. The narrow spot is meant to reach farther down the trail or road, and each light uses four white LEDs behind a hybrid optic.
The pair packs strong output into a compact housing, with a cooling surface larger than many lights of its size. Output is 1568 or 3096 lumens, depending on the version. Each light mounts to a bracket on a flat surface.
Key features
- 10-degree spot beam
- Four white LEDs per light
- Hybrid optic in a square housing
- Surface mount on a bracket
- Clear lens with a black finish
- Sold as a set of two
Aiming a pair of spots
Two matched spot lights work best when they are aimed together. Set both to the same angle so the beams overlap at the distance you need, rather than pointing in two directions. A 10-degree pattern is narrow, so small changes in angle move the spot a long way down the trail. Mark the bracket positions once the aim is right, and tighten the fasteners in a steady sequence so the lights do not shift on rough ground.
Pairing two lights also changes the wiring. Running both through one fused circuit keeps the load simple, but the fuse should be sized for the combined draw of both lights. Check the cable routing so the wires stay away from exhaust heat and moving suspension parts. After the first few trail runs, look over the brackets and lens faces for loose hardware or dust buildup, and clean the lenses when they dull.
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774026942 |
| Series | D-Series Dually |
| Light type | LED light, sold as a set of two |
| Light shape | Square, 3 inches |
| Beam pattern | 10-degree spot |
| LED count | 4 white LEDs per light |
| Output | 1568 or 3096 lumens |
| Mounting | Surface, bracket |
| Lens color | Clear |
| Finish | Black |
Vehicle fitment
It is a universal fit rather than a model built for one vehicle. Because the pair mounts on a bracket surface, the owner picks the mounting spots and aims each light.
Installation notes
Fasten both brackets to solid surfaces, and aim the spot pattern before tightening. Wire the pair through one fused circuit, and check local rules on driving lights before using them on a road vehicle.
What’s included
The set includes two spot lights, each with four white LEDs and a hybrid optic.
