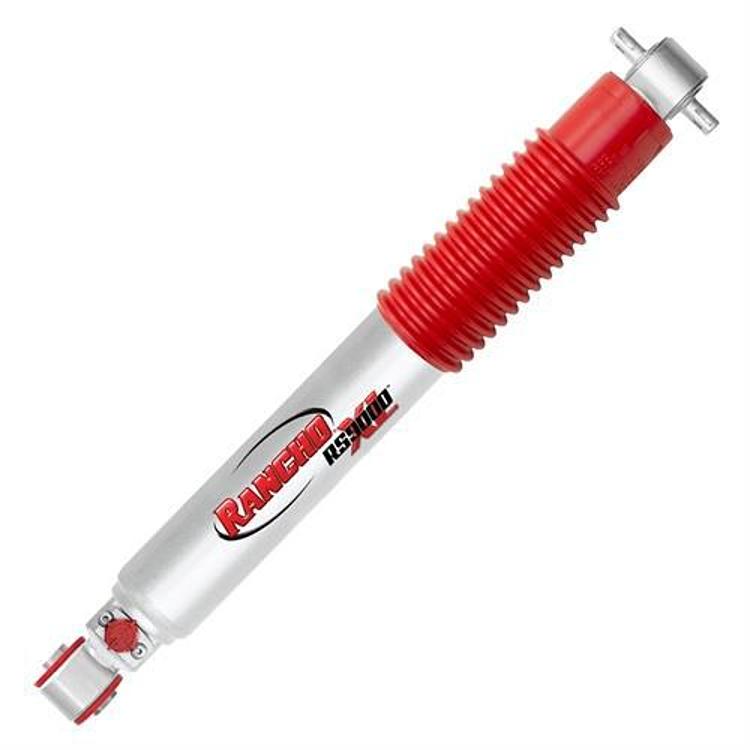

Rancho RS9000XL Series Shock Absorber – RS999332

Rancho

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear RS9000XL Series shock for 2007–2018 Jeep Wrangler JK with a 4 inch rear lift
  • Used with Rancho long arm RS6509B
  • 18mm piston rod with 9-position manual or remote tuning
  • Nitrogen gas charged with protective boot included
  • Part number RS999332

Description

Overview

The Rancho RS999332 is a rear RS9000XL Series shock absorber for 2007–2018 Jeep Wrangler (JK) models with a 4 inch rear lift. Rancho specifies use with its RS6509B long arm, which makes this shock a component of a rear lift setup rather than a stand-alone bolt-in upgrade.

The shock is nitrogen gas charged and uses an 18mm piston rod. A 9-position tuner, manual or remote, adjusts the damping so the rear end can be set for road comfort or for firmer off-road control. A protective boot is included.

Key features

  • Rear position for a 4 inch lift
  • Designed for use with the Rancho long arm RS6509B
  • 18mm diameter piston rod
  • 9-position manual or remote tuning
  • Nitrogen gas charged, gas charged hydraulic design
  • Protective boot included

Long arm and rear lift geometry

A long arm changes the angle and length of the rear control geometry, so the shock has to match that new position. When the arm and shock are used as a matched set, the travel, damping and mounting angles are designed to work together. Mixing parts from different setups can leave the shock too short, too long or set at an odd angle under load.

Before installing, measure the shock’s extended and compressed lengths against the new arm angle, and check the brake lines and driveshaft for clearance. Re-check every bolt after the first few trail runs and inspect the boots and bushings at regular service intervals. Tuning is easiest to judge after the vehicle is back on its wheels and at full ride height.

Specifications

Brand Rancho
Part number RS999332
Shock series RS9000XL Series
Position Rear
Lift height 4 inch (feature list); 3.5 in. (lift field)
Piston rod diameter 18mm
Tuning 9-position manual or remote
Charge Nitrogen gas charged
Fitment type Direct fit
Included Protective boot

Vehicle fitment

The shock fits 2007–2018 Jeep Wrangler (JK) models, including Rubicon, Sahara and Unlimited trims, along with the other covered trims.

Other Jeep models and years are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The feature list gives a 4 inch lift while the lift field reads 3.5 in. Confirm which figure matches your rear suspension and long arm setup before installing.

What’s included

A rear RS9000XL shock absorber with protective boot included.

Not included: the Rancho RS6509B long arm that this shock is used with.

SKU: RANRS999332 Category:

Specification

Shipping weight 7.30 lbs
Package dimensions 24.10 × 3.30 × 3.10 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS999332 need the RS6509B long arm?

The shock is used with the Rancho RS6509B long arm, which is not part of this product. Source the long arm separately if your rear suspension setup calls for it.

What lift does this shock suit?

The feature list gives a 4 inch lift, while the lift height field reads 3.5 in. Confirm which figure matches your rear suspension before ordering, because the two values differ.

Which Jeep fits this rear shock?

It fits 2007–2018 Jeep Wrangler (JK) models, including Rubicon, Sahara and Unlimited trims. Confirm your year and trim before ordering, since other Jeep models are not covered.

Why should the lift and long arm be installed together?

A rear lift changes the suspension geometry, so the long arm and shock are designed to work as a matched set. Installing the shock alone can leave the damping and travel out of step with the new arm angle.

How often should rear lift components be checked?

Re-check all fasteners after the first few trail runs and then at regular service intervals. Look for worn bushings, cracked boots and leaking fluid, and make sure the brake lines and driveshaft still have clearance.
